SEAMLESS Universal dvLED Mounting System
Universal Mounting System for Latching dvLED Displays

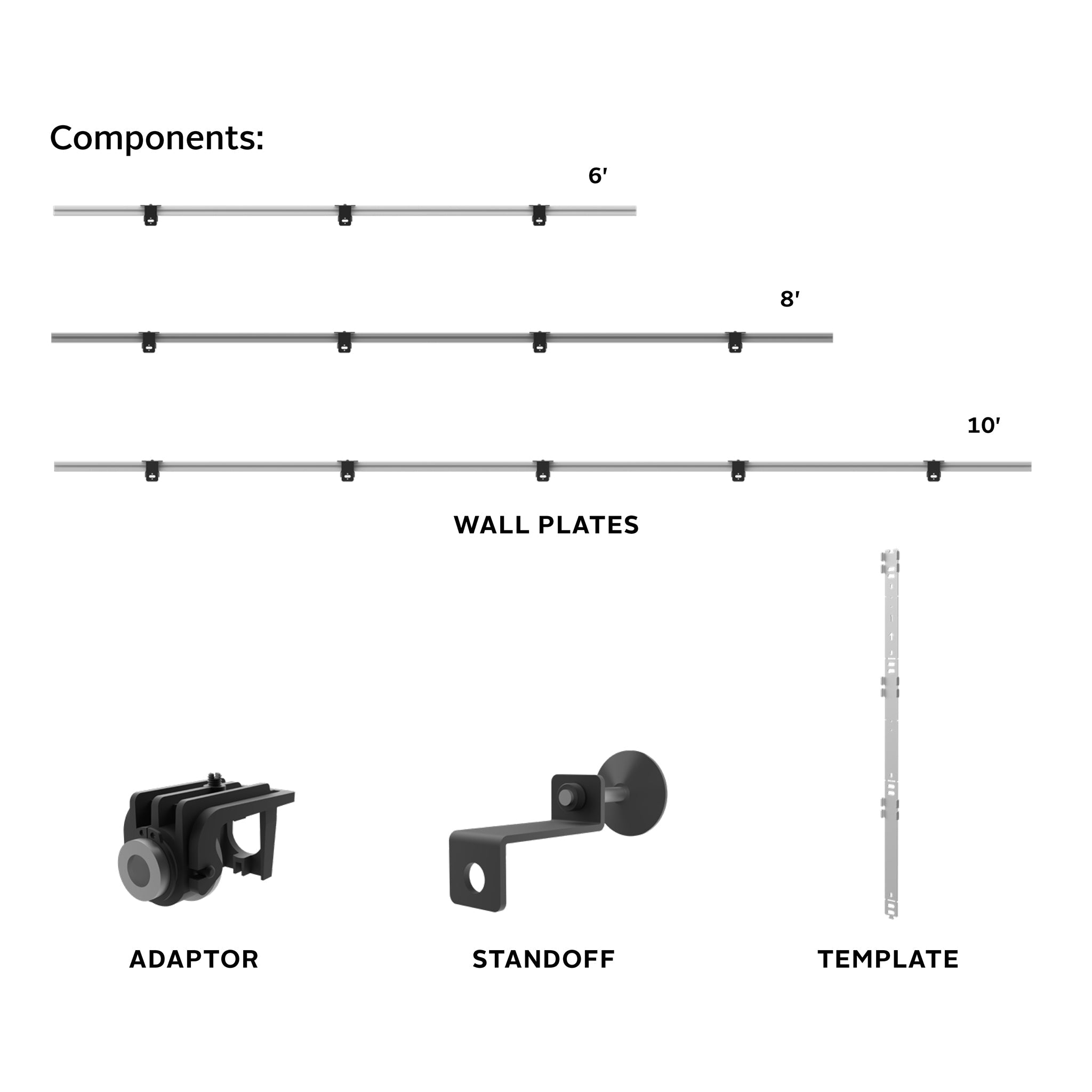

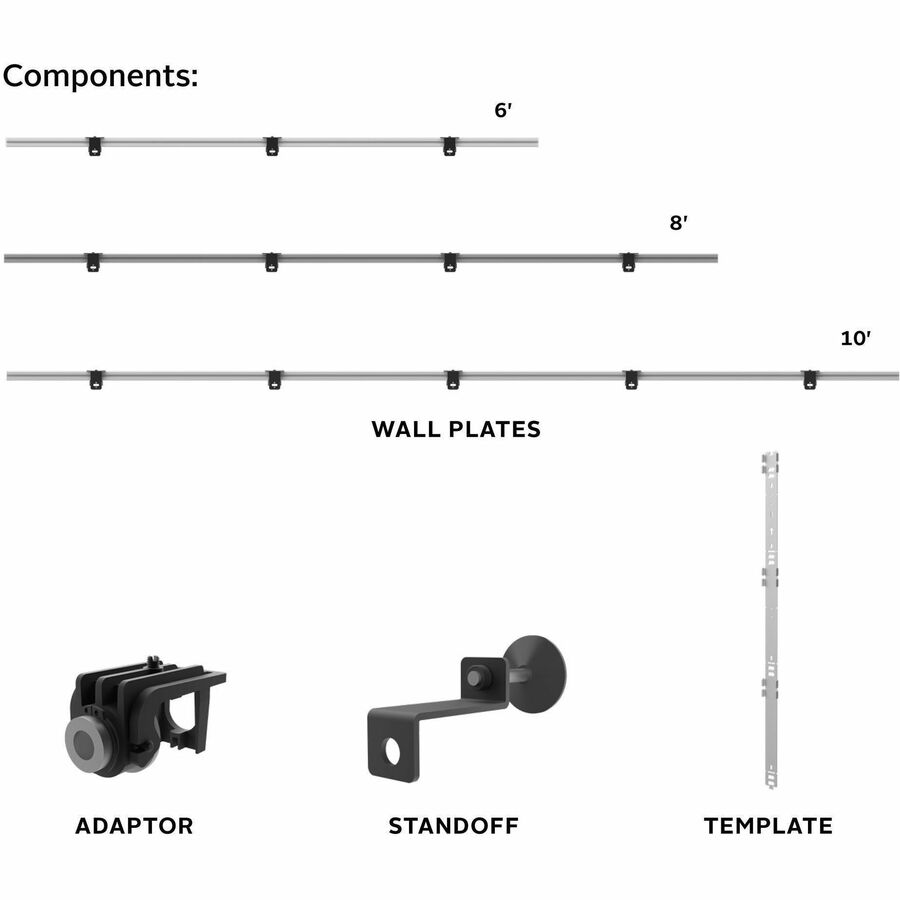

DS-LEDUNV Components

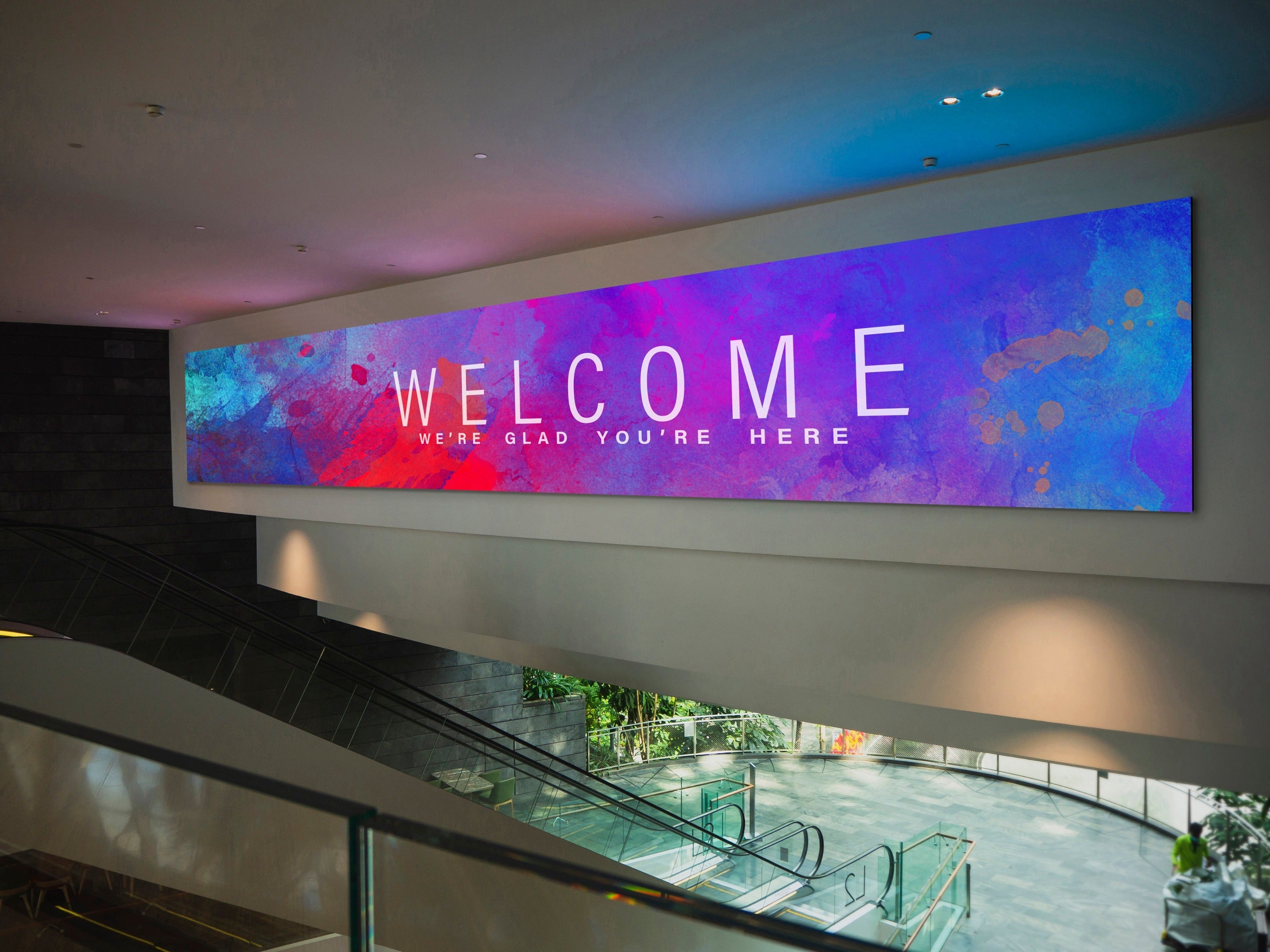

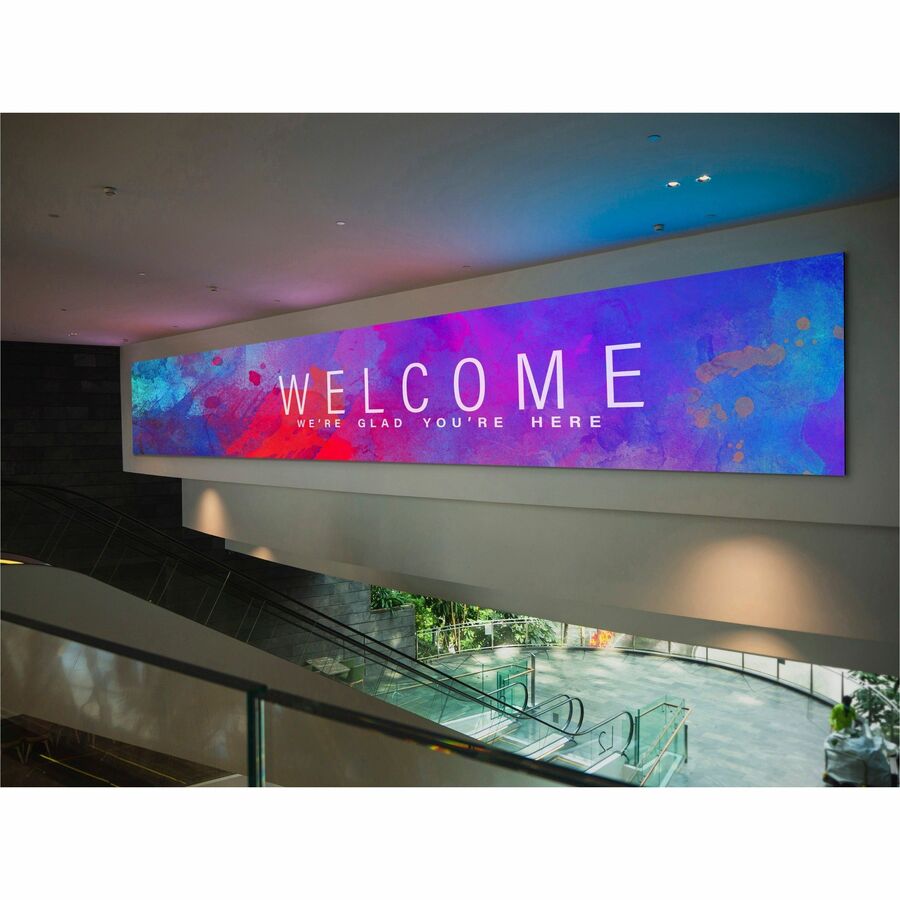

dvLED Video Wall in Airport

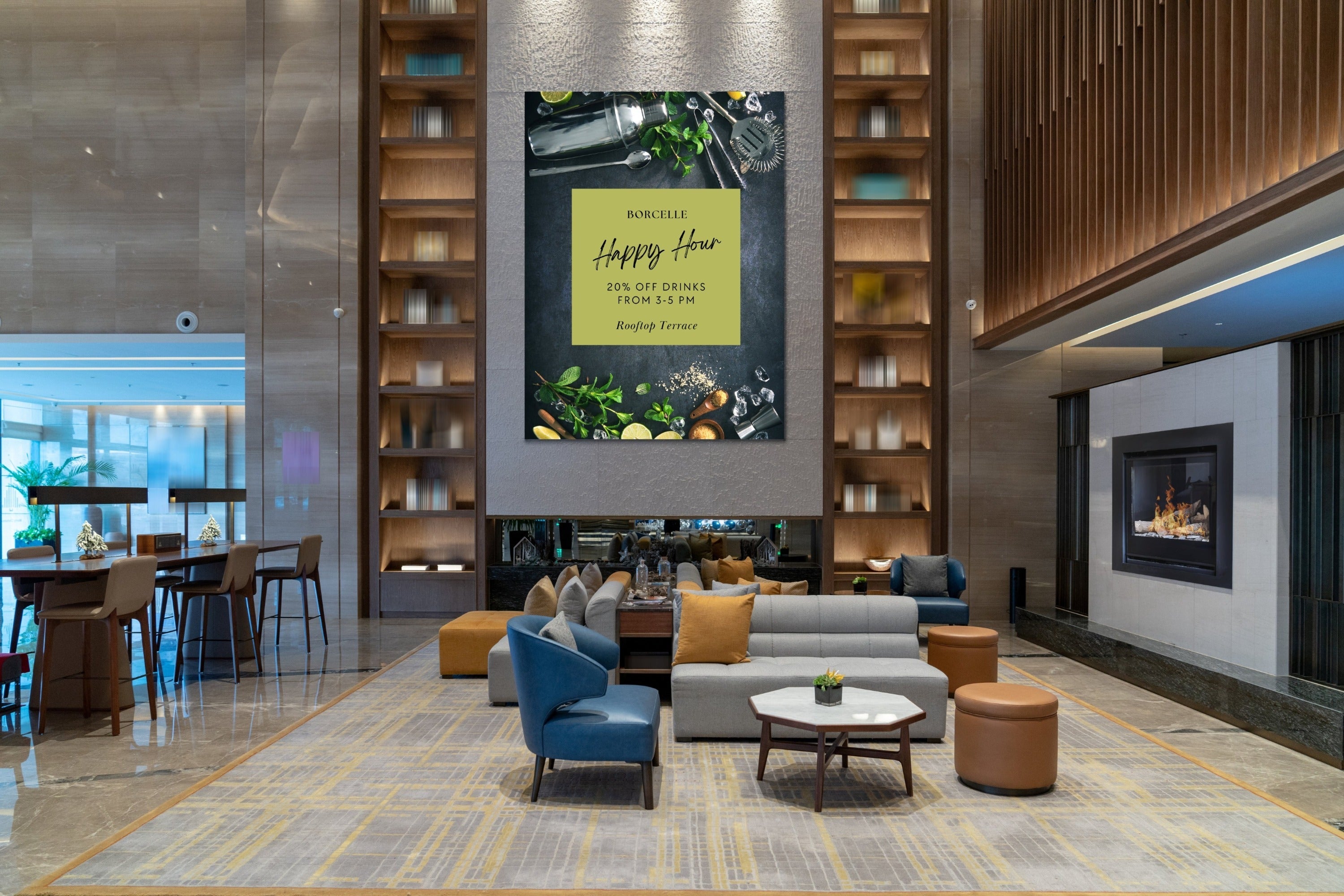

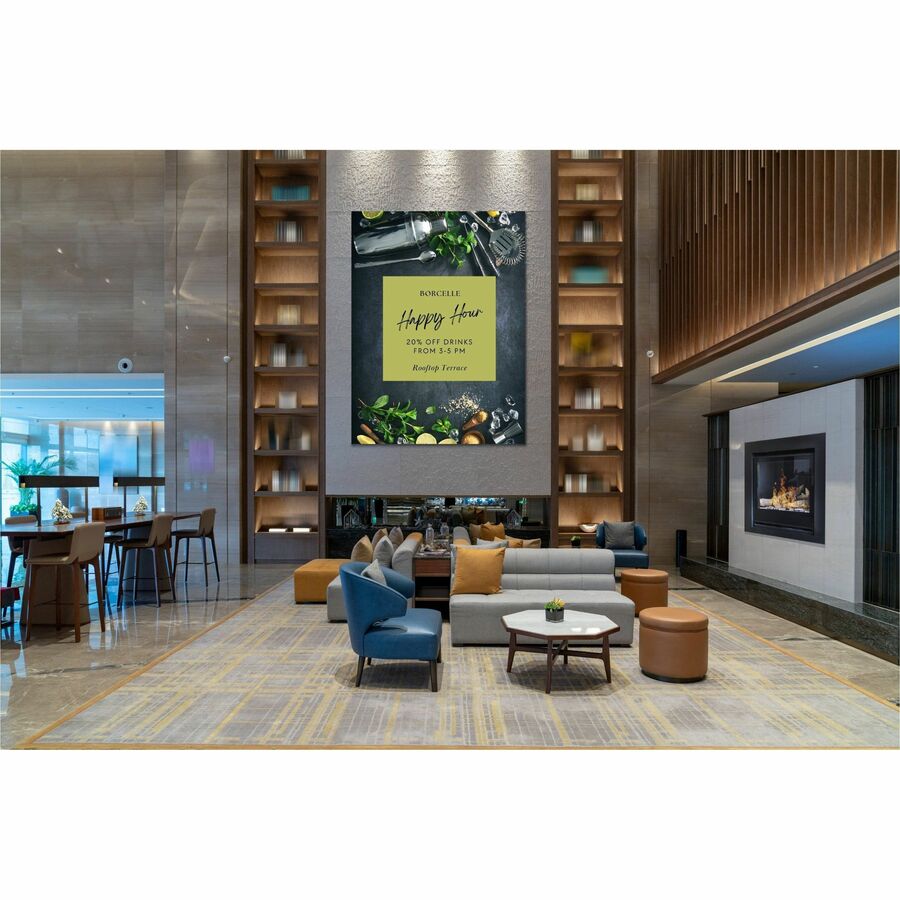

Digital Signage Hotel Lobby

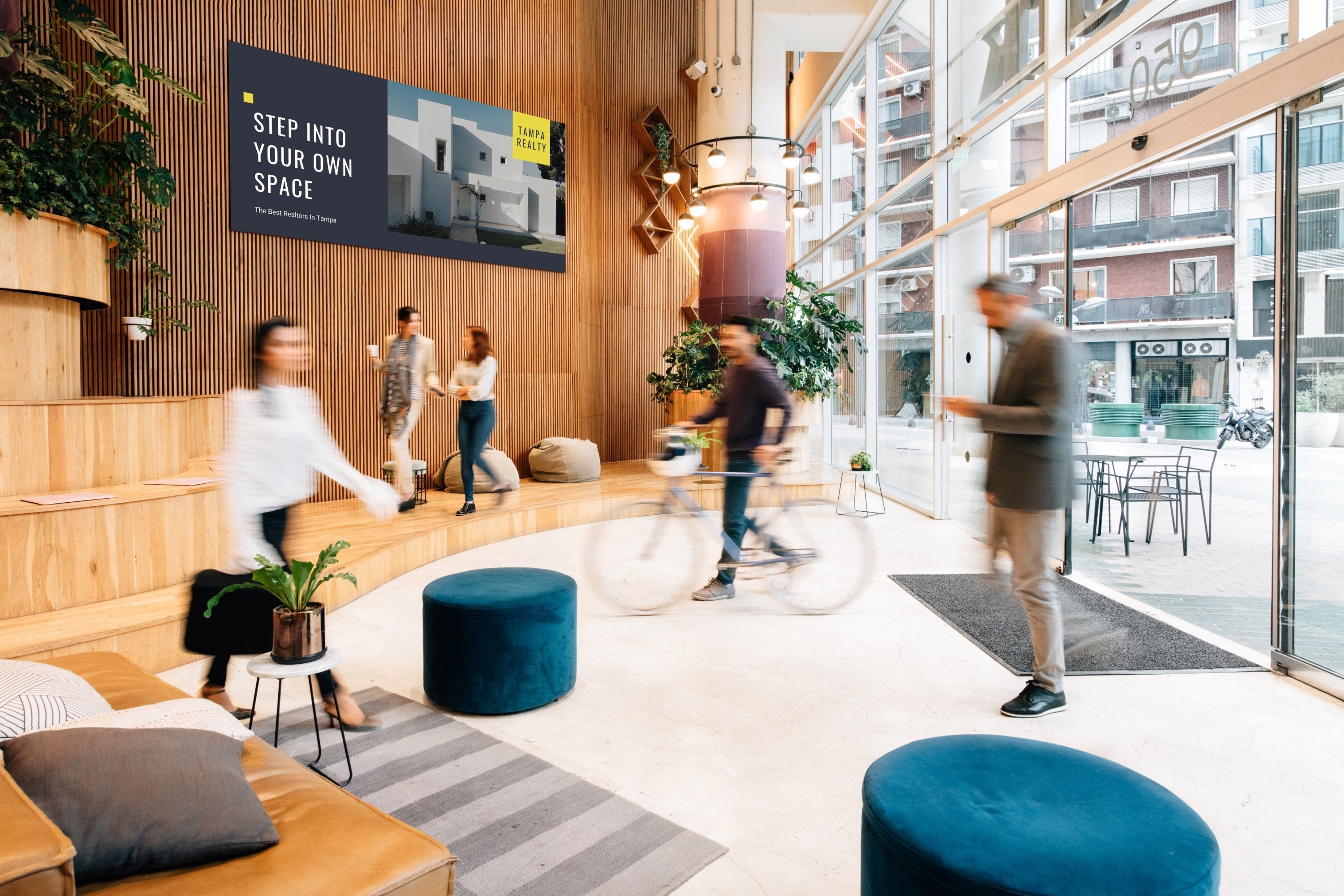

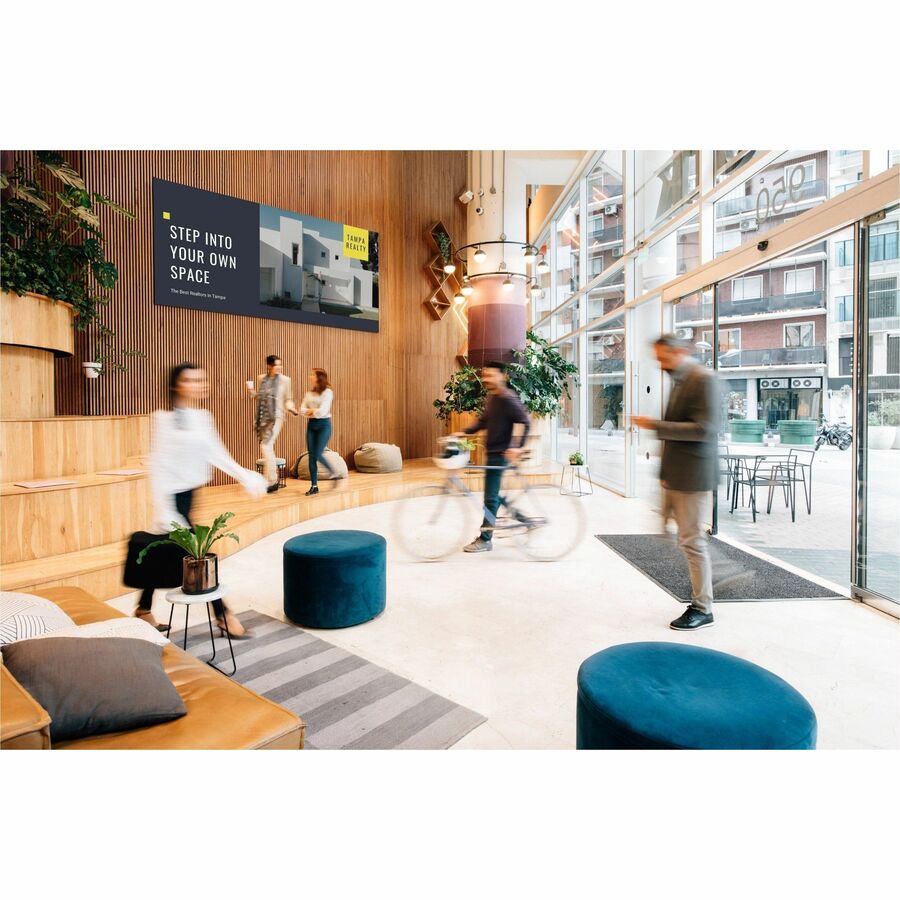

Corporate Lobby with Video Wall

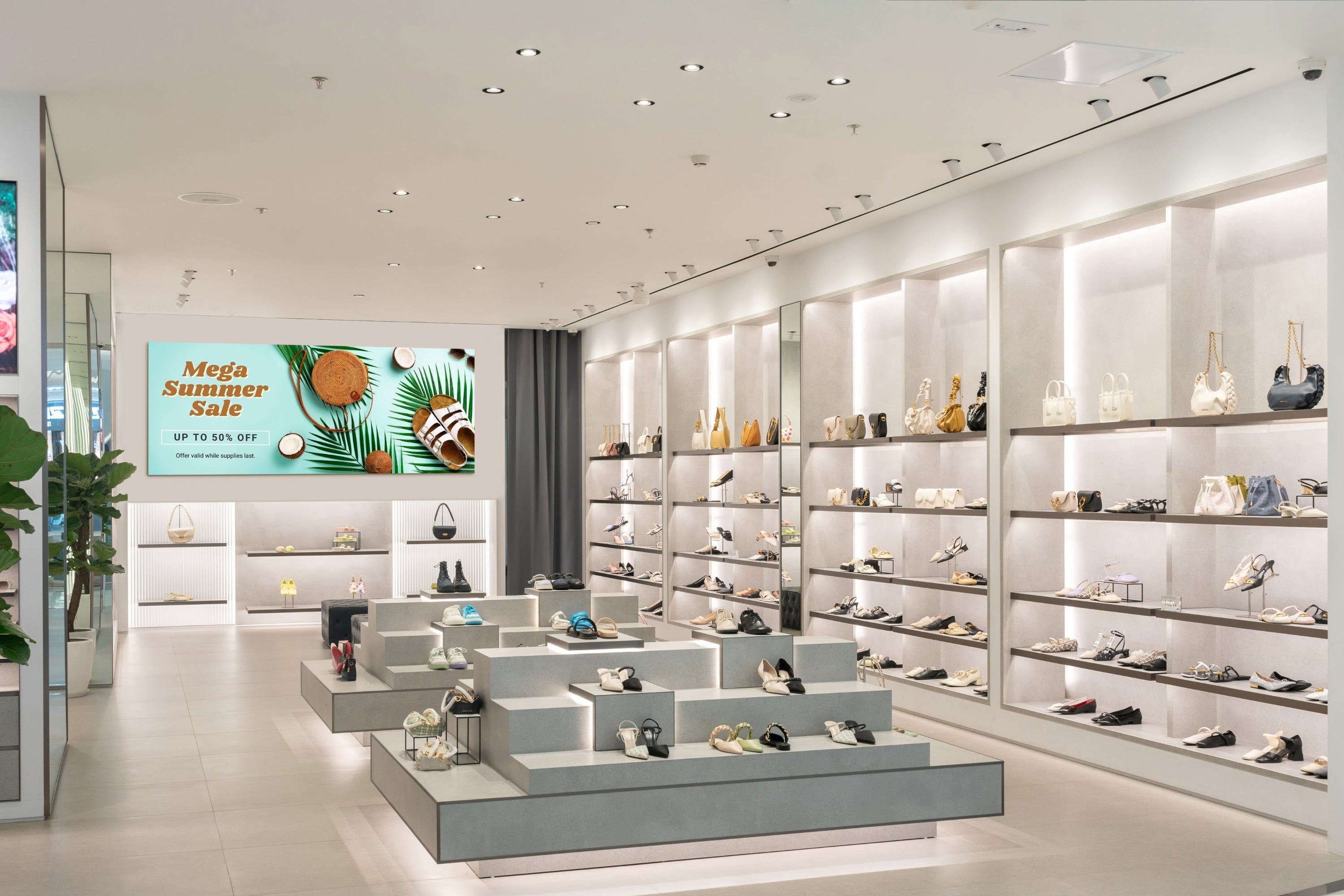

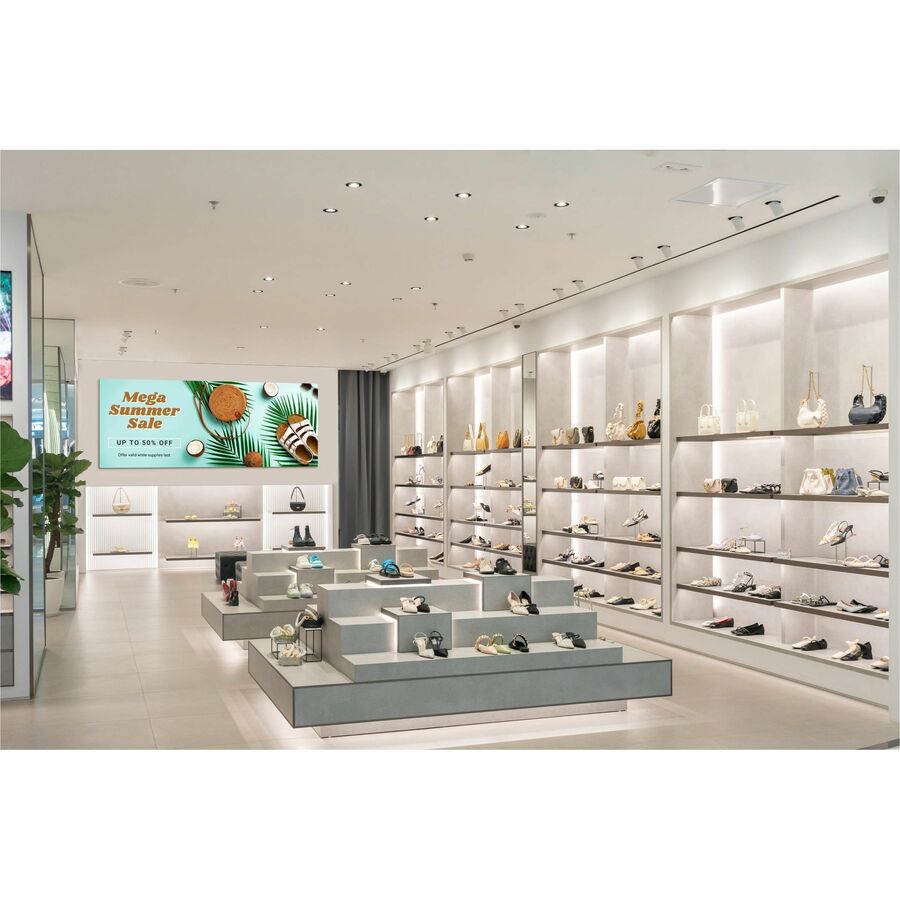

dvLED Video Wall in Retail Store

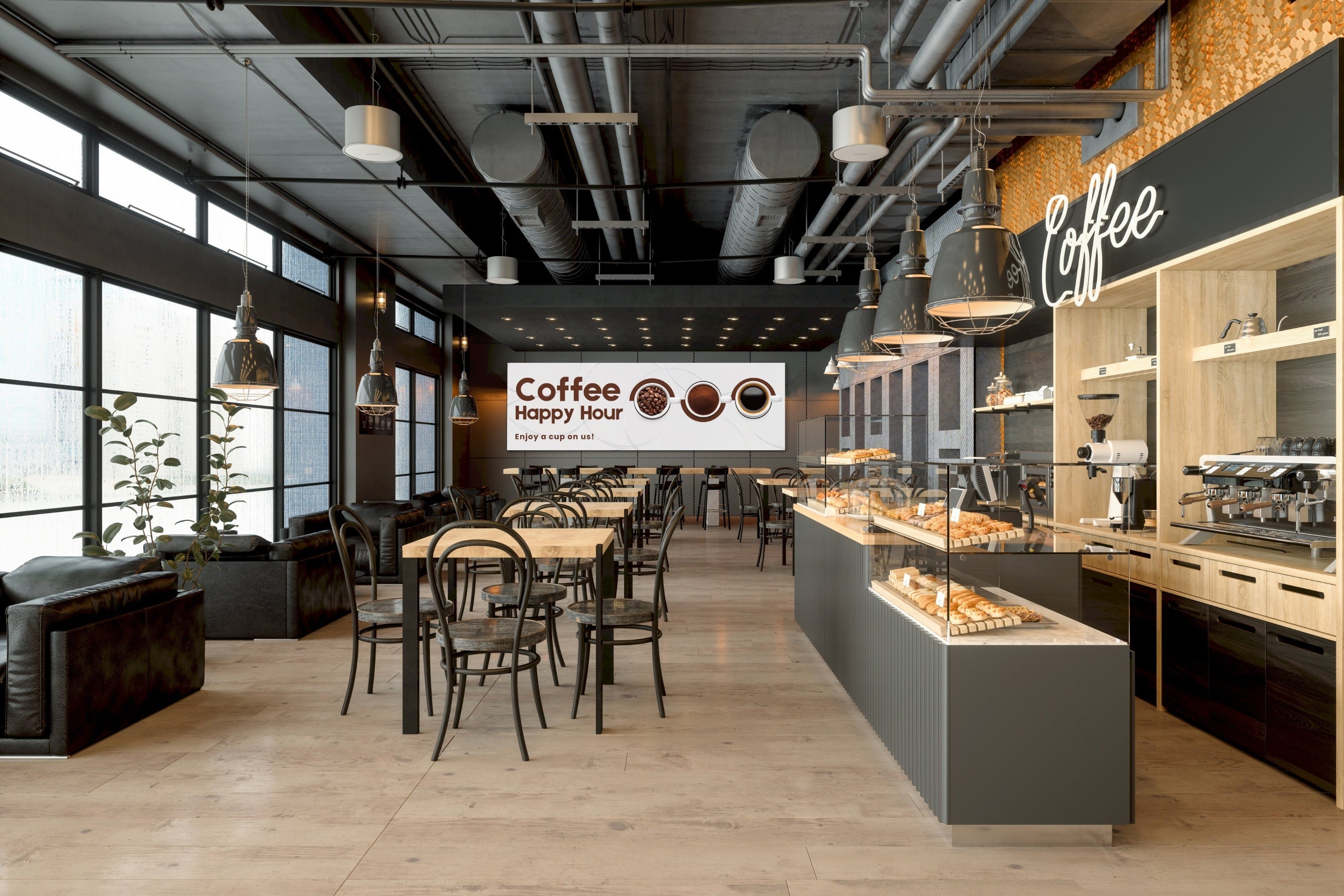

Coffee Shop Digital Signage
Click to EnlargeClick to Enlarge

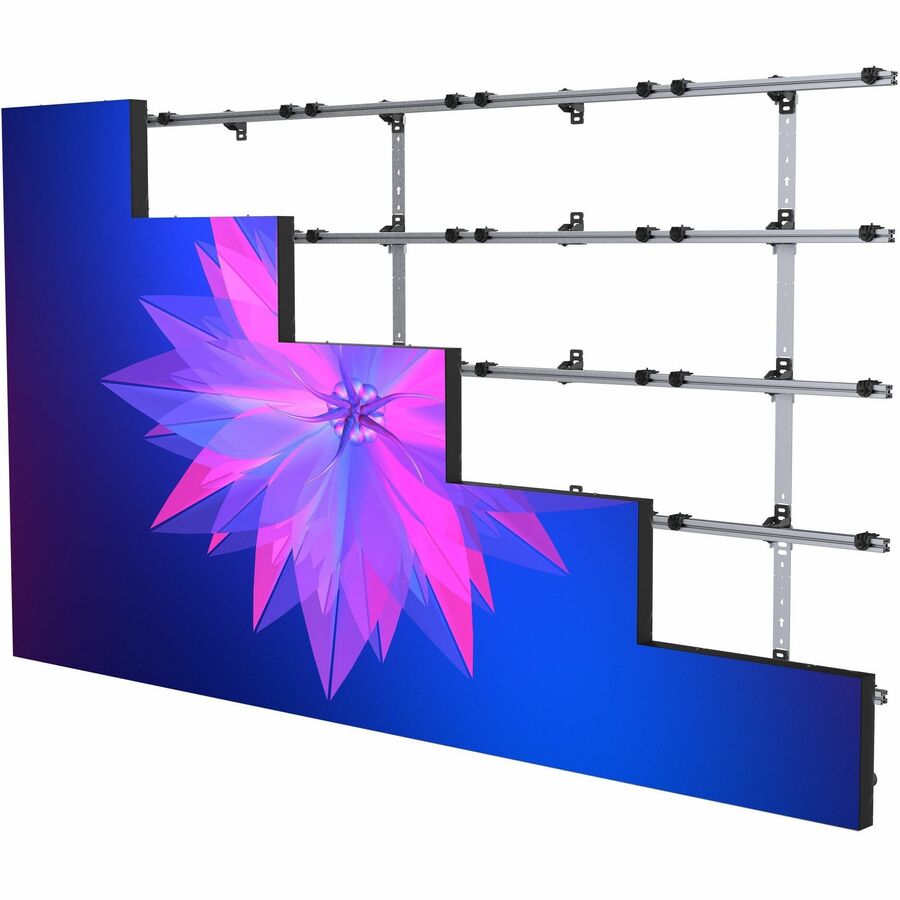

SEAMLESS Kitted Series Universal dvLED Mounting System for Latching Displays

DS-LEDUNV

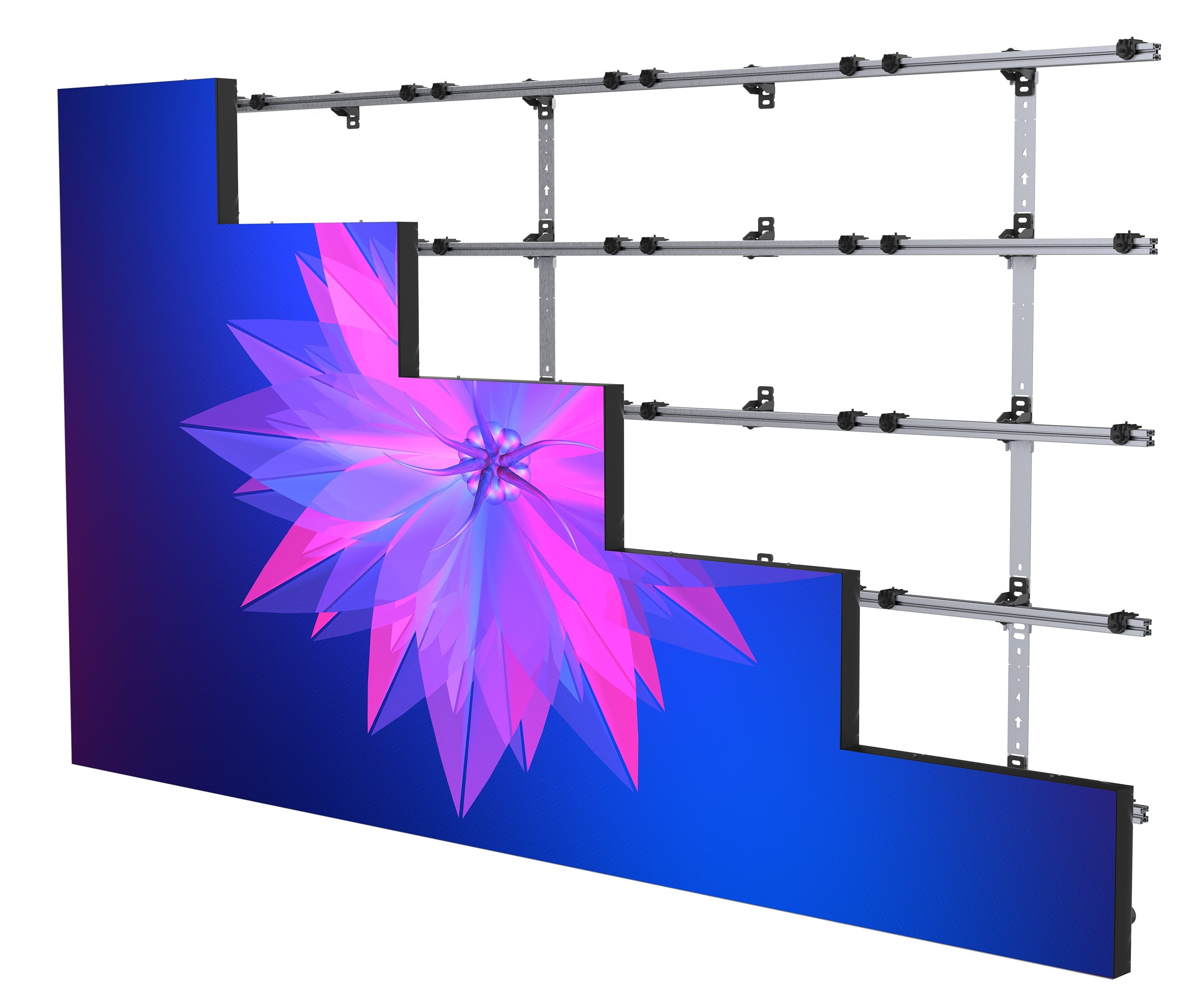

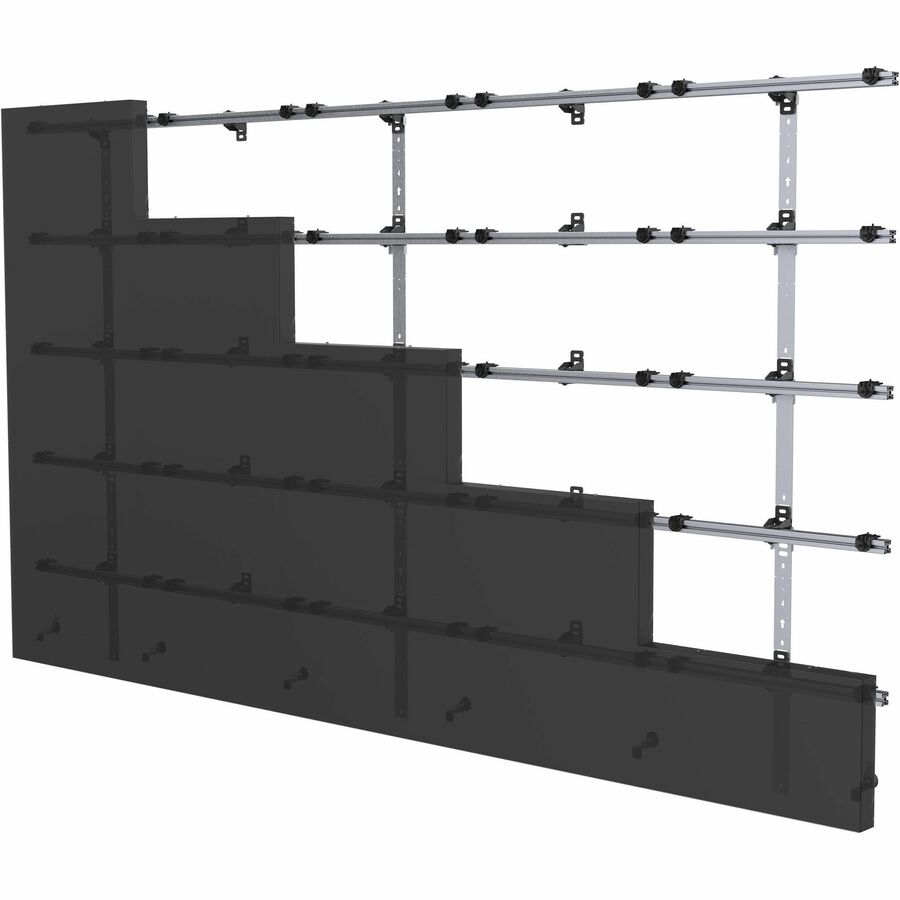

The Peerless-AV® SEAMLESS Kitted Series Universal dvLED Mounting System features a slim, space-saving and versatile design. The DS-LEDUNV is adaptable and supports latching dvLED displays. This kitted solution is also designed and built to your display specifications and then scaled to your video wall configuration. The display adaptors and mount frame provide x, y and z axis adjustments to overcome uneven walls and to assure the video wall remains flat. The lightweight aluminium frame swiftly attaches to the wall with assistance from the installer-friendly wall template, and the quick-connect clamps enable installers to easily attach the displays to the mount frame. Quickly and easily build the perfect dvLED video wall for a corporate reception, retail display, hospitality venue, entertainment setting and much more with Peerless-AV’s Universal dvLED Mounting System.

Peerless-AV also offers start to finish support through the SEAMLESS dvLED Video Wall Integration Program. The Peerless-AV dvLED Solutions Team is there every step of the way to ensure every customer receives SEAMLESS product support and service.

To learn more, peerless-av.com/SEAMLESS.

*Please see the table below in the Showcase tab, or contact a Peerless-AV Sales Representative,for the current list of compatible latching dvLED display models.


Please contact Customer Care for a quote
Contact Us

Please contact Customer Care for a quote
Contact Us
Compare
See installation and related documentation
Showcase

Compatible Latching dvLED Displays

Brands & Series

Acclaim & NX Series

XT Series

WP Series

LSBB, LSCA & LSCB Series

27BDL6000 Series

M27 Series

ISC Series

FA, FE & E Series

VST Series

BH/CH Series

UpanelS & UslimII Series

  FREQUENTLY ASKED QUESTIONS

What is the overall system depth?

The DS-LEDUNV has a depth range of 69mm – 90mm (2.70” – 3.53”). Please add this to the depth of the display. Check carefully to see if the attachment point on the display is recessed. Peerless-AV can supply a line drawing upon request.

Do I need to cut the extrusions to length?

Yes. Each order will arrive with a line drawing. Please reference the drawing for the cut to length dimensions.

How do I determine where the templates should go on the wall?

Each order will arrive with a line drawing that will provide the exact location of the wall template in relation to the top and side of the viewable image.

How do I determine the correct template length?

Each order will arrive with a line drawing that will provide the template length. Please make sure the template modified properly since a new template will be needed if the template is cut too short.

What is the easiest way to create a flat plane across the face of the mount?

The simplest method is to shoot a laser level that is parallel to the wall and a few inches proud of the aluminum extrusions. Set the extrusion at the nominal depth adjustment position and place an object on the face of the extrusion that will sit flat; a cylinder such as a cup works well. Mark the laser line on the object and then move the object to all of the depth adjustment points, adjusting the depth until the laser is on the marked line and the entire mount is on the same plane.

Does Peerless-AV provide installation services?

Yes, Peerless-AV offers consultation services, where we will oversee the mount installation.

How do I find out if my chosen dvLED cabinet is approved?

All approved dvLED cabinets are listed on DS-LEDUNV product page of the Peerless-AV website.

How do I get my dvLED cabinet approved?

Contact your Peerless-AV representative to get an approval process started.
Features
  • Universal design is compatible with a variety of latching dvLED displays
  • Create a seamless video wall capable of overcoming any wall imperfections with X, Y, and Z axis adjustment
  • Included wall template allows installers to quickly and accurately attach the frame to the wall
  • Quick-connect clamps allow installers to quickly and easily attach the displays to the mount frame
  • Open architecture provides ease of cable management
  • Optional Trim Kit Accessory is compatible with most displays (DS-LEDTK Models)
