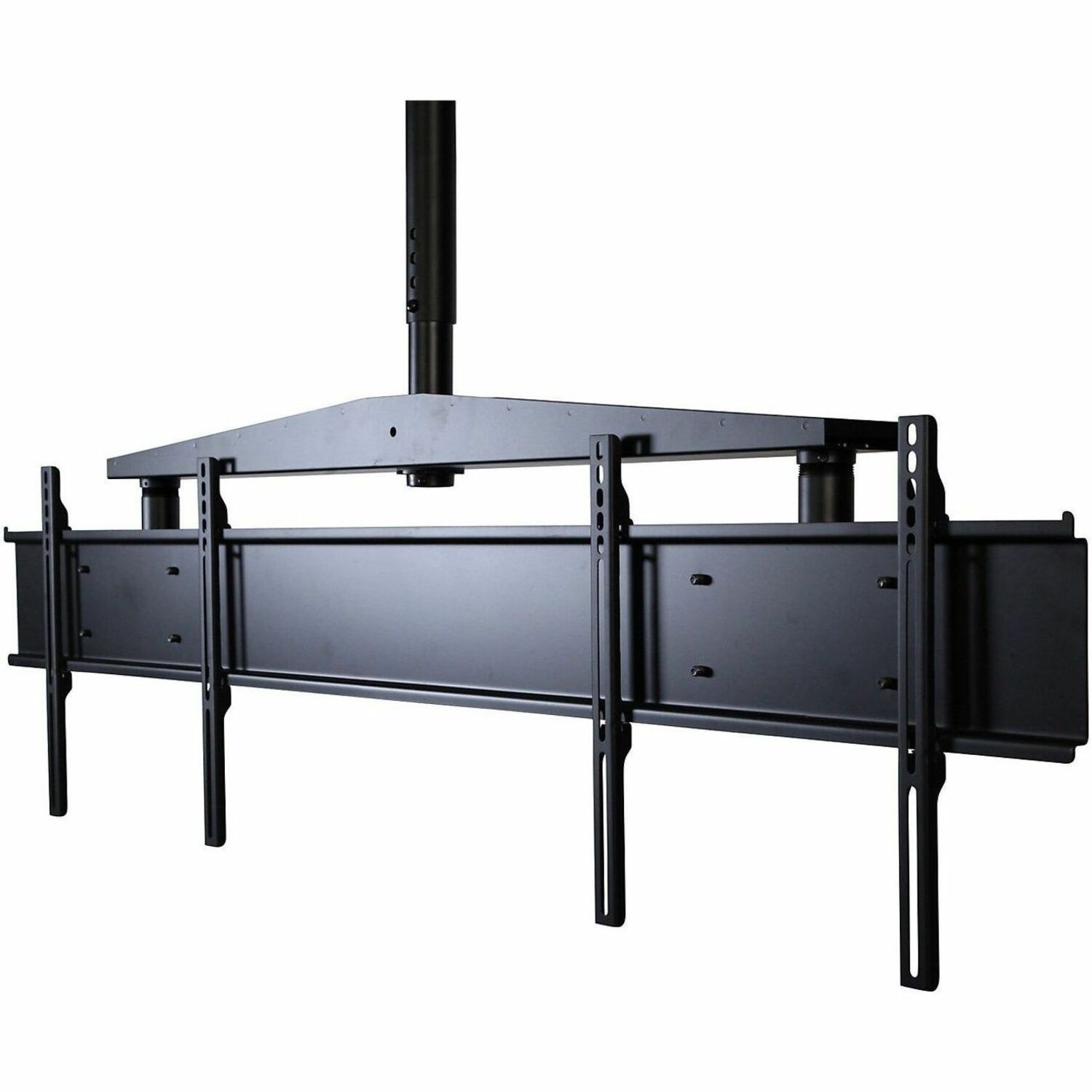

Two separate displays sitting side-by-side can only mean one thing: a win-win situation. The DST94 from Peerless-AV mounts two displays on the same plane resulting in exceptional alignment. Behind the displays, a long plate spans both and the displays are attached with easy-glide brackets to ensure secured placement and ease of adjustability. Installation and adjustment has never been easier, because both displays slide horizontally and tilt up to 2 degrees to ensure the message is placed at its ideal viewing angle. This makes this mounting solution perfect for restaurant menu signage, airport flight information displays or entertainment and department store applications.
General Information | |
|---|---|
| Manufacturer | Peerless Industries, Inc |
| Manufacturer Part Number | DST940 |
| Manufacturer Website Address | http://www.peerless-av.eu.com |
| Brand Name | Peerless-AV® |
| Product Series | DST940 |
| Product Model | DST940 |
| Product Name | Dual Display Ceiling Mount System For 37"-46" Flat Panel Displays |
| Marketing Information | Two separate displays sitting side-by-side can only mean one thing: a win-win situation. The DST94 from Peerless-AV mounts two displays on the same plane resulting in exceptional alignment. Behind the displays, a long plate spans both and the displays are attached with easy-glide brackets to ensure secured placement and ease of adjustability. Installation and adjustment has never been easier, because both displays slide horizontally and tilt up to 2 degrees to ensure the message is placed at its ideal viewing angle. This makes this mounting solution perfect for restaurant menu signage, airport flight information displays or entertainment and department store applications. |
| Packaged Quantity | 1 Unit |
| Product Type | Ceiling Mount |
Product Information | |
|---|---|
| Device Supported | Flat Panel Display |
| Number of Displays Supported | 2 |
| Minimum Load Capacity | 34.02 kg |
| Maximum Load Capacity | 68.04 kg |
| Minimum Screen Size Supported | 37" (93.98 cm) |
| Maximum Screen Size Supported | 46" (116.84 cm) |
| Features |
|
| Mount Pattern | Universal |
| Minimum Tilt Angle | 0° |
| Maximum Tilt Angle | 20° |
| Mount Function | Tilt |
| Mount Surface | Ceiling |
Physical Characteristics | |
|---|---|
| Color Family | Black |
| Product Color | Black |
| Finishing | Powder Coated |
| VESA Mount Compatible | Yes |
| Mounting Pattern | 1650 x 405 |
| Form Factor | Ceiling Mountable |
| Height | 47.09 cm (18.54") |
| Width | 171.45 cm (67.50") |
| Depth | 12.34 cm (4.86") |
| Weight (Approximate) | 23.59 kg |
Miscellaneous | |
|---|---|
| Package Contents |
|
| Application/Usage |
|
| Assembly Required | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Warranty | |
|---|---|
| Limited Warranty | 5 Year |
No accessories to display
DST940
Two separate displays sitting side-by-side can only mean one thing: a win-win situation. The DST94 from Peerless-AV mounts two displays on the same plane resulting in exceptional alignment. Behind the displays, a long plate spans both and the displays are attached with easy-glide brackets to ensure secured placement and ease of adjustability. Installation and adjustment has never been easier, because both displays slide horizontally and tilt up to 2 degrees to ensure the message is placed at its ideal viewing angle. This makes this mounting solution perfect for restaurant menu signage, airport flight information displays or entertainment and department store applications.
No pricing available. Call for Quote.
This display size range is simply a guideline for product selection. Displays larger than the screen size range may still be compatible as long as they fall within the VESA® pattern and max weight of the Peerless-AV® product.
Certifications:
