- Universal mount accommodates 200 x 100 to 600 x 400mm VESA mounting patterns

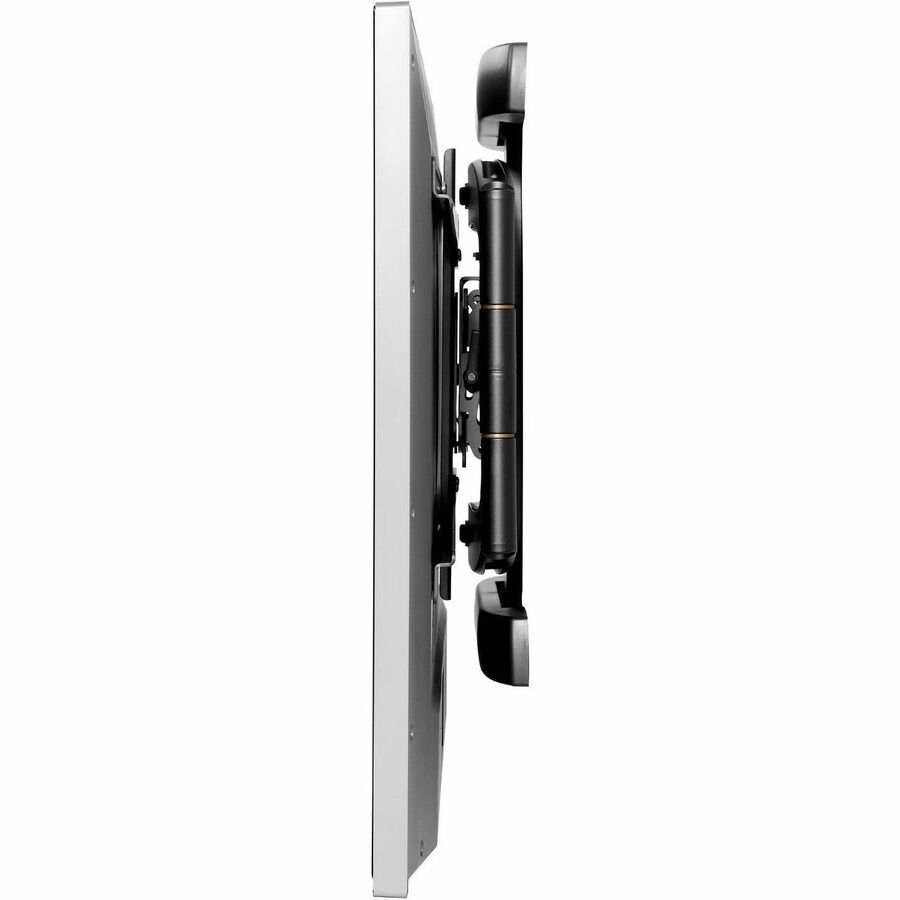

- Retracts to hold display just 3.10" (79mm) from the wall

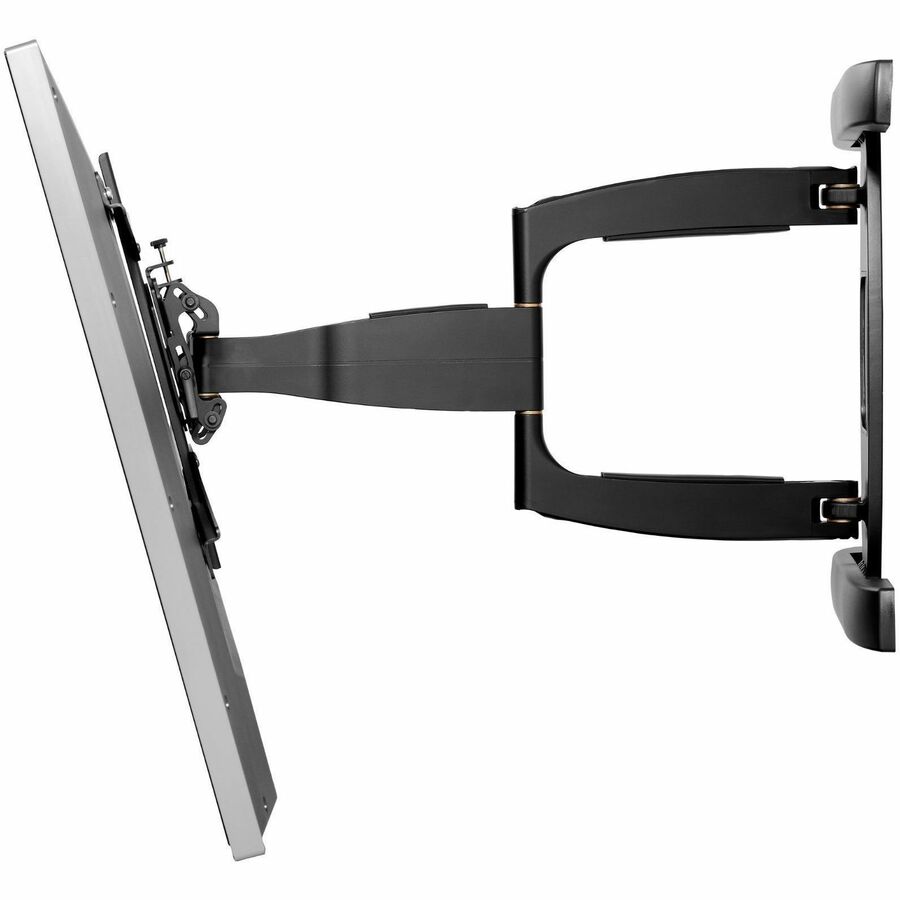

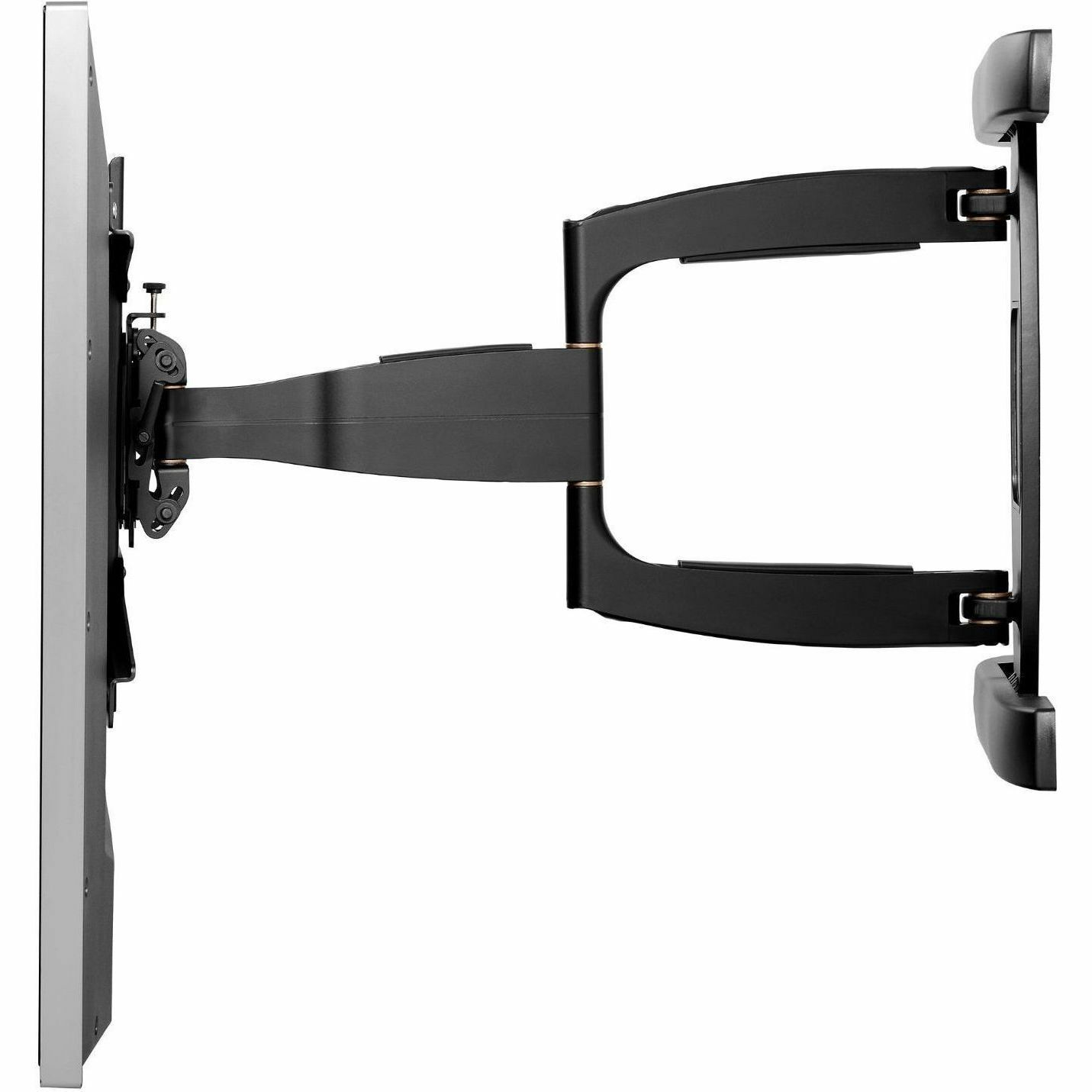

- Extends up to 26.60" (676mm)
- ±90° degrees of pivot allows for perfect display positioning
- Easy leveling ±5° after display installation
- Quick and easy, Hook-and-Hang™ one person installation
- I-shaped adaptor plate helps avoid blocking connections on back of display
- +15°/-5° vertical tilt movement for the ideal viewing angle
- Landscape or Portrait mounting options increases display versatility
- Stylish wall plate covers create a finished look and are easy to install and remove
- Open wall plate design increases electrical and cable management options
- Removable cover for wall plate knock out included
- Includes all necessary wall and display attachment hardware
- Design is UL listed and tested to four times stated load capacity

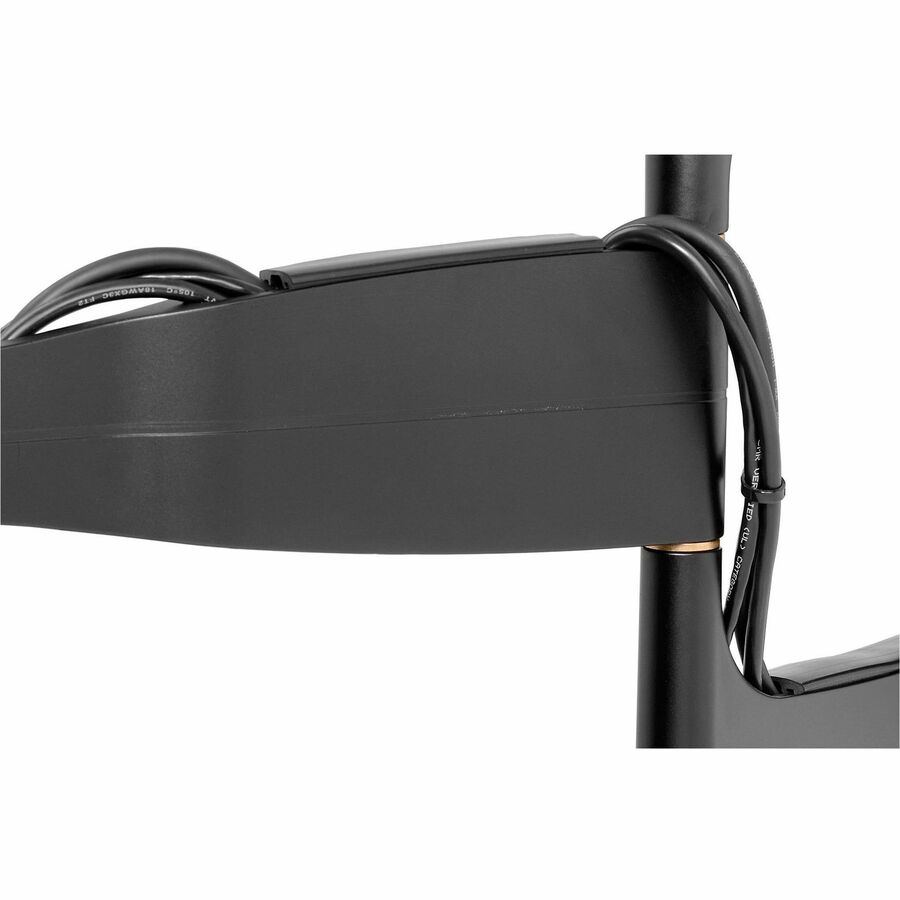

- Integrated cable management protects, contains and conceals cables for a clean, professional installation
- Mounts to wood stud, concrete, cinder or breeze block

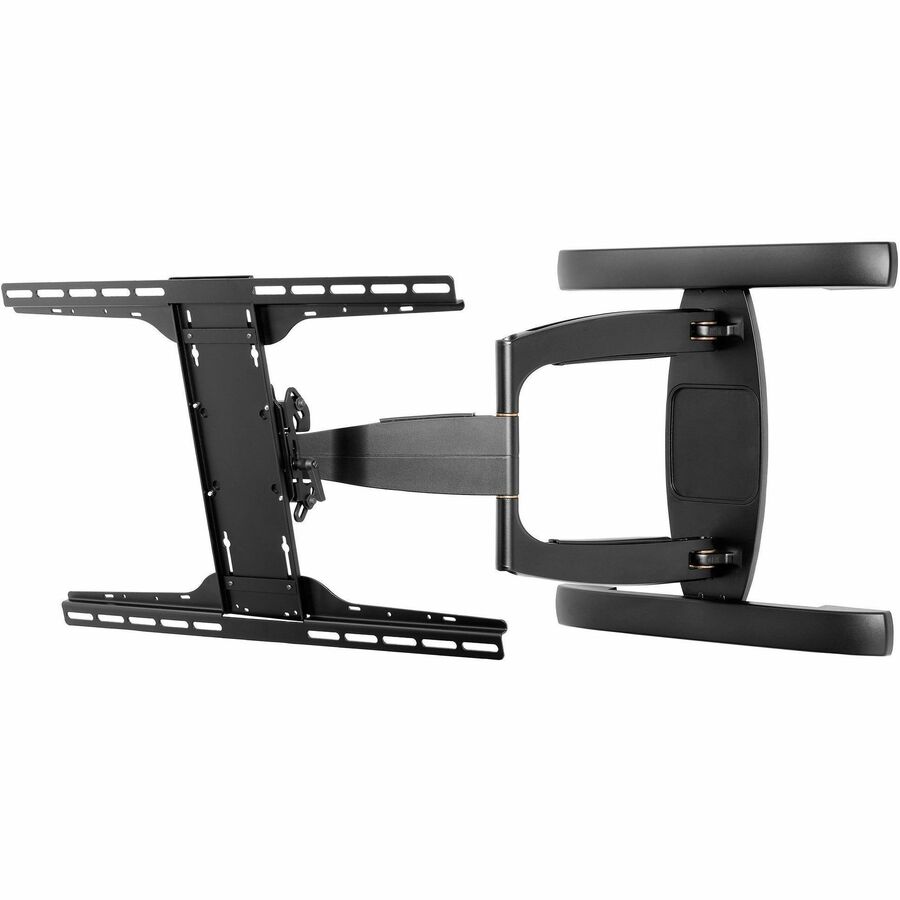

SmartMount® Articulating Wall Arm for 39" to 75" Displays
SA761PU-EUKThe SmartMount® Articulating Wall Arm series offers the most versatile installation features and mounting options. The I-Shaped Adaptor plate’s innovative design helps avoid blocking connections on back of display. Vertical adjustment ability allows for post installation leveling, making it easier than ever to find the perfect display position. With SA761PU, extend the display up to 26.6" (676mm) or fully-retract it to just 3.1" (79mm) from the wall for the perfect viewing position. The display can now simply be installed by a single person with the Hook-and-Hang™ system. One-Touch™ tilt technology offers +15°/-5° vertical tilt movement for the ideal viewing angle. Integrated cable management protects, contains and conceals cables for a clean installation.
This display size range is simply a guideline for product selection. Displays larger than the screen size range may still be compatible as long as they fall within the VESA® pattern and max weight of the Peerless-AV® product.
