Connect with a Peerless-AV® sales representative to review options and determine the right solution for your project.
| dvLED Display Specifications | FHD Model |
|---|---|
| Size | 108" (2400 × 1350 mm) |
| Pixel Pitch | 1.2 mm |
| Resolution | FHD |
| LED Lamp Type | COB |
| Max Brightness | 600 nits |
| Contrast | 12,000:1 |
| Colour Bit | 22 bit |
| Refresh Rate | 3840 Hz |
| Viewing Angle | Horizontal: 178° Vertical: 178° |
| Receiving Card | NS6323A |
| Controller | NovaStar MX20 |
| Operating Temperature Range | -10°C to 45°C (14°F to 113°F) |
| Operating Humidity Range | 10% to 80% |
| Lifespan | 100,000 Hours |
| Input Voltage | 100–240V, 50/60Hz |
| Power Consumption | Average: 369W Maximum: 1102W |
| Colour Gamut | DCI-P3: 99.49% Rec. 709: 100% Rec. 2020: 86.13% |
| Spare Parts Included | Pixel Modules (x4) Receiver Cards (x2) Hub Boards (x2) Power Supplies (x2) Service Tool |
| dvLED Controller Specifications | NOVASTAR MX20 (FHD) |
|---|---|
| Inputs | 2x HDMI v1.3 1x 3G-SDI |
| LED Outputs | 6x 1 Gbps Outputs |
| Optical Fiber Outputs | 2x 10 Gbps |
| Genlock | Yes |
| Bit Rate | 10 bit |
| Control | TCP/IP |
| Loading Capacity | RS232: 2x RJ45 Max Pixels per Output: 650,000 Pixels Total Pixels: 3.9 Million Pixels |
| Maximum Input Resolution | 1920 × 1080 @ 60Hz |
| Max Output Width / Height | 3840 Pixels × 2560 Pixels |
| Built-In Scaling | Custom Pixel to Pixel Snap to Canvas Fill Screen |
| Supported Layers | ~3 Layers |
| Power Input | 100–240V, 50/60Hz |
| Max Power Consumption | 50W |
| Operating Temperature Range | -20°C to 45°C (-4°F to 113°F) |
| Rack Dimensions | 1RU |
| Dimensions | 482.6 × 49.9 × 384 mm (19" × 1.96" × 15.12") |
| Weight | 4.5 kg (9.92 lb) |
| Certifications | CE RoHS FCC IC UL |
| Accessories Included | Power Cord Ethernet Cable HDMI Cable Certificate of Approval |

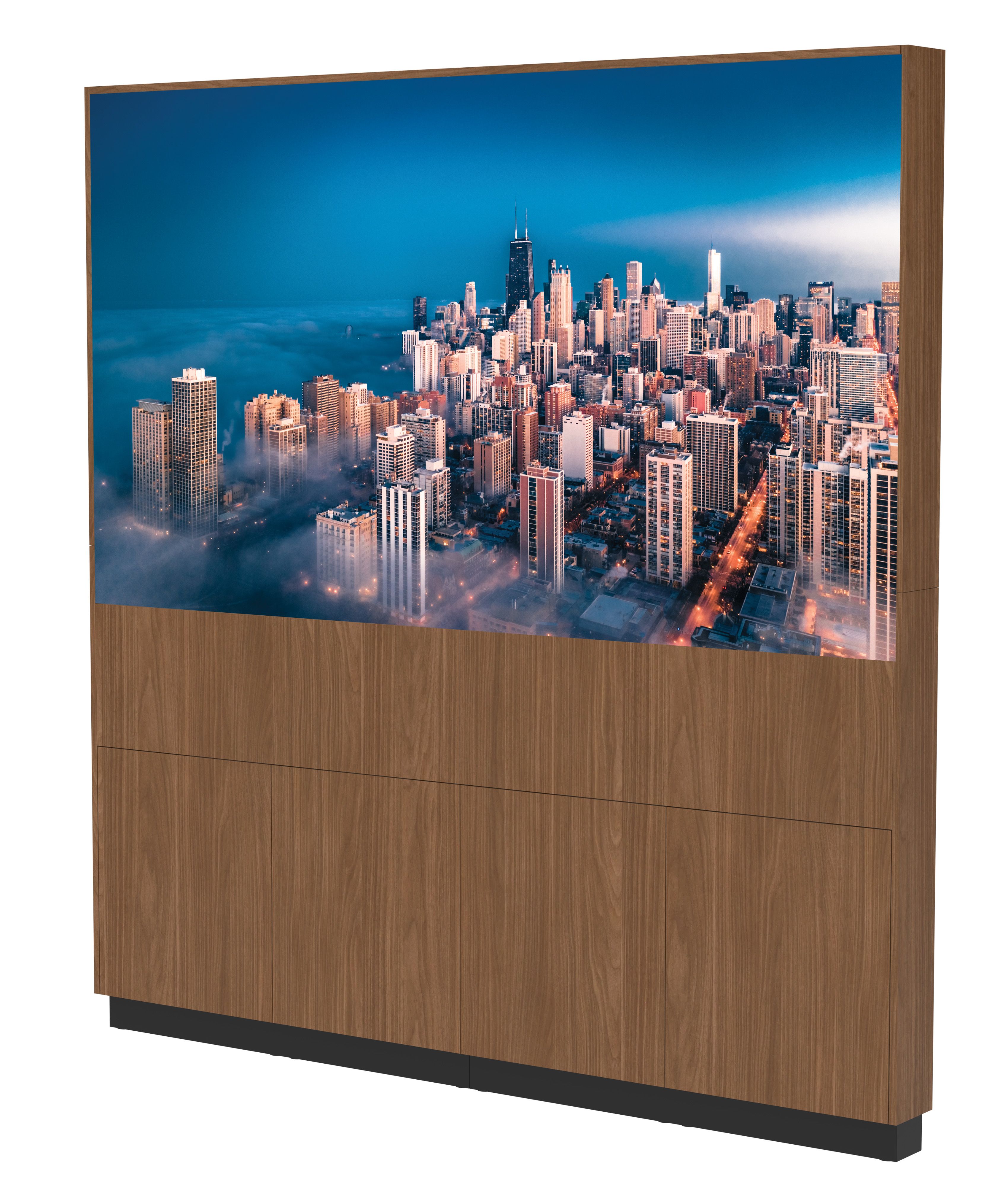

LEDMW-108

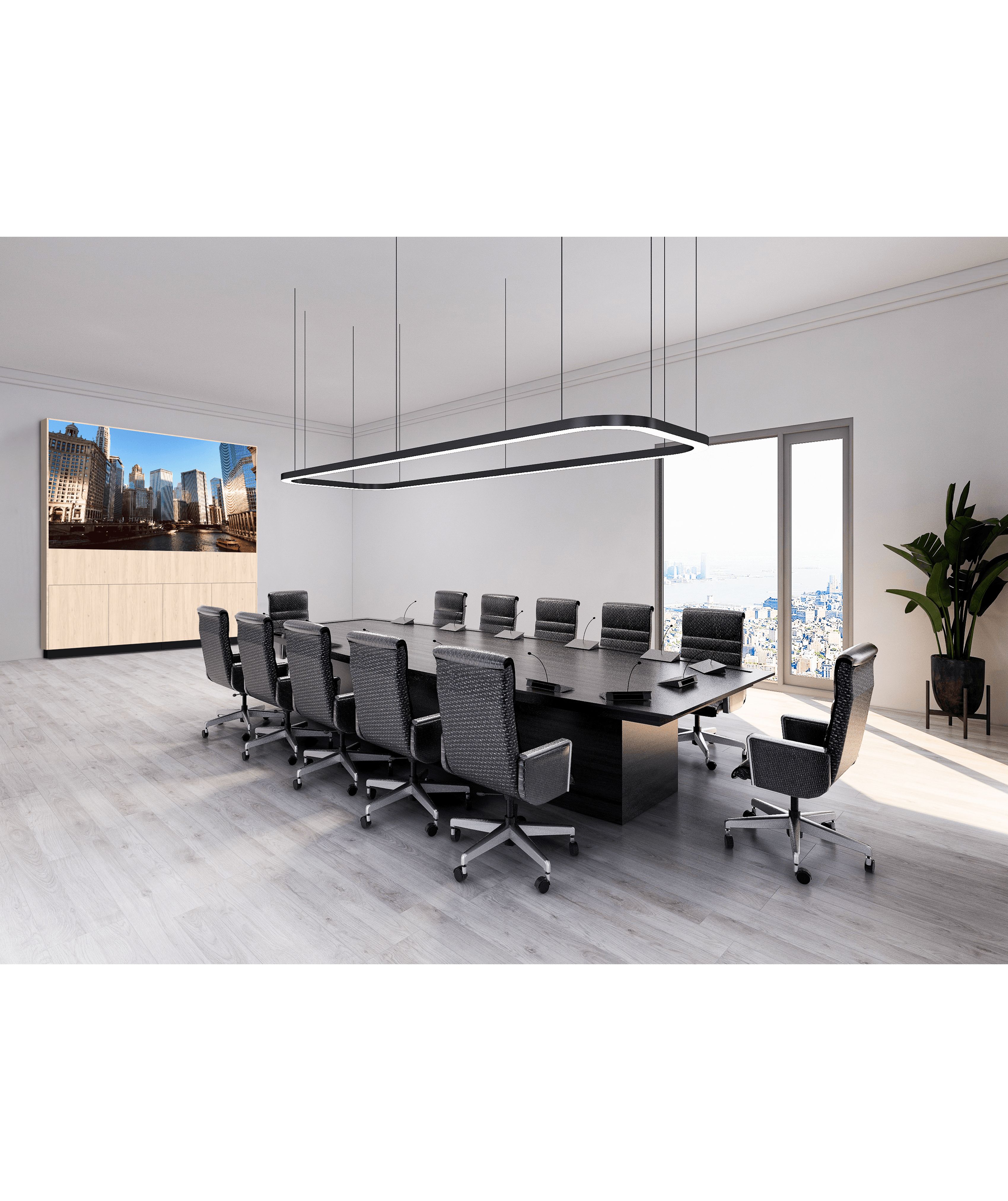

Refinio Media Wall by Peerless-AV® is a refined, all-in-one dvLED display solution designed for high-end executive boardrooms, conference rooms, and training facilities. Combining a FHD COB dvLED display, precision-engineered mounting system, and furniture-grade thermally fused laminate (TFL) cabinetry, Refinio delivers a complete, ready-to-install solution with minimal room preparation. Integrated base cabinetry houses critical AV components for clean, accessible integration – eliminating the need for a separate equipment room – while a wide selection of anti-fingerprint solid colours, and woodgrain finishes ensures lasting durability with a premium aesthetic.
Base Color
Avalible to maximise usable space and keep equipement organised and easily accessible
LEDMW-A2RU
LEDMW-ACCC
LEDMW-ACFX
LEDMW-ACTY
LEDMW-ASHF
