IM760PU
Maximize your living space by installing the display as close to the wall as possible with Peerless-AV's universal In-Wall Mounting solution for up to 71" displays. Installation is quick and easy thanks to the mount's stud-locating tabs that fit the in-wall box snugly between 16" wood stud centers. View the display in its virtually no-profile home position, or extend the arm over 19" to watch it anywhere else within the room.
No pricing available. Call for Quote.
Minimum Screen Size Supported
32" (81.28 cm)
37" (93.98 cm)
42" (106.68 cm)
Maximum Screen Size Supported
71" (180.34 cm)
65" (165.10 cm)
90" (228.60 cm)
Maximum Load Capacity
90.72 kg
36.29 kg
68.04 kg
Mounting Pattern
400 x 400
800 x 400
Features
Certifications:
Maximize your living space by installing the display as close to the wall as possible with Peerless-AV's universal In-Wall Mounting solution for up to 71" displays. Installation is quick and easy thanks to the mount's stud-locating tabs that fit the in-wall box snugly between 16" wood stud centers. View the display in its virtually no-profile home position, or extend the arm over 19" to watch it anywhere else within the room.
General Information | |
|---|---|
| Manufacturer | Peerless Industries, Inc |
| Manufacturer Part Number | IM760PU |
| Manufacturer Website Address | http://www.peerless-av.eu.com |
| Brand Name | Peerless-AV® |
| Product Series | IM760PU |
| Product Model | IM760PU |

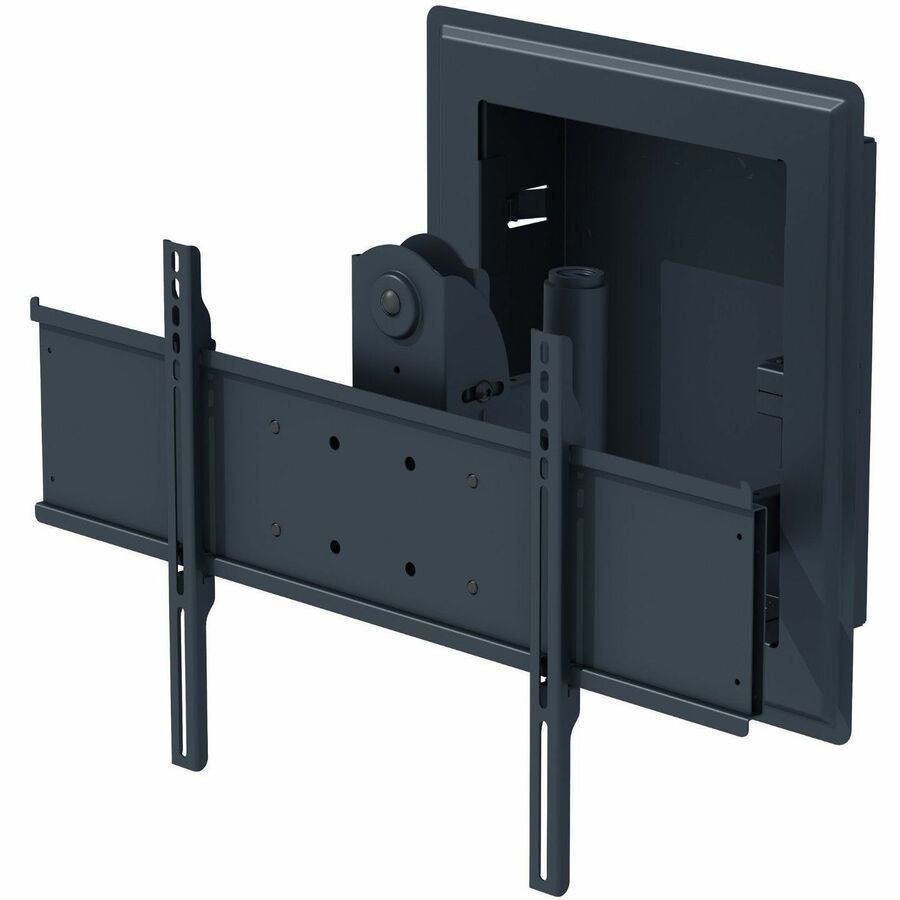

| Product Name | In-Wall Mount for 32" to 71" Displays |
| Marketing Information | Maximize your living space by installing the display as close to the wall as possible with Peerless-AV's universal In-Wall Mounting solution for up to 71" displays. Installation is quick and easy thanks to the mount's stud-locating tabs that fit the in-wall box snugly between 16" wood stud centers. View the display in its virtually no-profile home position, or extend the arm over 19" to watch it anywhere else within the room. |
| Packaged Quantity | 1 |
| Product Type | Wall Mount |
Product Information | |
|---|---|
| Device Supported |
|
| Maximum Load Capacity | 90.72 kg |
| Minimum Screen Size Supported | 32" (81.28 cm) |
| Maximum Screen Size Supported | 71" (180.34 cm) |
| Minimum Adjustable Depth | 14.60 cm (5.75") |
| Maximum Adjustable Depth | 56.52 cm (22.25") |
| Features |
|
| Mount Pattern Compatibility Type | Dedicated |
| Minimum Swivel Angle | -45° |
Physical Characteristics | |
|---|---|
| Color Family | Black |
| Product Color | Black |
| Finishing | Fused Epoxy |
| VESA Mount Compatible | Yes |
| Mounting Pattern |
|
| Form Factor | Wall Mountable |
| Height | 55.52 cm (21.86") |
| Width | 78.10 cm (30.75") |
| Depth | 56.52 cm (22.25") |
| Weight (Approximate) | |
Miscellaneous | |
|---|---|
| Package Contents |
|
| Application/Usage | Wood Stud |
| Indoor/Outdoor | Indoor |
| Certifications & Standards | RoHS, TAA, VESA |
| Manufacturer Product Class | In Wall Mount |
| Assembly Required | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Warranty | |
|---|---|
| Limited Warranty | 5 Year |
| 45° |
| Mount Function | Cable Management |
|---|
| Mount Surface | Wall |
|---|
| Durability | Scratch Resistant |
|---|
