MOD-FPP2KIT200-B
The Peerless-AV Modular Mounts Line features a full range of products that can fulfill multiple requirements from a limited number of SKUs. With the universality of the components, configure your own perfect custom flat-panel display or projector mounting solution for any application. The Modular Mount Line was developed with the professional AV installer in mind. Designed around a 2" (50mm) diameter pole, the line is ideal for new projects as well as for upgrading existing installations. The MOD-FPP2KIT200(-B) is a full featured kit that takes the guess work out of what components are needed to create the perfect flat panel pedestal mount.
No pricing available. Call for Quote.
Product Datasheet
Product Name

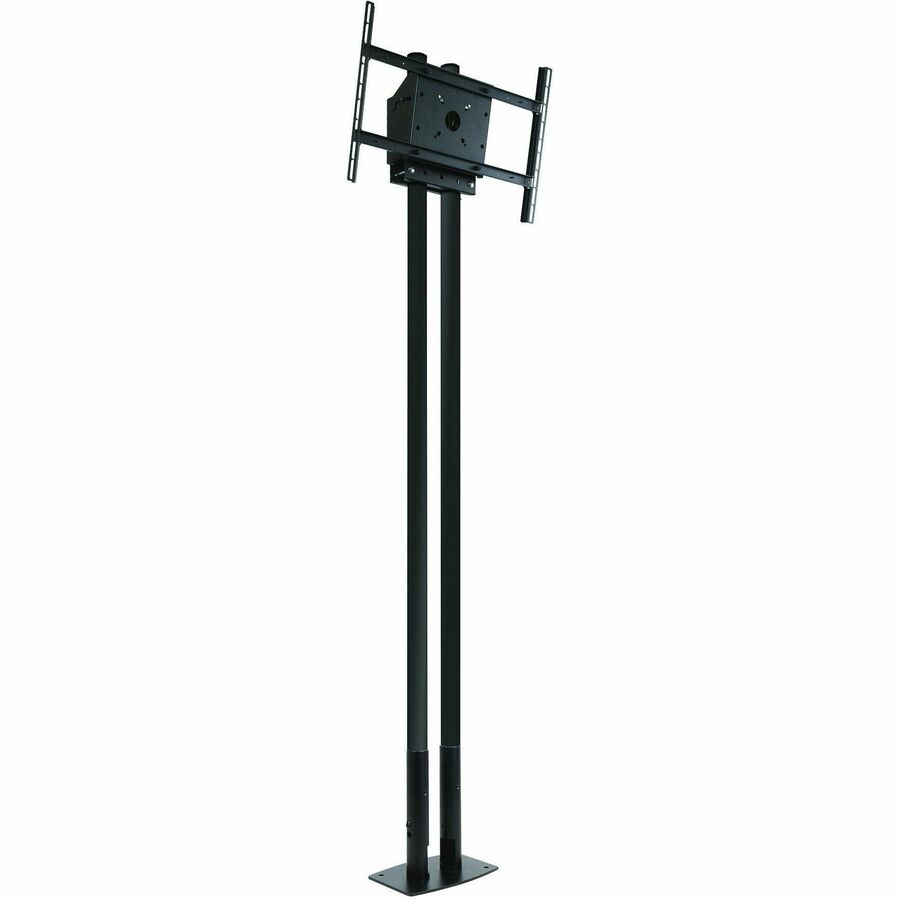

Modular Series Dual Pole Free Standing Kit for 46" to 90" Displays
Peerless-AV® Modular Series Dual-Pole Free Standing Floor Plate For wood or concrete floors
Floor Window Display Mount for Samsung OM46N-D Double-Sided Display
Peerless-AV® Floor Window Display Mount
Modular Series Dual Pole Free Standing Kit for 46" to 90" Displays
Modular Dual Pole Floor to Wall Mount Kit for 46" to 90" Displays
Modular Dual Pole Ceiling Mount Kit for 46" to 90" Displays
Modular Dual Pole Floor to Wall Mount Kit for 46" to 90" Displays
Modular Dual Pole Ceiling Mount Kit for 46" to 90" Displays
Minimum Screen Size Supported
46" (116.84 cm)
46" (116.84 cm)
-
-
46" (116.84 cm)
46" (116.84 cm)
46" (116.84 cm)
46" (116.84 cm)
46" (116.84 cm)
Maximum Screen Size Supported
90" (228.60 cm)
90" (228.60 cm)
46" (116.84 cm)
55" (139.70 cm)
90" (228.60 cm)
90" (228.60 cm)
90" (228.60 cm)
90" (228.60 cm)
90" (228.60 cm)
Maximum Load Capacity
382.83 kg
191.42 kg
45.36 kg
45.36 kg
382.83 kg
287.12 kg
191.42 kg
287.12 kg
191.42 kg
Mounting Pattern
600 x 400
-
-
-
600 x 400
600 x 400
600 x 400
600 x 400
600 x 400
Features
Easy to Apply
Easy to Install
Certifications:
The Peerless-AV Modular Mounts Line features a full range of products that can fulfill multiple requirements from a limited number of SKUs. With the universality of the components, configure your own perfect custom flat-panel display or projector mounting solution for any application. The Modular Mount Line was developed with the professional AV installer in mind. Designed around a 2" (50mm) diameter pole, the line is ideal for new projects as well as for upgrading existing installations. The MOD-FPP2KIT200(-B) is a full featured kit that takes the guess work out of what components are needed to create the perfect flat panel pedestal mount.
General Information | |
|---|---|
| Manufacturer | Peerless Industries, Inc |
| Manufacturer Part Number | MOD-FPP2KIT200-B |
| Manufacturer Website Address | http://www.peerless-av.eu.com |
| Brand Name | Peerless-AV® |
| Product Line | Modular |
| Product Series | MOD-FPP2KIT200-B |
| Product Model | MOD-FPP2KIT200-B |
| Product Name | Modular Series Dual Pole Free Standing Kit for 46" to 90" Displays |
| Marketing Information | The Peerless-AV Modular Mounts Line features a full range of products that can fulfill multiple requirements from a limited number of SKUs. With the universality of the components, configure your own perfect custom flat-panel display or projector mounting solution for any application. The Modular Mount Line was developed with the professional AV installer in mind. Designed around a 2" (50mm) diameter pole, the line is ideal for new projects as well as for upgrading existing installations. The MOD-FPP2KIT200(-B) is a full featured kit that takes the guess work out of what components are needed to create the perfect flat panel pedestal mount. |
| Packaged Quantity | 1 Unit |
| Product Type | Mounting Pedestal |
Product Information | |
|---|---|
| Device Supported |
|
| Number of Displays Supported | 4 |
| Minimum Load Capacity | 95.71 kg |
| Maximum Load Capacity | 382.83 kg |
| Minimum Screen Size Supported | 46" (116.84 cm) |
| Maximum Screen Size Supported | 90" (228.60 cm) |
| Features |
|
| Minimum Tilt Angle | -5° |
| Maximum Tilt Angle | 20° |
| Mount Function | |
Physical Characteristics | |
|---|---|
| Color Family | Black |
| Product Color | Black |
| Finishing | Powder Coated |
| VESA Mount Compatible | Yes |
| Mounting Pattern | 600 x 400 |
| Minimum Mounting Pattern | 200 x 100 |
| Form Factor | Floor |
| Height | 225.25 cm (88.68") |
| Width | 62.41 cm (24.57") |
| Depth | 19.99 cm (7.87") |
Miscellaneous | |
|---|---|
| Package Contents |
|
| Application/Usage |
|
| Indoor/Outdoor | Indoor |
| Certifications & Standards | RoHS, TAA |
| Manufacturer Product Class |
|
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Warranty | |
|---|---|
| Limited Warranty | 5 Year |
|
| Mount Surface | Floor |
|---|
| Weight (Approximate) |
|---|
| 20.87 kg |
