PLCM-2-UNL

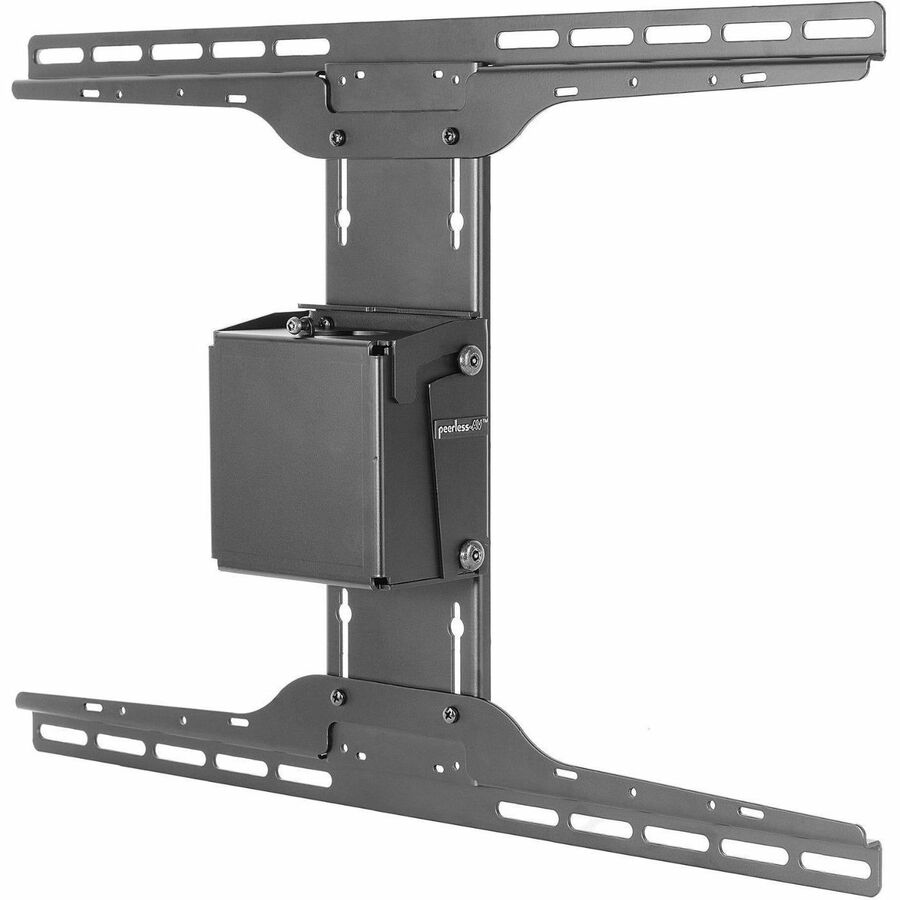

The SmartMount® PLCM-2-UNL Ceiling Mount utilize a 1.5" NPT extension pipe for versatility, support, and connection. The 1.5" NPT threaded pipe makes it simple to customize each mount to your specific application. The PLCM-2-UNL kit combines the PLP-UNL Universal I-Shaped Adaptor plate and the PLCM-2 tilt box, to deliver display mounting patterns of up to 600 x 400mm. When combined with Peerless-AV® ceiling plates and columns, it provides the perfect combination for flat panel ceiling mounting in sports facilities, airports, lobbies, or retail environments.
No pricing available. Call for Quote.
Product Name
SmartMount® Ceiling Mount with I-Shaped Adaptor and Tilt Box for 32" to 90" Displays
Peerless-AV® SmartMount™ Universal Ceiling Mount For 32" to 90" Displays
SmartMount Universal Ceiling Mount for 32'' to 90'' Displays
Ceiling Mount Tilt Boxes for up to 90" Displays
Minimum Screen Size Supported
32" (81.28 cm)
32" (81.28 cm)
32" (81.28 cm)
-
Maximum Screen Size Supported
90" (228.60 cm)
90" (228.60 cm)
90" (228.60 cm)
90" (228.60 cm)
Maximum Load Capacity
68.04 kg
68.04 kg
68.04 kg
68.04 kg
Mounting Pattern
600 x 400
-
-
Features
Certifications:
The SmartMount® PLCM-2-UNL Ceiling Mount utilize a 1.5" NPT extension pipe for versatility, support, and connection. The 1.5" NPT threaded pipe makes it simple to customize each mount to your specific application. The PLCM-2-UNL kit combines the PLP-UNL Universal I-Shaped Adaptor plate and the PLCM-2 tilt box, to deliver display mounting patterns of up to 600 x 400mm. When combined with Peerless-AV® ceiling plates and columns, it provides the perfect combination for flat panel ceiling mounting in sports facilities, airports, lobbies, or retail environments.
General Information | |
|---|---|
| Manufacturer | Peerless Industries, Inc |
| Manufacturer Part Number | PLCM-2-UNL |
| Manufacturer Website Address | http://www.peerless-av.eu.com |
| Brand Name | SmartMount® |
| Product Series | PLCM-2-UNL |
| Product Model | PLCM-2-UNL |
| Product Name | PLCM-2-UNL Ceiling Mount |
| Marketing Information | The SmartMount® PLCM-2-UNL Ceiling Mount utilize a 1.5" NPT extension pipe for versatility, support, and connection. The 1.5" NPT threaded pipe makes it simple to customize each mount to your specific application. The PLCM-2-UNL kit combines the PLP-UNL Universal I-Shaped Adaptor plate and the PLCM-2 tilt box, to deliver display mounting patterns of up to 600 x 400mm. When combined with Peerless-AV® ceiling plates and columns, it provides the perfect combination for flat panel ceiling mounting in sports facilities, airports, lobbies, or retail environments. |
| Packaged Quantity | 1 Unit |
| Product Type | Ceiling Mount |
Product Information | |
|---|---|
| Device Supported | Flat Panel Display |
| Maximum Load Capacity | 68.04 kg |
| Minimum Screen Size Supported | 32" (81.28 cm) |
| Maximum Screen Size Supported | 90" (228.60 cm) |
| Features |
|
| Orientation | Landscape/Portrait |
| Mount Pattern Compatibility Type | Universal |
| Minimum Tilt Angle | -5° |
| Maximum Tilt Angle | 20° |
| Maximum Swivel Angle | |
Physical Characteristics | |
|---|---|
| Color Family | Black |
| Product Color | Black |
| Finishing | Powder Coated |
| VESA Mount Compatible | Yes |
| Mounting Pattern | 600 x 400 |
| Minimum Mounting Pattern | 100 x 100 |
| Form Factor | Ceiling Mountable |
| Height | 42.55 cm (16.75") |
| Width | 61.93 cm (24.38") |
| Depth | 10.26 cm (4.04") |
Miscellaneous | |
|---|---|
| Package Contents |
|
| Application/Usage |
|
| Indoor/Outdoor | Indoor |
| Certifications & Standards | TAA, UL |
| Manufacturer Product Class | Ceiling Mount |
| Assembly Required | Yes |
| TAA Compliant | Yes |
| UL Listed | Yes |
| Environmental Compliance | |
Warranty | |
|---|---|
| Limited Warranty | 5 Year |
| 360° |
| Mount Function |
|
|---|
| Mount Surface | Ceiling |
|---|
| Weight (Approximate) |
|---|
| 3.58 kg |
