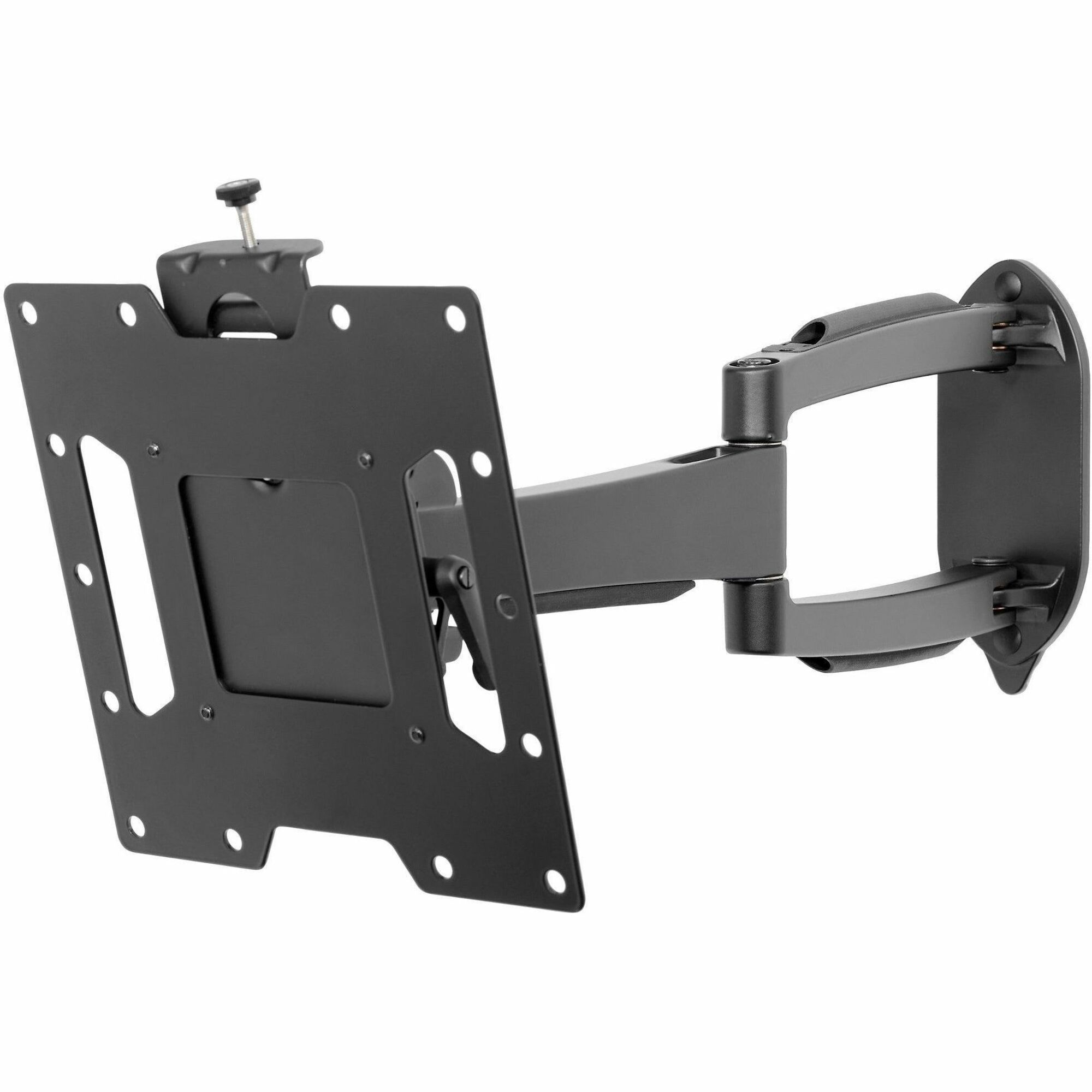

SA740P

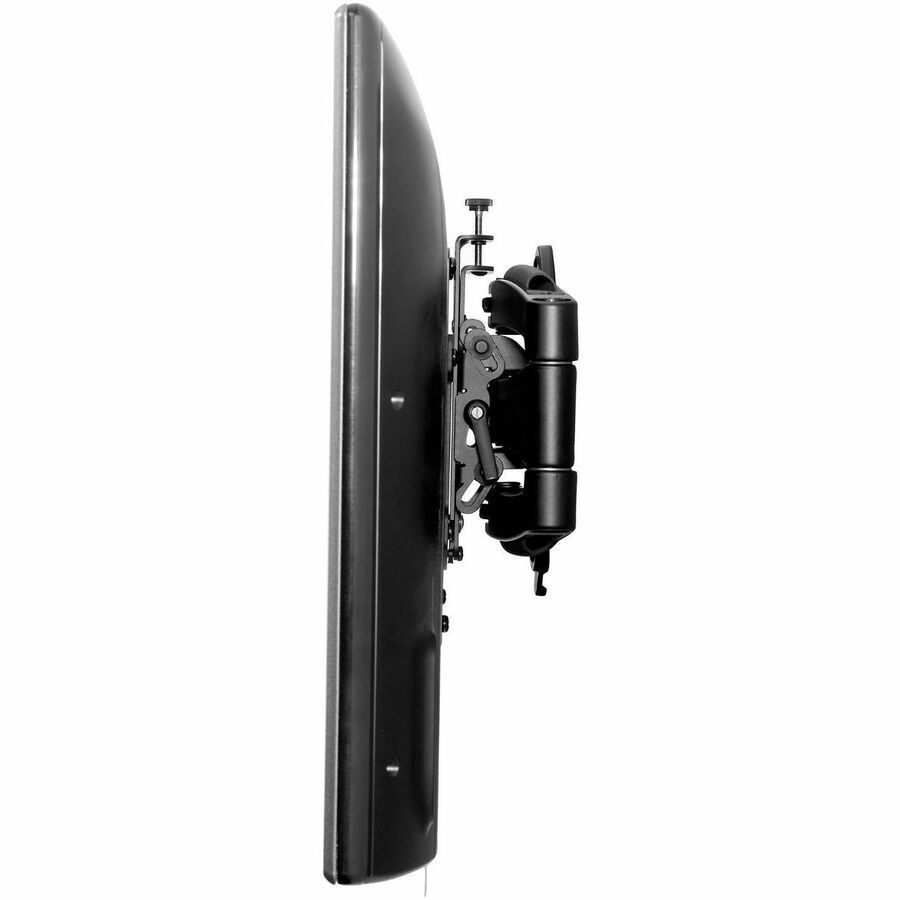

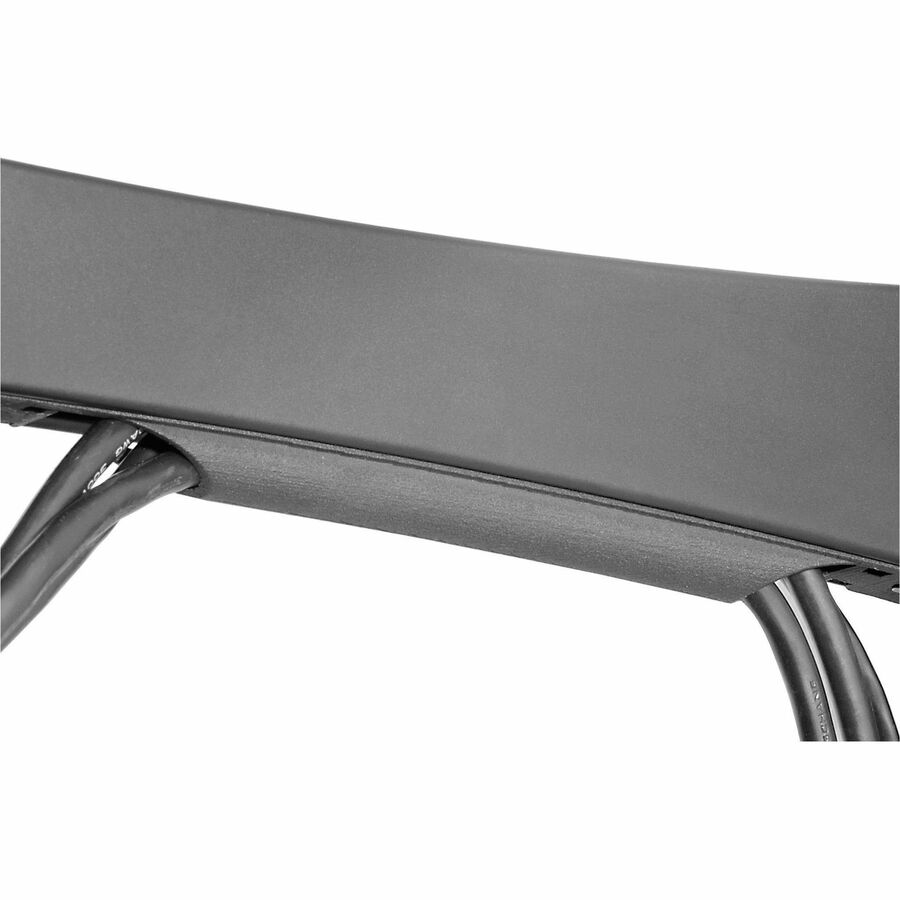

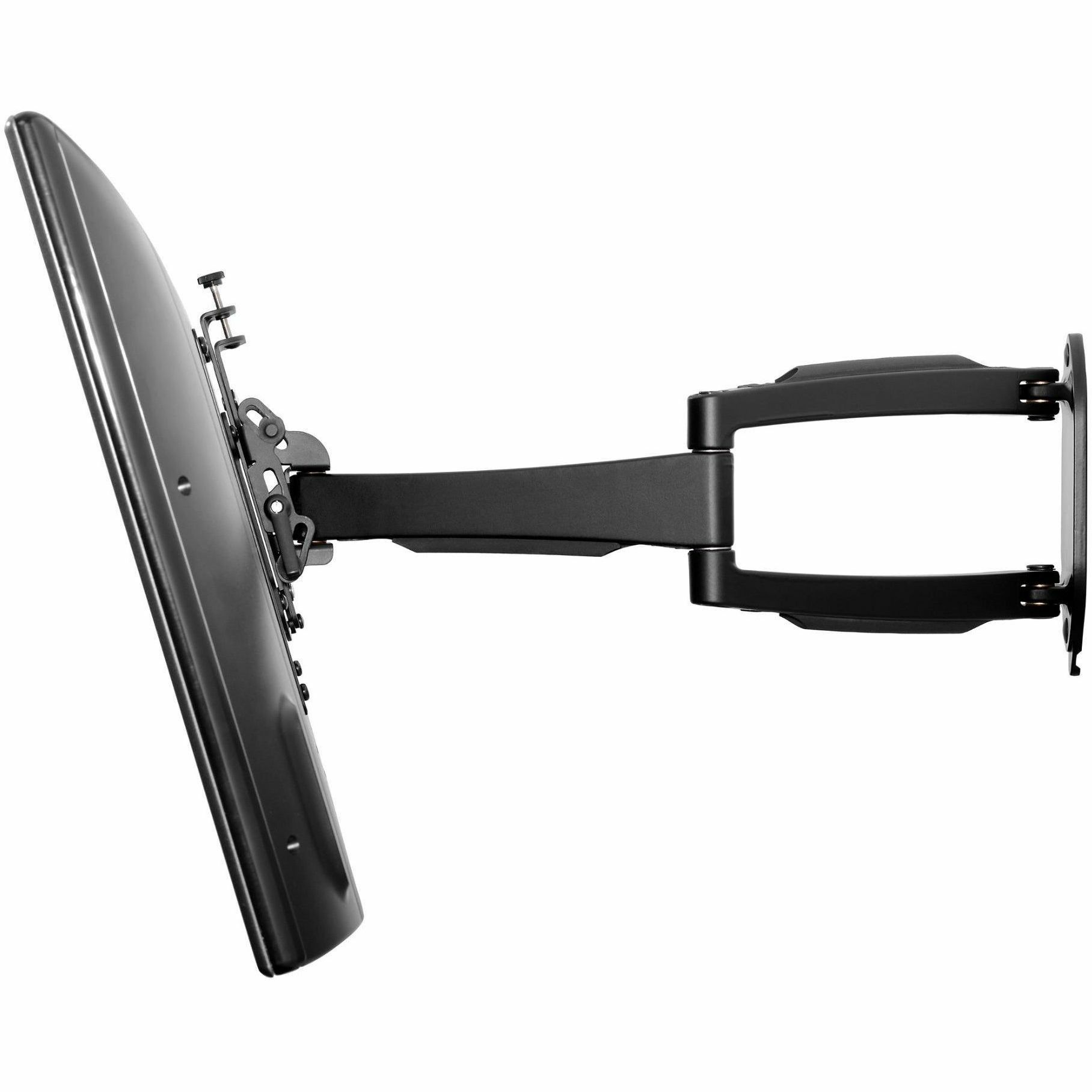

The SmartMount® Articulating Wall Mount series offers the most versatile installation features and mounting options. Vertical adjustment ability allows for post installation leveling, making it easier than ever to find the perfect display position. With SA740P, extend the display up to 21.8" (554mm) or fully-retract it to just 3.3" (77mm) from the wall for the perfect viewing position. The display can now simply be installed by a single person with the Hook-and-Hang™ system. One-Touch™ tilt technology offers +15°/-5° vertical tilt movement for the ideal viewing angle. Integrated cable management protects, contains and conceals cables for a clean installation.
Assembly Instructions
No pricing available. Call for Quote.
This display size range is simply a guideline for product selection. Displays larger than the screen size range may still be compatible as long as they fall within the VESA® pattern and max weight of the Peerless-AV® product.
Certifications:
The SmartMount® Articulating Wall Mount series offers the most versatile installation features and mounting options. Vertical adjustment ability allows for post installation leveling, making it easier than ever to find the perfect display position. With SA740P, extend the display up to 21.8" (554mm) or fully-retract it to just 3.3" (77mm) from the wall for the perfect viewing position. The display can now simply be installed by a single person with the Hook-and-Hang™ system. One-Touch™ tilt technology offers +15°/-5° vertical tilt movement for the ideal viewing angle. Integrated cable management protects, contains and conceals cables for a clean installation.
General Information | |
|---|---|
| Manufacturer | Peerless Industries, Inc |
| Manufacturer Part Number | SA740P |
| Manufacturer Website Address | http://www.peerless-av.eu.com |
| Brand Name | SmartMount® |
| Product Series | SA740P |
| Product Model | SA740P |
| Product Name | Articulating Wall Mount for 22" to 43" Displays |
| Marketing Information | The SmartMount® Articulating Wall Mount series offers the most versatile installation features and mounting options. Vertical adjustment ability allows for post installation leveling, making it easier than ever to find the perfect display position. With SA740P, extend the display up to 21.8" (554mm) or fully-retract it to just 3.3" (77mm) from the wall for the perfect viewing position. The display can now simply be installed by a single person with the Hook-and-Hang™ system. One-Touch™ tilt technology offers +15°/-5° vertical tilt movement for the ideal viewing angle. Integrated cable management protects, contains and conceals cables for a clean installation. |
| Packaged Quantity | 1 Unit |
| Product Type | Wall Mount |
Product Information | |
|---|---|
| Device Supported | Display |
| Maximum Load Capacity | 36.29 kg |
| Minimum Screen Size Supported | 22" (55.88 cm) |
| Maximum Screen Size Supported | 43" (109.22 cm) |
| Minimum Adjustable Depth | 7.70 cm (3.03") |
| Maximum Adjustable Depth | 55.37 cm (21.80") |
| Features |
|
| Orientation | Landscape/Portrait |
| Height Adjustable | Yes |
Physical Characteristics | |
|---|---|
| Color Family | Black |
| Product Color | Semi-gloss Black |
| Finishing | Fused Epoxy |
| VESA Mount Compatible | Yes |
| Mounting Pattern |
|
| Form Factor | Wall Mountable |
| Height | 25.78 cm (10.15") |
| Width | 36.37 cm (14.32") |
| Depth | 55.37 cm (21.80") |
| Weight (Approximate) | 3.30 kg |
Miscellaneous | |
|---|---|
| Package Contents |
|
| Application/Usage |
|
| Indoor/Outdoor | Indoor |
| Certifications & Standards | RoHS, TAA, VESA, UL, OSHPD |
| Manufacturer Product Class | Articulating |
| Assembly Required | Yes |
| TAA Compliant | Yes |
| UL Listed | Yes |
| Environmental Compliance | |
Warranty | |
|---|---|
| Limited Warranty | 5 Year |
| Minimum Tilt Angle | -5° |
|---|
| Maximum Tilt Angle | 15° |
|---|
| Minimum Swivel Angle | -90° |
|---|
| Maximum Swivel Angle | 90° |
|---|
| Mount Function |
|
|---|
| Mount Surface | Wall |
|---|
| Durability | Scratch Resistant |
|---|
