LEDBDS-5X5

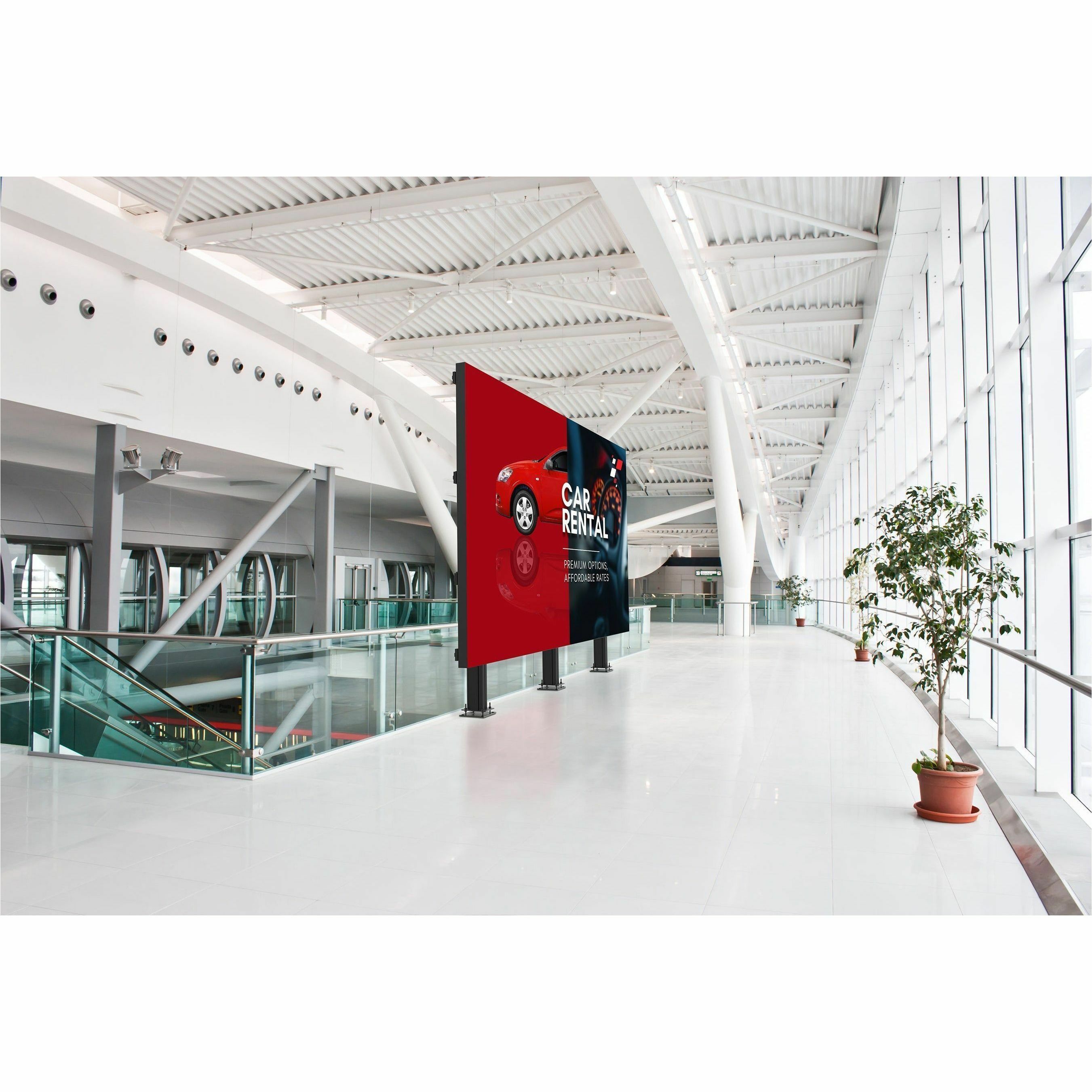

The SEAMLESS Connect Universal Series by Peerless-AV® offers a versatile lineup of substructures for environments where wall mounting is not an option. Purpose-built for dvLED video walls and all-in-one displays, the SEAMLESS Connect Universal Bolt-Down Pedestal solution supports full system weight with strength and stability. Its slim, space-saving design simplifies setup and speeds up installation. The quad post leveling base allows precise micro-adjustments at all four corners to ensure a plumb structure and a perfectly flat mounting surface for dvLED installation - Ideal for corporate lobbies, retail, hospitality, showrooms, events, and entertainment spaces.
No pricing available. Call for Quote.
Product Name

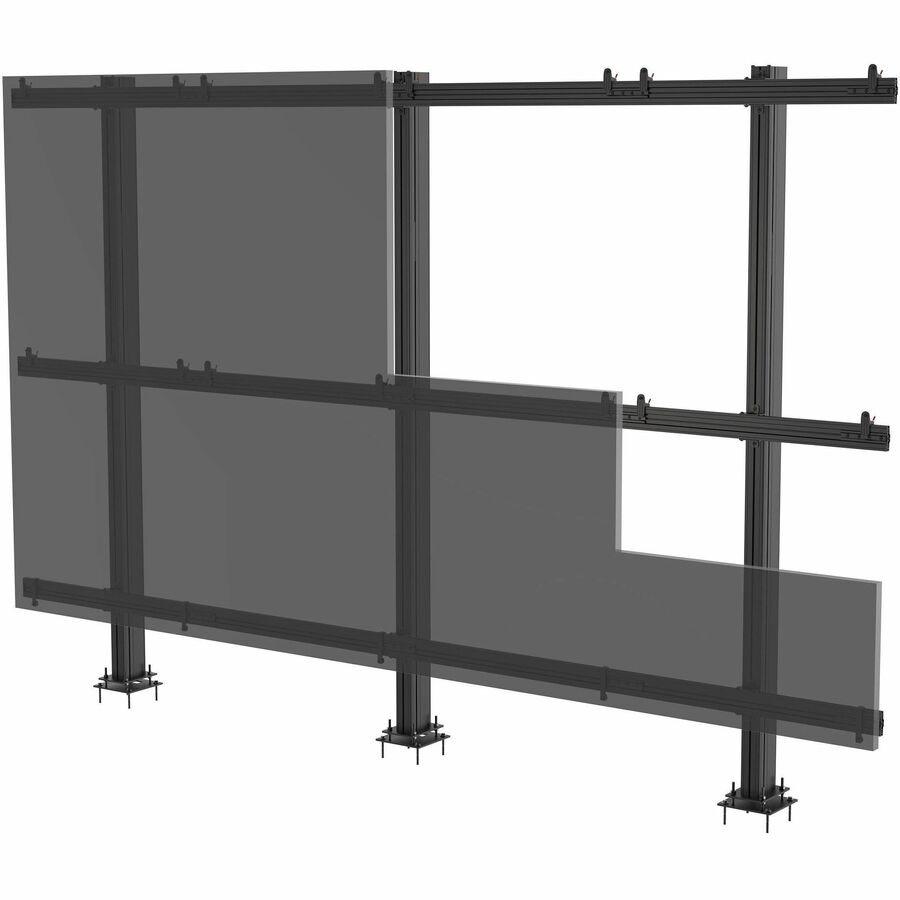

SEAMLESS Connect, Universal dvLED Bolt Down Pedestal for 27" Displays up to 610mm Wide in a 5x5 Configuration.
The SEAMLESS Connect Universal Series by Peerless-AV® offers a versatile lineup of substructures for environments where wall mounting is not an option. Purpose-built for dvLED video walls and all-in-one displays, the SEAMLESS Connect Universal Bolt-Down Pedestal solution supports full system weight with strength and stability. Its slim, space-saving design simplifies setup and speeds up installation. The quad post leveling base allows precise micro-adjustments at all four corners to ensure a plumb structure and a perfectly flat mounting surface for dvLED installation - Ideal for corporate lobbies, retail, hospitality, showrooms, events, and entertainment spaces.
General Information | |
|---|---|
| Manufacturer | Peerless Industries, Inc |
| Manufacturer Part Number | LEDBDS-5x5 |
| Manufacturer Website Address | http://www.peerless-av.eu.com |
| Brand Name | Peerless-AV® |
| Product Line | SEAMLESS Connect |
| Product Series | LEDBD |
| Product Model | LEDBDS-5x5 |
| Product Name | SEAMLESS Connect Universal dvLED Bolt-Down Pedestal |
| Marketing Information | The SEAMLESS Connect Universal Series by Peerless-AV® offers a versatile lineup of substructures for environments where wall mounting is not an option. Purpose-built for dvLED video walls and all-in-one displays, the SEAMLESS Connect Universal Bolt-Down Pedestal solution supports full system weight with strength and stability. Its slim, space-saving design simplifies setup and speeds up installation. The quad post leveling base allows precise micro-adjustments at all four corners to ensure a plumb structure and a perfectly flat mounting surface for dvLED installation - Ideal for corporate lobbies, retail, hospitality, showrooms, events, and entertainment spaces. |
| Packaged Quantity | 1 Unit |
| Product Type | Floor Mount |
Product Information | |
|---|---|
| Device Supported | dvLED |
| Display Configuration | 5x5 |
| Number of Displays Supported | 25 |
| Maximum Load Capacity | 283.50 kg |
| Maximum Screen Size Supported | 27" (68.58 cm) |
| Features |
|
| Orientation | Landscape/Portrait |
| Mount Function |
|
| Mount Surface | Floor |
Aluminum - Frame
Physical Characteristics | |
|---|---|
| Color Family | Black |
| Product Color | Black |
| Finishing |
|
| Product Material | Cast Aluminum |
| Material Details | Aluminum - Frame |
| Form Factor | Floor-mountable |
| Height | 244.40 cm (96.22") |
| Width | 305 cm (120.08") |
| Depth | 20.80 cm (8.19") |
| Weight (Approximate) | 57.61 kg |
Miscellaneous | |
|---|---|
| Package Contents |
|
| Application/Usage |
|
| Manufacturer Product Class | Pedestal |
| Assembly Required | Yes |
Warranty | |
|---|---|
| Limited Warranty | 5 Year |
BIM Model
SEAMLESS Connect, Universal dvLED Floor-to-Wall Mount for 27" Displays up to 610mm Wide in a 5x5 Configuration.
Peerless-AV® SEAMLESS Connect, Universal dvLED Trim Kit for 27" Displays up to 610mm Wide in a 5x5 Configuration.
SEAMLESS Connect, Universal dvLED Floor-to-Ceiling Mount for 27" Displays up to 610mm Wide in a 5x5 Configuration.
Maximum Screen Size Supported
27" (68.58 cm)
27" (68.58 cm)
27" (68.58 cm)
27" (68.58 cm)
Maximum Load Capacity
283.50 kg
283.50 kg
-
283.50 kg
Features
| SKU | Maximum Screen Size Supported | Display Configuration |
|---|---|---|
| LEDBDS-4X4 | 27" (68.58 cm) | 4x4 |
| LEDBDS-5X5 | 27" (68.58 cm) | 5x5 |
| LEDBDS-6X6 | 27" (68.58 cm) | 6x6 |
| LEDBDS-8X8 | 27" (68.58 cm) | 8x8 |
| LEDBDM-3X3 | 43" (109.22 cm) | 3x3 |
| LEDBDM-4X4 | 43" (109.22 cm) | 4x4 |
| LEDBDM-5X5 | 43" (109.22 cm) | 5x5 |
| LEDBDL-2X2 | 55" (139.70 cm) | 2x2 |
| LEDBDL-3X3 | 55" (139.70 cm) | 3x3 |
| LEDBDL-4X4 | 55" (139.70 cm) | 4x4 |
