STS680-1UCM3
No pricing available. Call for Quote.
Product Name
SmartMount® STS680-1UCM3 Wall Mount for Display, Digital Signage Display - Black - TAA Compliant

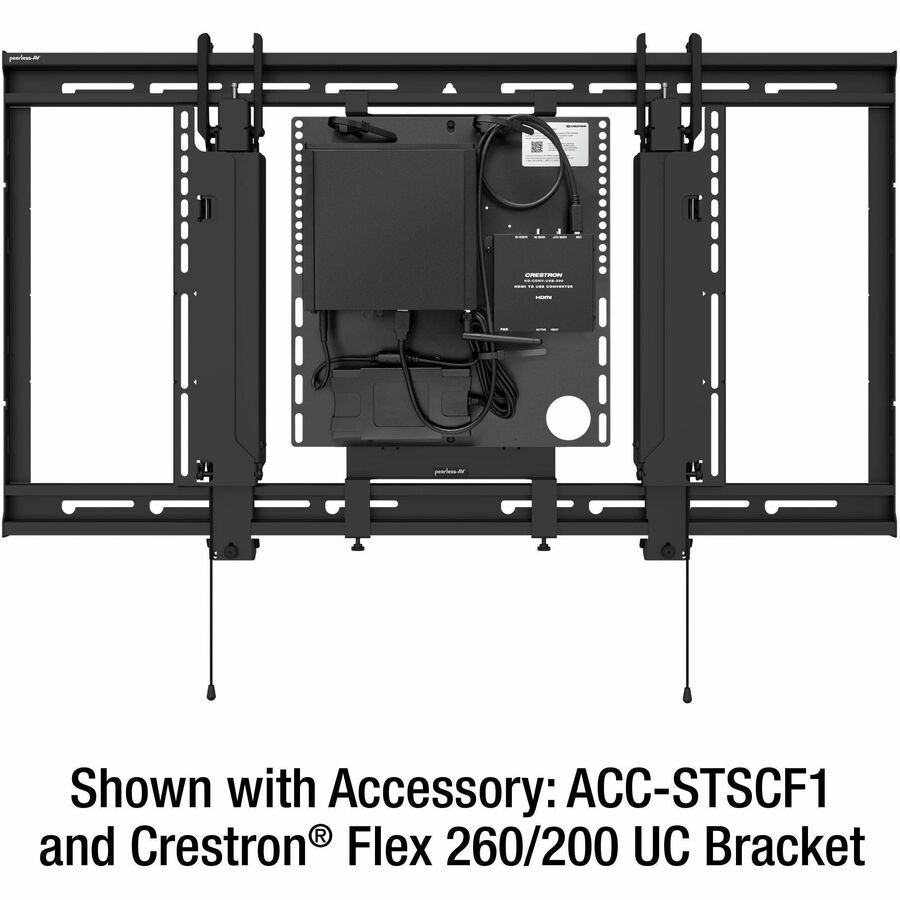

STS680 Crestron® Flex 260/200 UC Bracket Mount

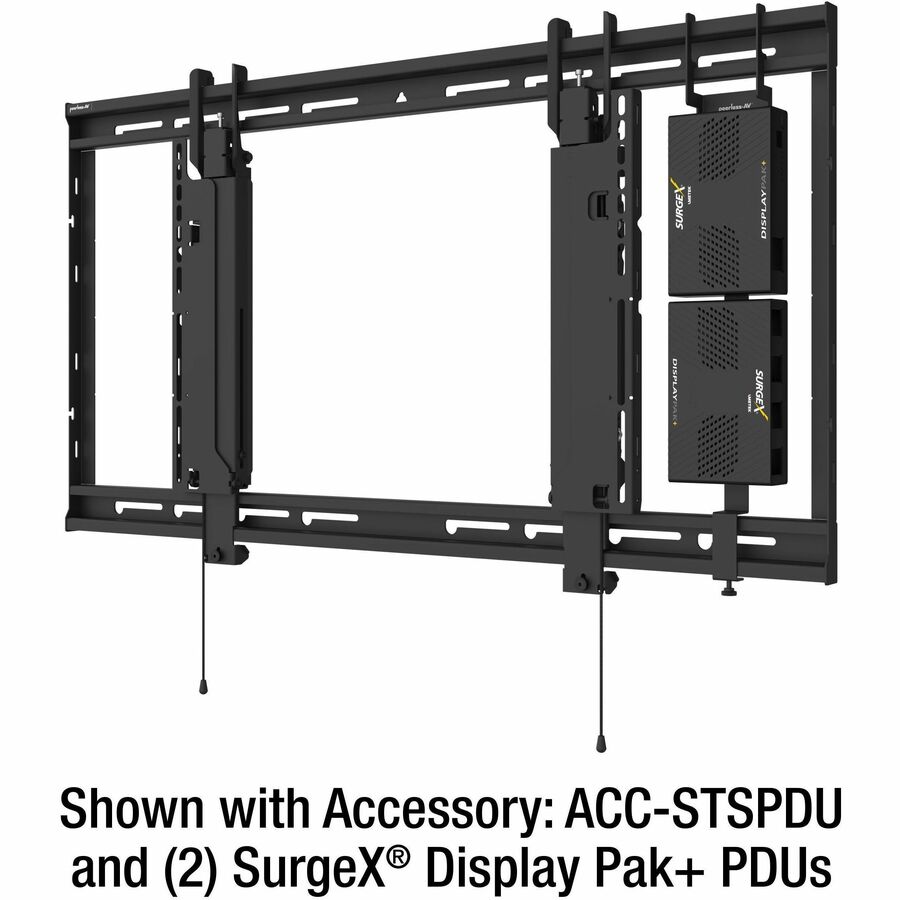

STS680 SurgeX® DisplayPak+ PDU Mounting Bracket

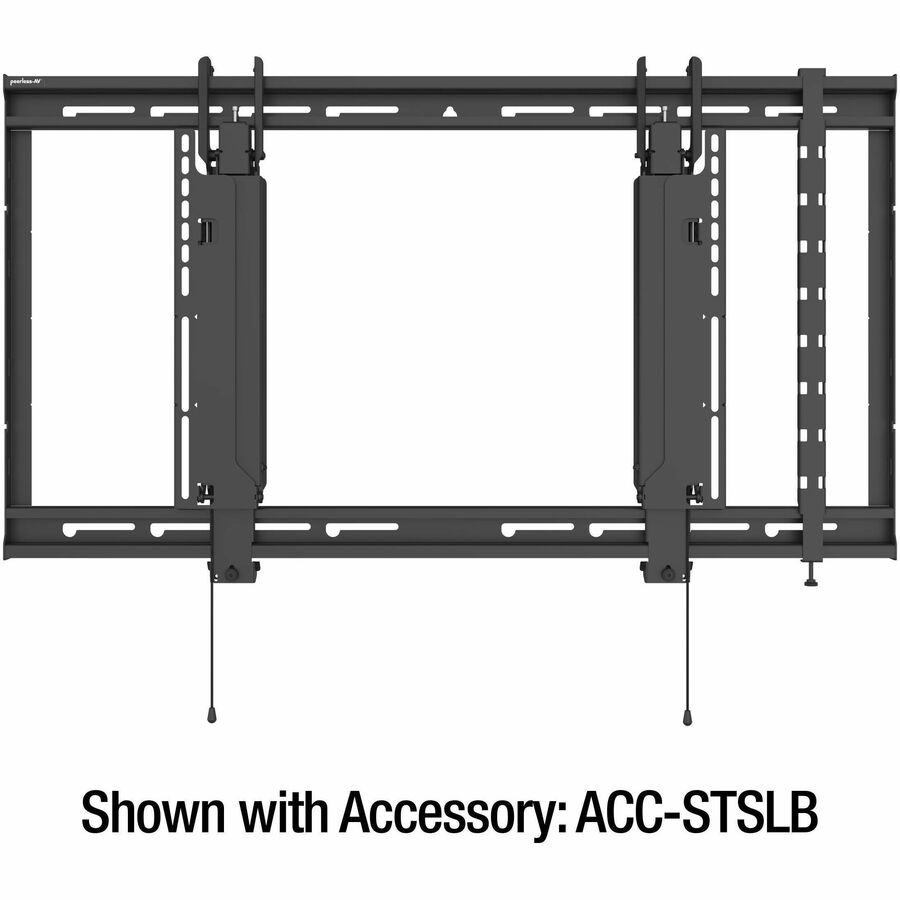

STS680 Cable Management Lacing Bar

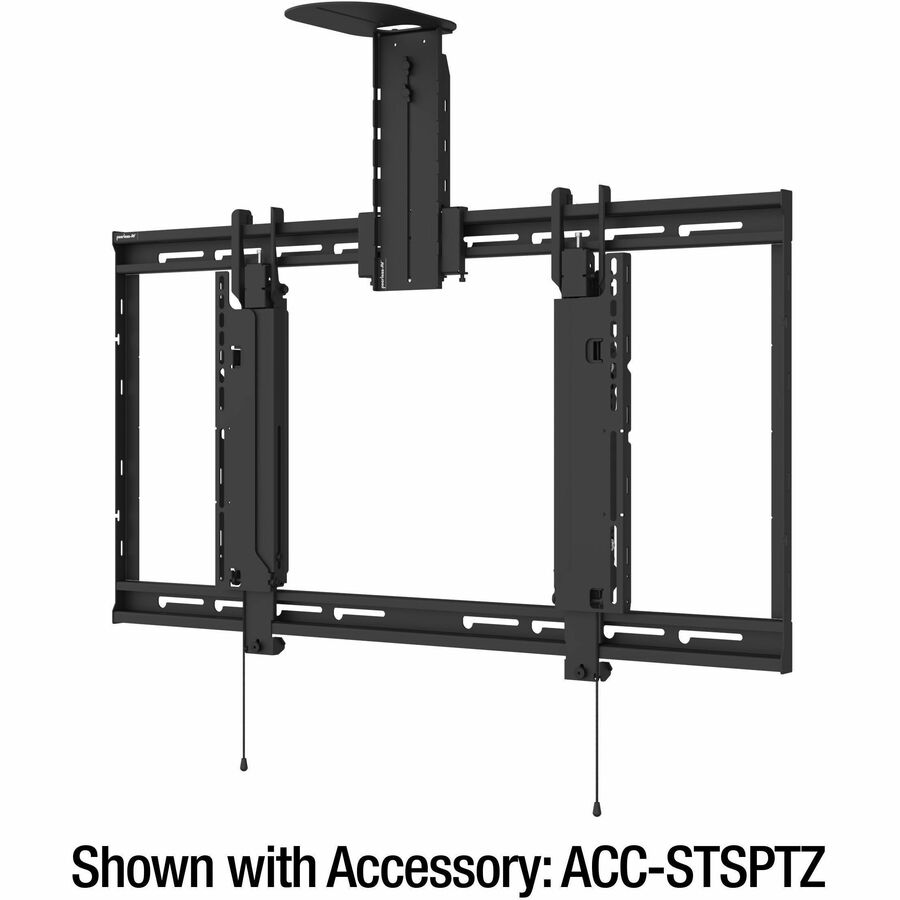

STS680 Universal PTZ Camera Mount

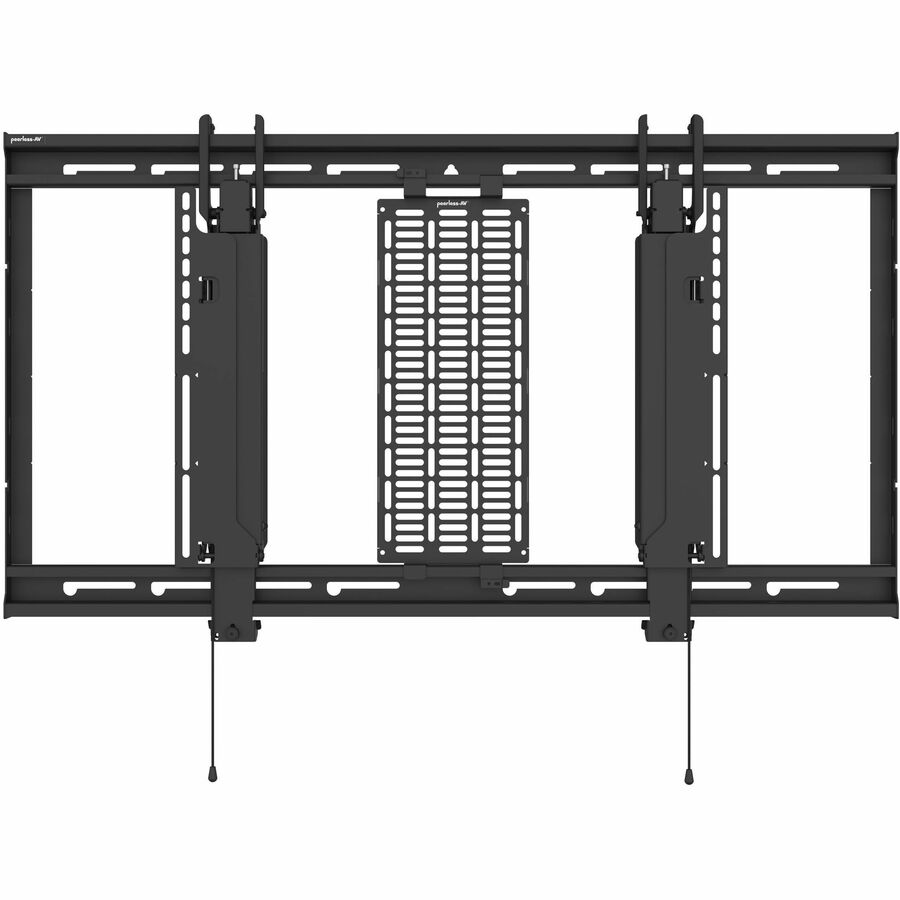

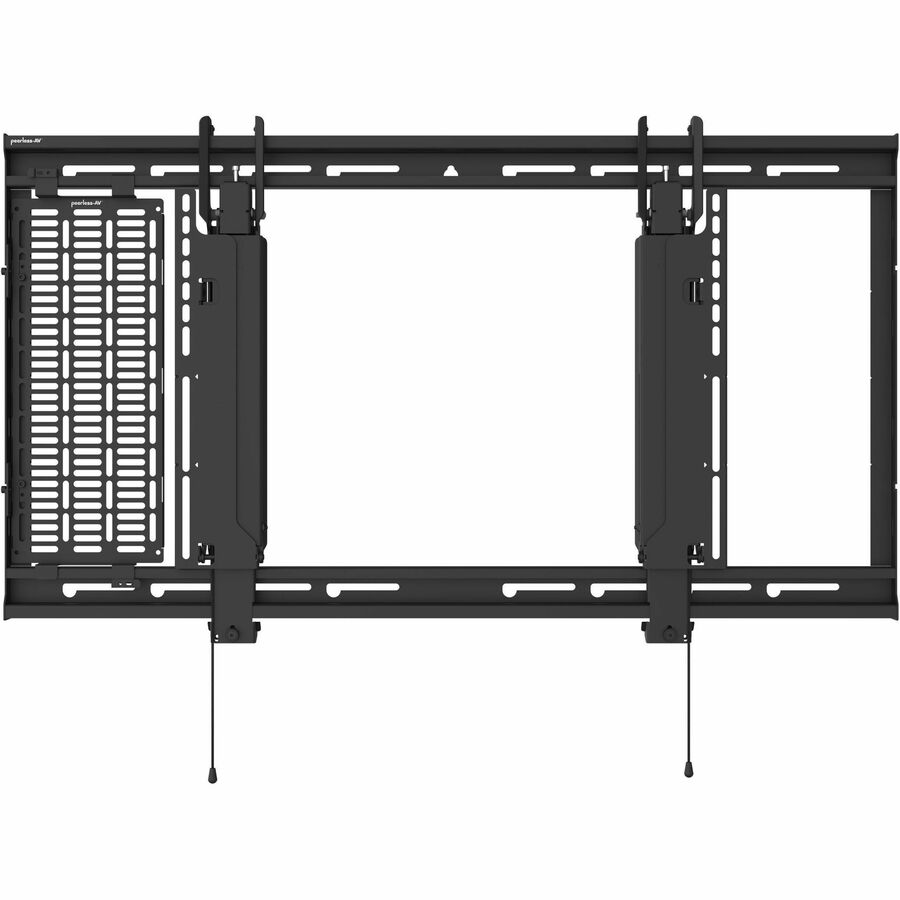

STS680 Universal AV Component Mount

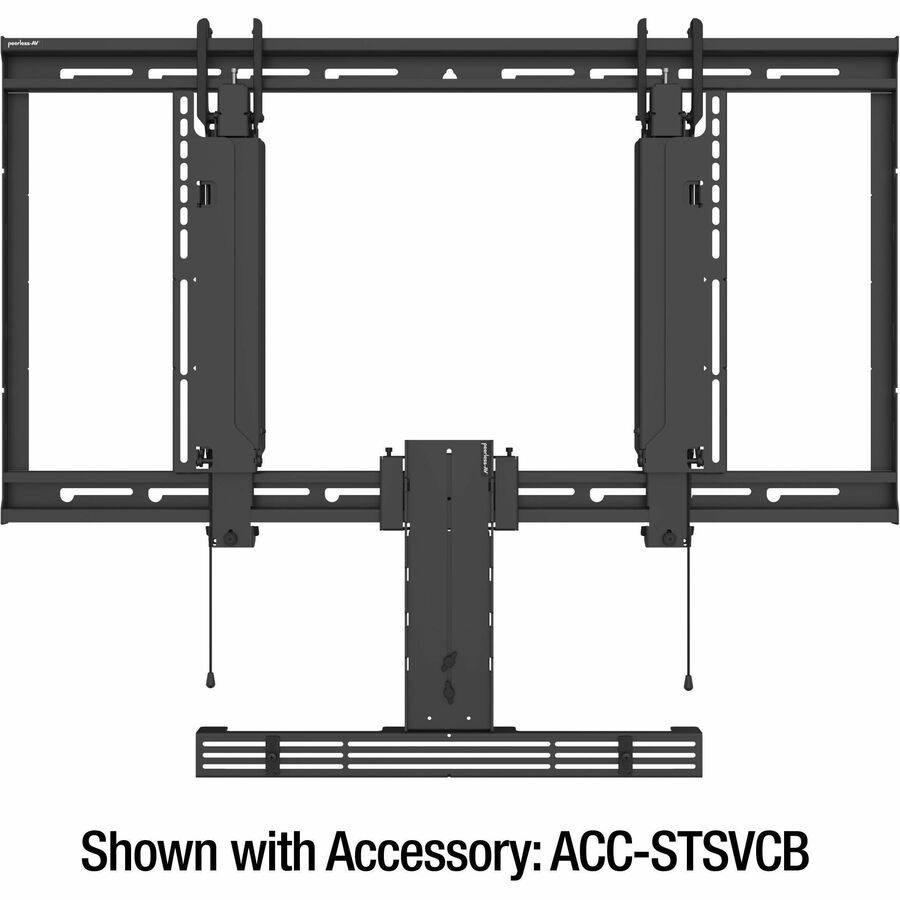

STS680 Universal Video Conferencing Bar Mount
Minimum Screen Size Supported
49" (124.46 cm)
-
49" (124.46 cm)
49" (124.46 cm)
49" (124.46 cm)
-
49" (124.46 cm)
Maximum Screen Size Supported
120" (304.80 cm)
-
115" (292.10 cm)
115" (292.10 cm)
115" (292.10 cm)
-
115" (292.10 cm)
Maximum Load Capacity
113.40 kg
4.54 kg
6.80 kg
6.80 kg
6.80 kg
4.54 kg
6.80 kg
Mounting Pattern
1000 x 400
-
-
-
-
-
Features
Certifications:
General Information | |
|---|---|
| Manufacturer | Peerless Industries, Inc |
| Manufacturer Part Number | STS680-1UCM3 |
| Manufacturer Website Address | http://www.peerless-av.eu.com |
| Brand Name | SmartMount® |
| Product Model | STS680-1UCM3 |
| Product Name | SmartMount® Universal Ultra-Slim Scissor Wall Mount for 49" to 120"+ Displays |

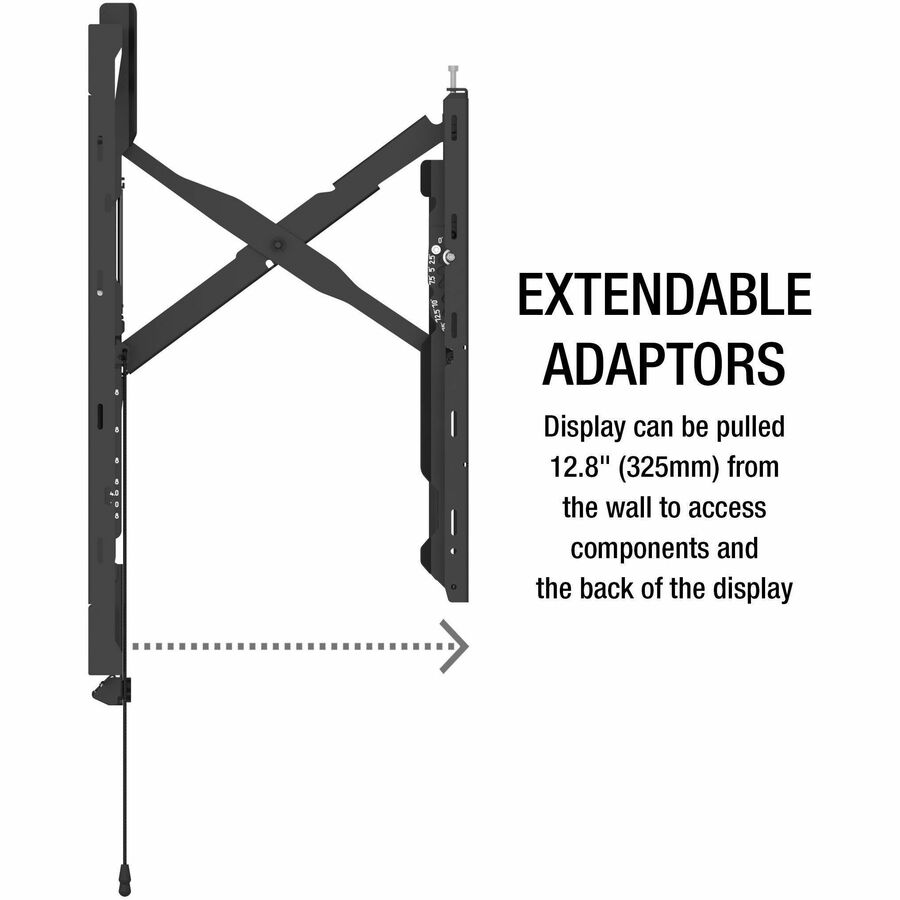

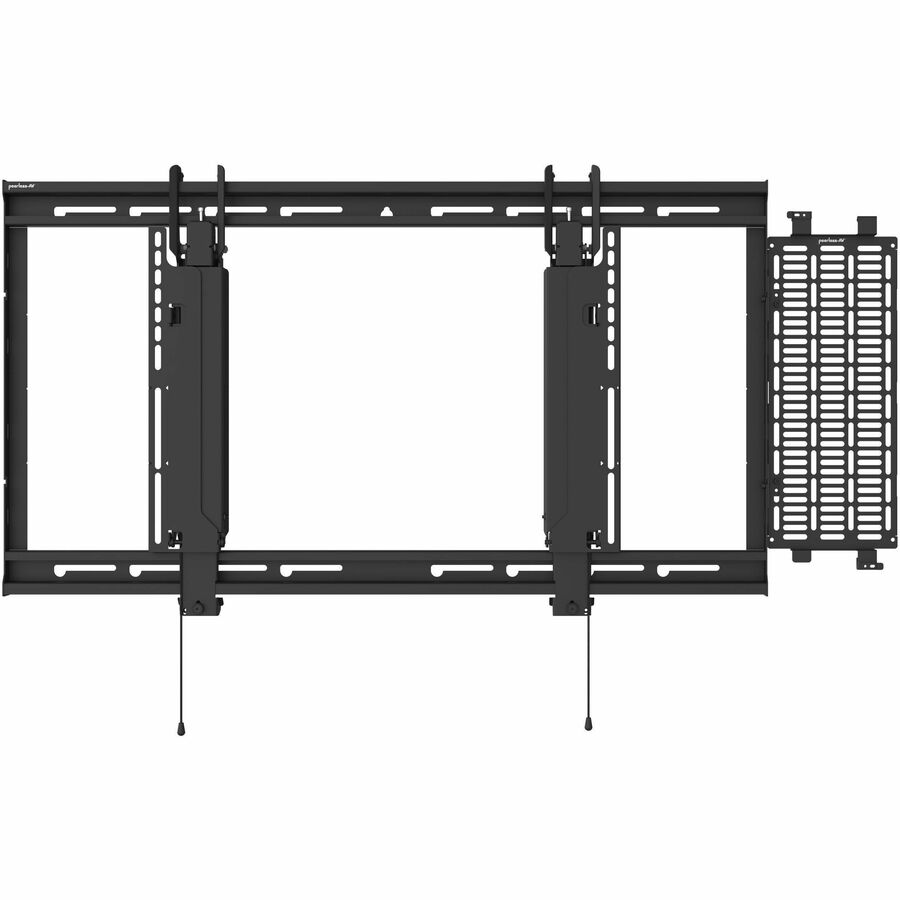

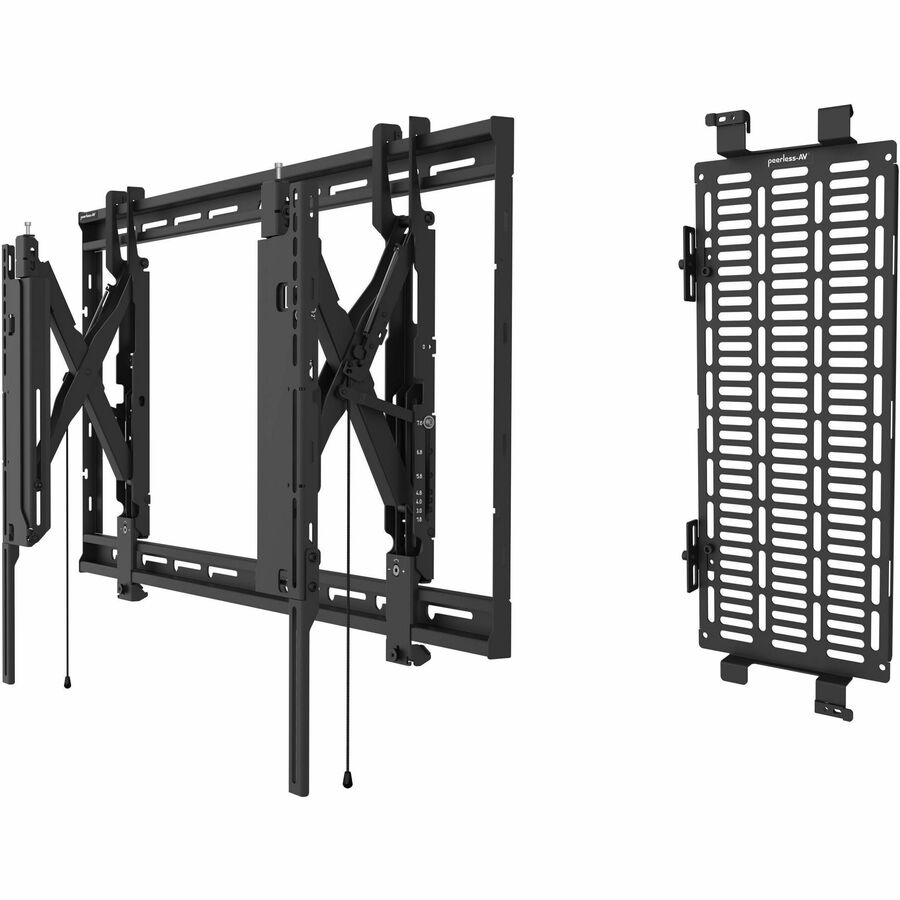

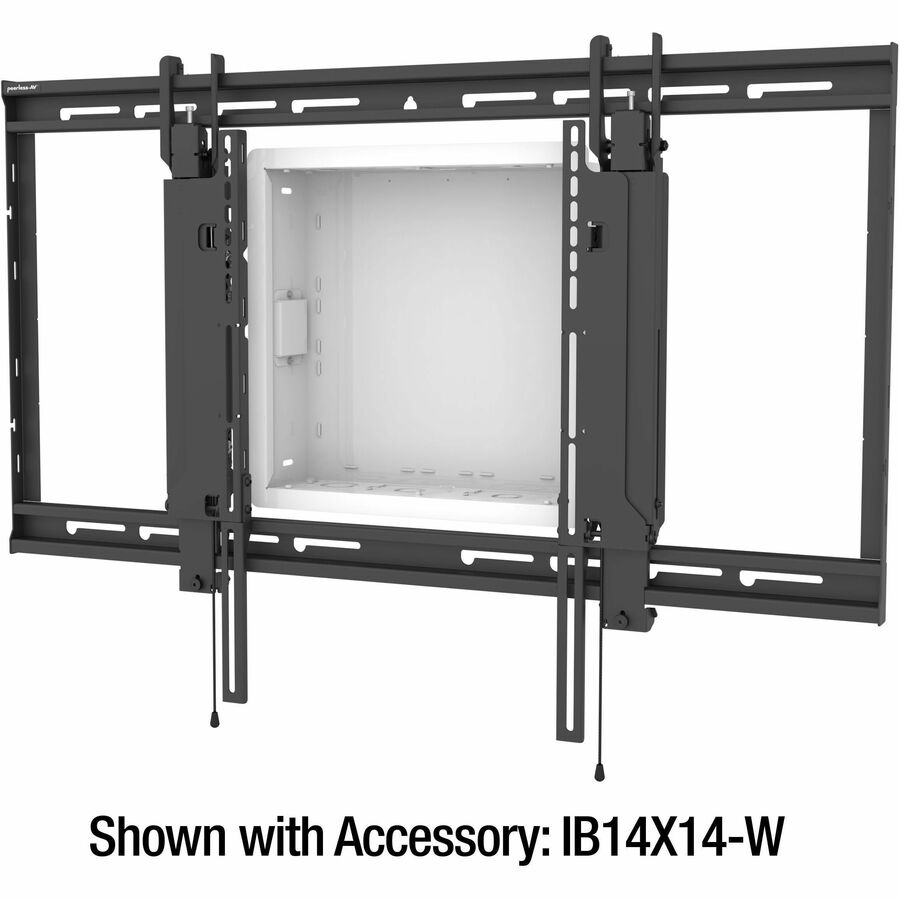

| Marketing Information | Peerless-AV's SmartMount® Universal Scissor Wall Mount (STS680-1UCM3) is the ideal solution for UC/VC applications and recessed wall installations. Designed for convenience, it provides easy access to components stored behind the display. The mount's extendable adaptors allow the display to be pulled up to 12.8" (325mm) from the wall and locked securely in place once installation or maintenance is complete. With its Hook-and-Hang™ feature, installation is quick and simple, while the open access design offers maximum wall space flexibility for outlets and in-wall boxes. Post-installation leveling and side-to-side adjustability ensure the display is perfectly aligned in any corporate, digital signage, or hospitality environment. This kitted solution includes (1) STS680 and (1) ACC-UCM3 component mount. |
| Packaged Quantity | 1 Unit |
| Product Type | Wall Mount |
Product Information | |
|---|---|
| Device Supported |
|
| Maximum Load Capacity | 113.40 kg |
| Minimum Screen Size Supported | 49" (124.46 cm) |
| Maximum Screen Size Supported | 120" (304.80 cm) |

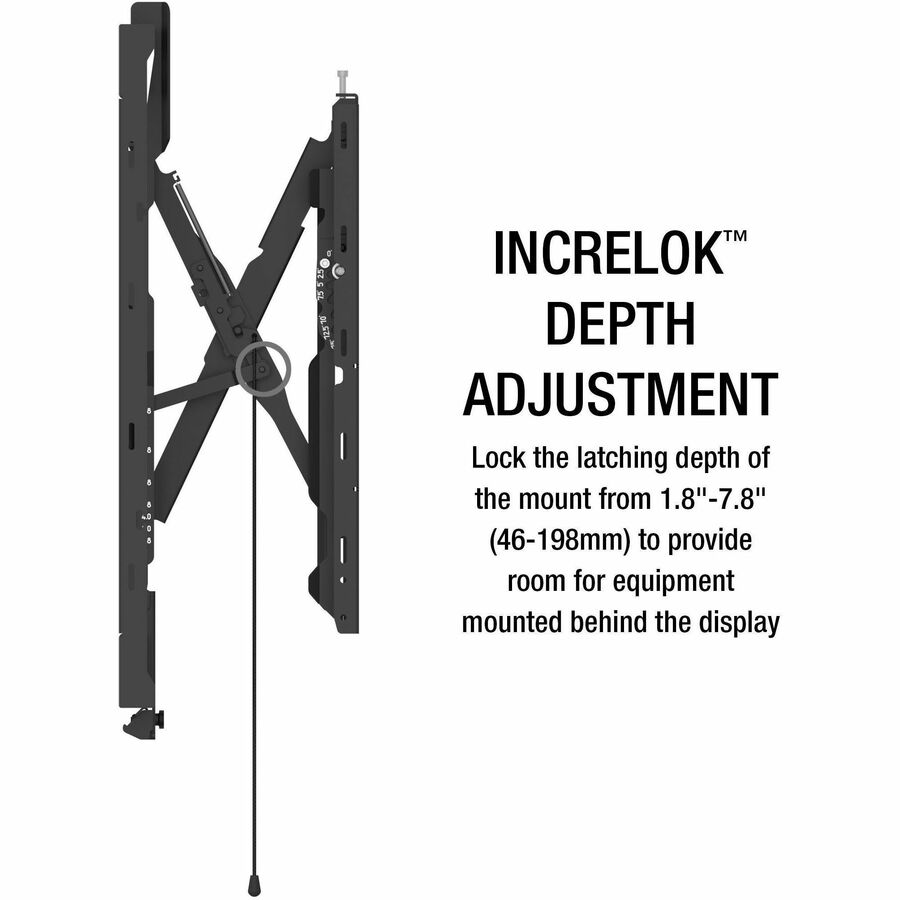

| Minimum Adjustable Depth | 4.57 cm (1.80") |
| Maximum Adjustable Depth | 32.51 cm (12.80") |
| Features |
|
| Mount Pattern Compatibility Type | Universal |
| Minimum Tilt Angle | |
Physical Characteristics | |
|---|---|
| Color Family | Black |
| Product Color | Black |
| Finishing | Fused Epoxy |
| VESA Mount Compatible | Yes |
| Mounting Pattern | 1000 x 400 |
| Minimum Mounting Pattern | 200 x 100 |
| Form Factor | Wall Mountable |
| Height | 71.88 cm (28.30") |
| Width | 102.11 cm (40.20") |
| Depth | 32.51 cm (12.80") |
Miscellaneous | |
|---|---|
| Application/Usage |
|
| Assembly Required | Yes |
| TAA Compliant | Yes |
| UL Listed | Yes |

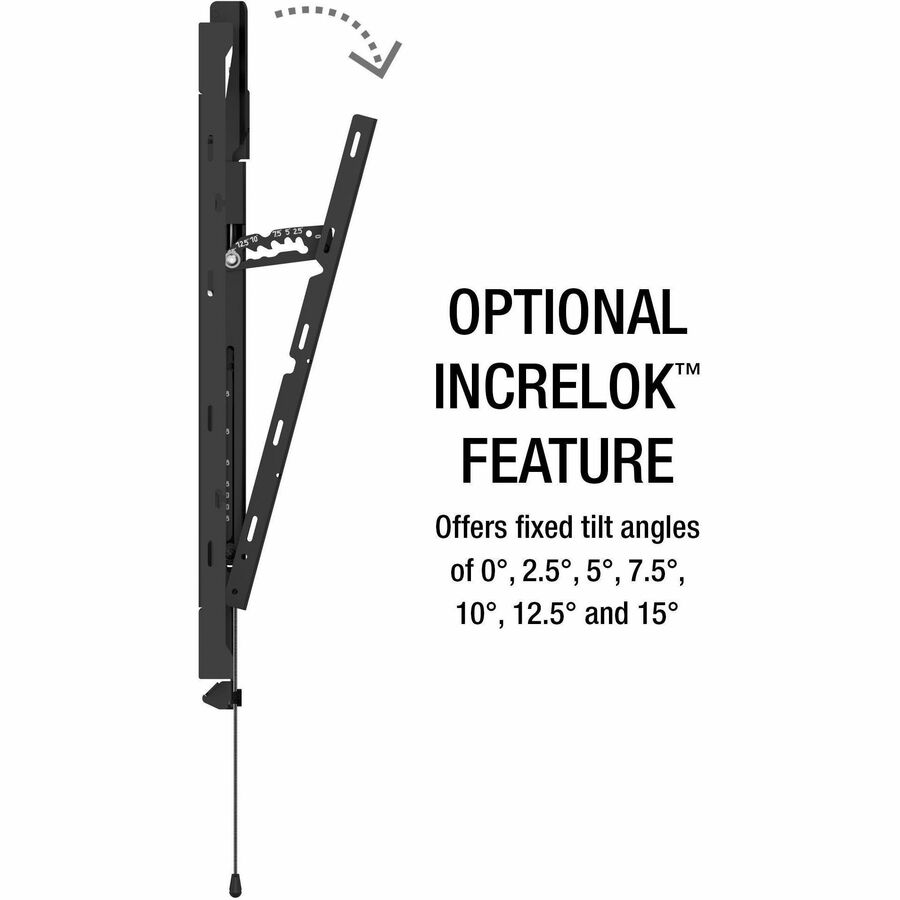

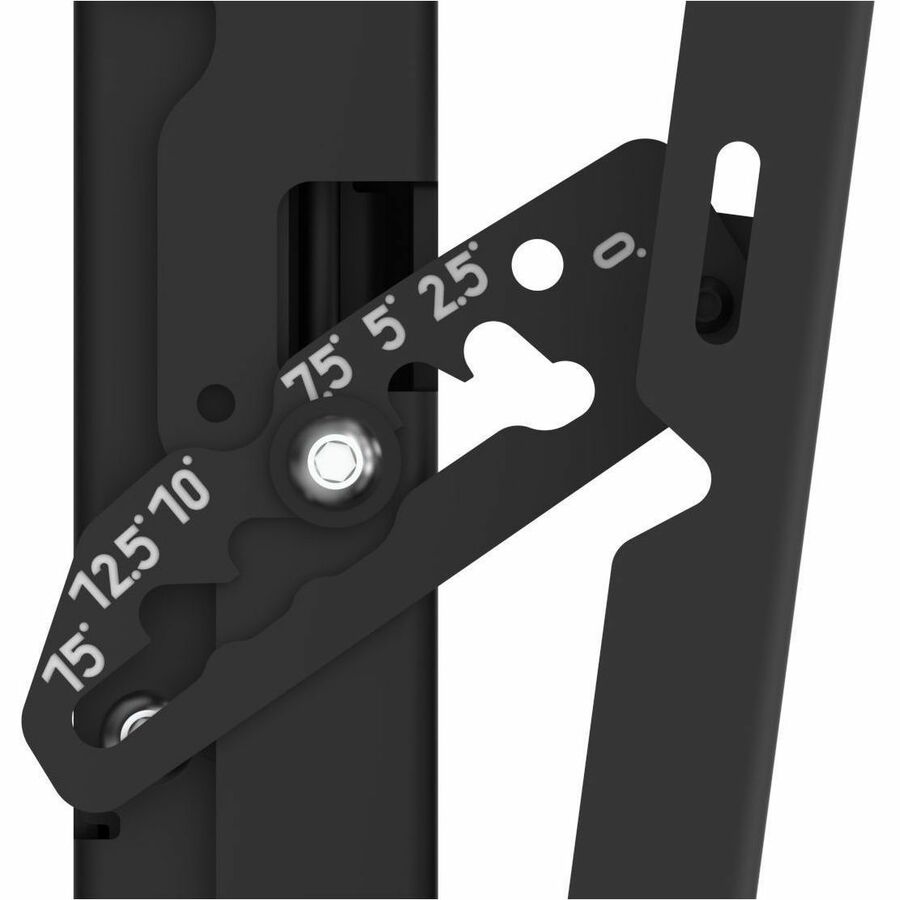

| Maximum Tilt Angle | 15° |
|---|
| Mount Function |
|
|---|
| Mount Surface | Wall |
|---|
| Durability |
|
|---|
| Weight (Approximate) |
|---|
| 13.65 kg |
