DS-VW775-QR

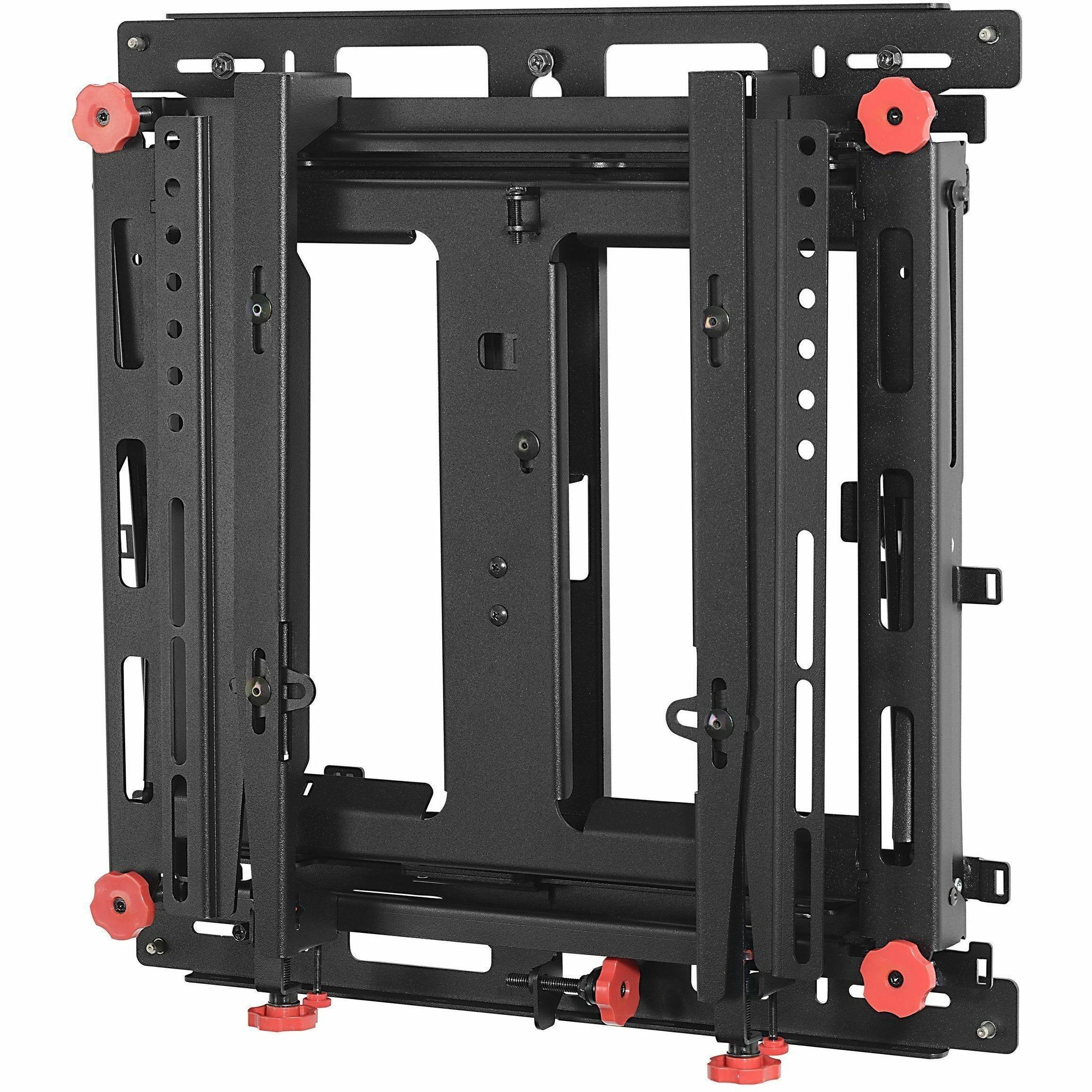

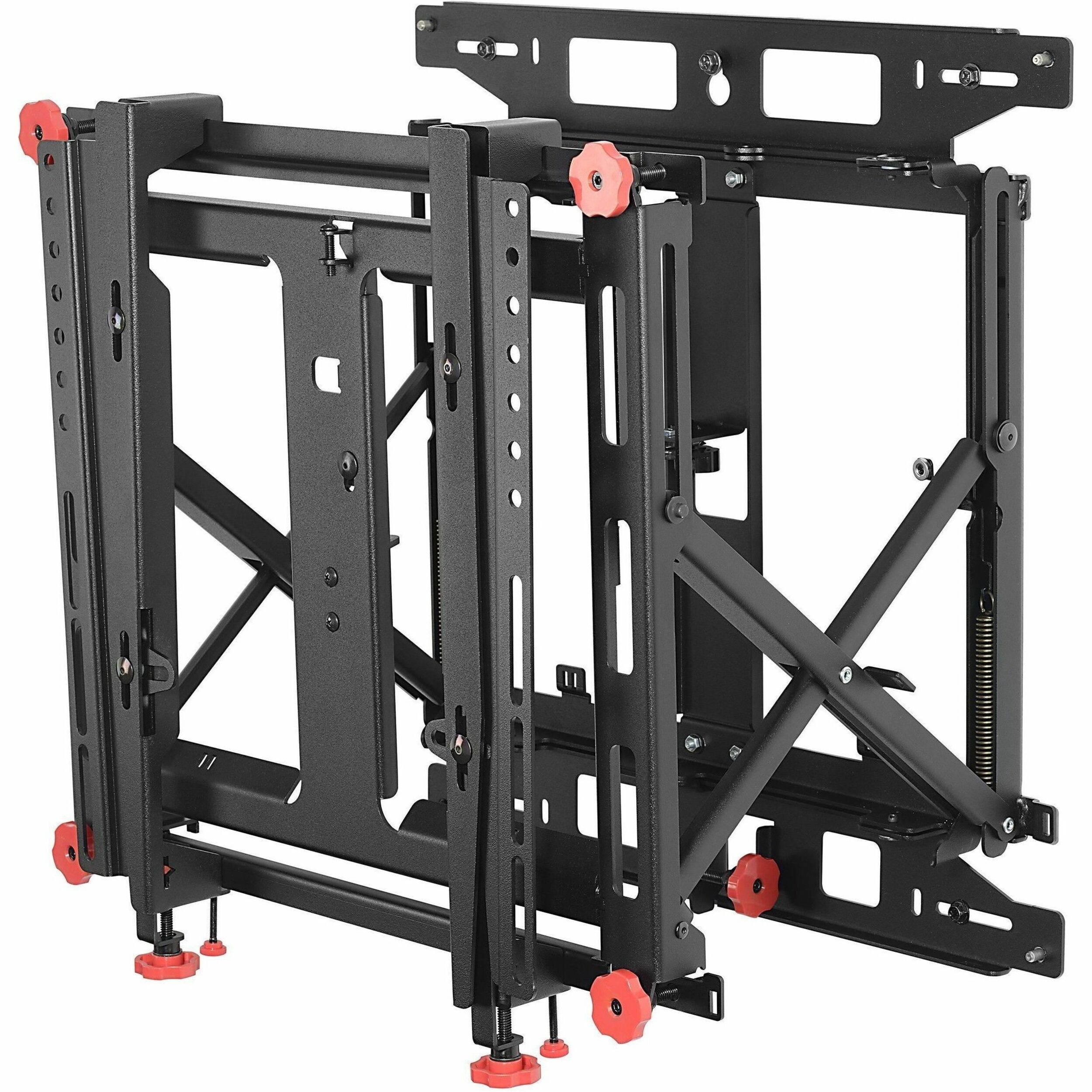

Peerless-AV's SmartMount® Supreme Full Service Video Wall Mount with Quick Release raises the bar of excellence with an enhanced feature set centered on ease of install and display alignment. With the addition of tool-less lateral micro-adjustment, the Supreme offers 1.5" of fine tune adjustment on each of the X, Y and Z axis. Serviceability is easier than ever before with a gentle press to release mechanism, any display in the video wall configuration can be quickly extended for maintenance. Reusable spacers can be used for both portrait and landscape applications resulting in a faster install and lower cost. Enhanced cable management allows the cables to effortlessly travel in and out with the display, preventing them from getting pinched or pulled loose when extended.
No pricing available. Call for Quote.
Product Name
Peerless-AV® Supreme Full Service Video Wall Mount with Quick Release for 46˘ to 60˘ Displays
Peerless-AV® Full Service Video Wall Mount with Quick Release For 65˘ to 98˘ Displays
Minimum Screen Size Supported
46" (116.84 cm)
65" (165.10 cm)
Maximum Screen Size Supported
60" (152.40 cm)
98" (248.92 cm)
Maximum Load Capacity
56.70 kg
102.06 kg
Mounting Pattern
600 x 600
Features
This display size range is simply a guideline for product selection. Displays larger than the screen size range may still be compatible as long as they fall within the VESA® pattern and max weight of the Peerless-AV® product.
Certifications:
Peerless-AV's SmartMount® Supreme Full Service Video Wall Mount with Quick Release raises the bar of excellence with an enhanced feature set centered on ease of install and display alignment. With the addition of tool-less lateral micro-adjustment, the Supreme offers 1.5" of fine tune adjustment on each of the X, Y and Z axis. Serviceability is easier than ever before with a gentle press to release mechanism, any display in the video wall configuration can be quickly extended for maintenance. Reusable spacers can be used for both portrait and landscape applications resulting in a faster install and lower cost. Enhanced cable management allows the cables to effortlessly travel in and out with the display, preventing them from getting pinched or pulled loose when extended.
General Information | |
|---|---|
| Manufacturer | Peerless Industries, Inc |
| Manufacturer Part Number | DS-VW775-QR |
| Manufacturer Website Address | http://www.peerless-av.eu.com |
| Brand Name | SmartMount® |
| Product Series | DS-VW775-QR |
| Product Model | DS-VW775-QR |
| Product Name | Supreme Full Service Video Wall Mount with Quick Release for 46" to 60" Displays |
| Marketing Information | Peerless-AV's SmartMount® Supreme Full Service Video Wall Mount with Quick Release raises the bar of excellence with an enhanced feature set centered on ease of install and display alignment. With the addition of tool-less lateral micro-adjustment, the Supreme offers 1.5" of fine tune adjustment on each of the X, Y and Z axis. Serviceability is easier than ever before with a gentle press to release mechanism, any display in the video wall configuration can be quickly extended for maintenance. Reusable spacers can be used for both portrait and landscape applications resulting in a faster install and lower cost. Enhanced cable management allows the cables to effortlessly travel in and out with the display, preventing them from getting pinched or pulled loose when extended. |
| Packaged Quantity | 1 Unit |
| Product Type | Wall Mount |
Product Information | |
|---|---|
| Device Supported |
|
| Maximum Load Capacity | 56.70 kg |
| Minimum Screen Size Supported | 46" (116.84 cm) |
| Maximum Screen Size Supported | 60" (152.40 cm) |
| Minimum Adjustable Depth | 7.87 cm (3.10") |
| Maximum Adjustable Depth | 36.83 cm (14.50") |
| Features |
|
| Orientation | Landscape/Portrait |
| Mount Function | Video Wall |
Physical Characteristics | |
|---|---|
| Color Family | Black |
| Product Color | Black |
| Finishing |
|
| VESA Mount Compatible | Yes |
| Mounting Pattern |
|
| Form Factor | Wall Mountable |
| Height | 54.51 cm (21.46") |
| Width | 53.98 cm (21.25") |
| Depth | 36.98 cm (14.56") |
| Weight (Approximate) | 15.51 kg |
Miscellaneous | |
|---|---|
| Package Contents |
|
| Indoor/Outdoor | Indoor |
| Certifications & Standards | RoHS, TAA, VESA, UL |
| Manufacturer Product Class | Wall, Quick Release Pop-out |
| Assembly Required | Yes |
| TAA Compliant | Yes |
| UL Listed | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Warranty | |
|---|---|
| Limited Warranty | 5 Year |
| Mount Surface |
|---|
| Wall |
| Durability |
|
|---|
