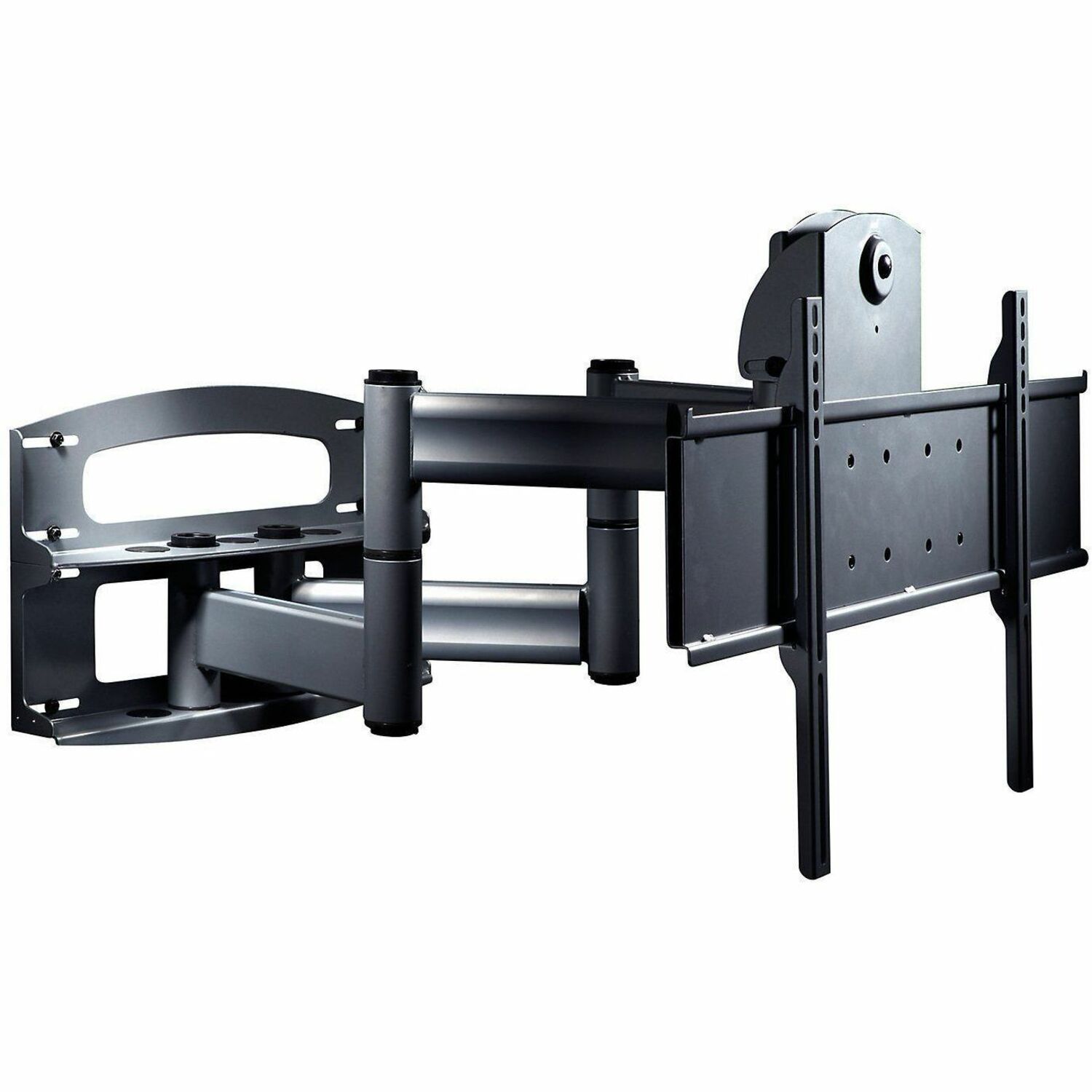

PLAV70-UNL
Designed to handle the heaviest displays, the PLAV70 features dual-arm, all-steel construction that holds displays up to 95" and weighing up to 200lb. The PLAV7's self-lubricating bushings enable your display to smoothly articulate, while adjustable tilt and pivot allow you to position your display for the optimal viewing angle. Swing, tilt and extend your display, even in and out of recessed cubby holes and custom frames with the vertical adjustment feature that provides the capability to raise or lower your display for a perfectly aligned installation.
No pricing available. Call for Quote.
Certifications:
Designed to handle the heaviest displays, the PLAV70 features dual-arm, all-steel construction that holds displays up to 95" and weighing up to 200lb. The PLAV7's self-lubricating bushings enable your display to smoothly articulate, while adjustable tilt and pivot allow you to position your display for the optimal viewing angle. Swing, tilt and extend your display, even in and out of recessed cubby holes and custom frames with the vertical adjustment feature that provides the capability to raise or lower your display for a perfectly aligned installation.
General Information | |
|---|---|
| Manufacturer | Peerless Industries, Inc |
| Manufacturer Part Number | PLAV70-UNL |
| Manufacturer Website Address | http://www.peerless-av.eu.com |
| Brand Name | Peerless-AV® |
| Product Series | PLAV70-UNL |
| Product Model | PLAV70-UNL |
| Product Name | PLAV70-UNL Mounting Arm |
| Marketing Information | Designed to handle the heaviest displays, the PLAV70 features dual-arm, all-steel construction that holds displays up to 95" and weighing up to 200lb. The PLAV7's self-lubricating bushings enable your display to smoothly articulate, while adjustable tilt and pivot allow you to position your display for the optimal viewing angle. Swing, tilt and extend your display, even in and out of recessed cubby holes and custom frames with the vertical adjustment feature that provides the capability to raise or lower your display for a perfectly aligned installation. |
| Packaged Quantity | 1 Unit |
| Product Type | Mounting Arm |
Product Information | |
|---|---|
| Device Supported | Display |
| Maximum Load Capacity | 90.72 kg |
| Minimum Screen Size Supported | 42" (106.68 cm) |
| Maximum Screen Size Supported | 95" (241.30 cm) |
| Minimum Adjustable Depth | 14.02 cm (5.52") |
| Maximum Adjustable Depth | 82.60 cm (32.52") |
| Features |
|
| Orientation | Horizontal |
| Mount Pattern | Universal |
Physical Characteristics | |
|---|---|
| Color Family | Black |
| Product Color | Black |
| Finishing |
|
| VESA Mount Compatible | Yes |
| Mounting Pattern |
|
| Product Material | Steel |
| Form Factor | Wall Mountable |
| Height | 42.90 cm (16.89") |
| Width | 85.09 cm (33.50") |
| Depth | 82.60 cm (32.52") |
Miscellaneous | |
|---|---|
| Package Contents |
|
| Indoor/Outdoor | Indoor |
| Certifications & Standards | RoHS, TAA, VESA, UL |
| Assembly Required | Yes |
| Country of Origin | United States |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Warranty | |
|---|---|
| Limited Warranty | 5 Year |
| Recessed |
| Minimum Tilt Angle | -5° |
|---|
| Maximum Tilt Angle | 10° |
|---|
| Minimum Swivel Angle | -45° |
|---|
| Maximum Swivel Angle | 180° |
|---|
| Mount Function |
|
|---|
| Mount Surface | Wall |
|---|
| Durability | Scratch Resistant |
|---|
| Weight (Approximate) | 28.58 kg |
|---|
