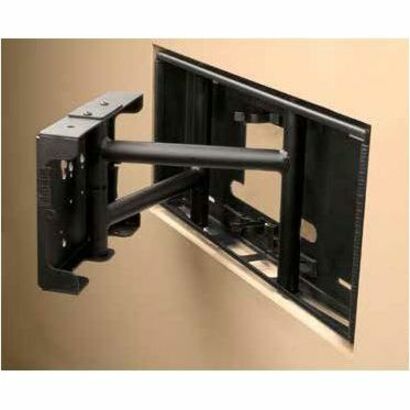

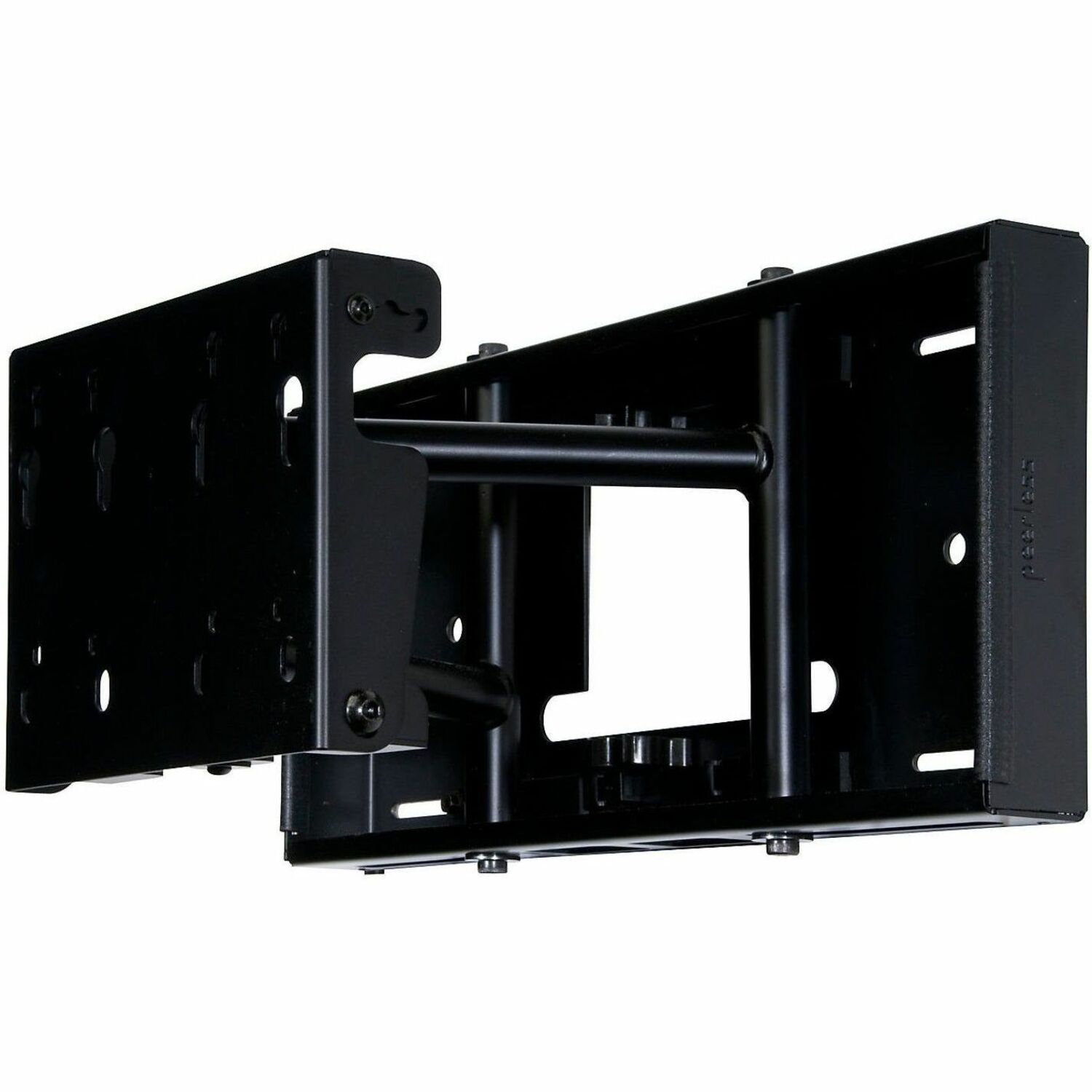

The SP85 Pull-Out Pivot Mount combines the best features of a wall mount and a pivot arm. In the closed position, the SP85 acts as a flat or tilting wall mount. At only 2.31" from the wall, its unique wall plate and built-in cable management neatly hide all components and cords. Extended, the SP85's sturdy arm construction smoothly glides the display out 1.68" from the wall and allows the flat panel display to pivot up to 45°. This feature not only enables the display to be positioned for an optimal viewing angle, but it also provides easy access to the back of the display for hassle-free maintenance. The SP85 is also ideal in applications where the display needs to be recessed into the wall, custom framed or aligned into a multi-display wall.
General Information | |
|---|---|
| Manufacturer | Peerless Industries, Inc |
| Manufacturer Part Number | SP850 |
| Manufacturer Website Address | http://www.peerless-av.eu.com |
| Brand Name | SmartMount® |
| Product Series | SP850 |
| Product Model | SP850 |
| Product Name | Pull-out Pivot Wall Mount For 32"-80" Displays |
| Marketing Information | The SP85 Pull-Out Pivot Mount combines the best features of a wall mount and a pivot arm. In the closed position, the SP85 acts as a flat or tilting wall mount. At only 2.31" from the wall, its unique wall plate and built-in cable management neatly hide all components and cords. Extended, the SP85's sturdy arm construction smoothly glides the display out 1.68" from the wall and allows the flat panel display to pivot up to 45°. This feature not only enables the display to be positioned for an optimal viewing angle, but it also provides easy access to the back of the display for hassle-free maintenance. The SP85 is also ideal in applications where the display needs to be recessed into the wall, custom framed or aligned into a multi-display wall. |
| Packaged Quantity | 1 Unit |
| Product Type | Wall Mount |
Product Information | |
|---|---|
| Device Supported | Flat Panel Display |
| Maximum Load Capacity | 68.04 kg |
| Minimum Screen Size Supported | 32" (81.28 cm) |
| Maximum Screen Size Supported | 80" (203.20 cm) |
| Minimum Adjustable Depth | 5.87 cm (2.31") |
| Maximum Adjustable Depth | 27.13 cm (10.68") |
| Features |
|
| Minimum Tilt Angle | 0° |
| Maximum Tilt Angle | 10° |
| Minimum Swivel Angle | -45° |
| Maximum Swivel Angle | 45° |
| Mount Function |
|
| Mount Surface |
|
| Durability |
|
Physical Characteristics | |
|---|---|
| Color Family | Black |
| Product Color | Black |
| Finishing |
|
| VESA Mount Compatible | Yes |
| Mounting Pattern |
|
| Form Factor | Wall Mountable |
| Height | 24.79 cm (9.76") |
| Width | 53.34 cm (21") |
| Depth | 27.13 cm (10.68") |
| Weight (Approximate) | 7.98 kg |
Miscellaneous | |
|---|---|
| Package Contents |
|
| Certifications & Standards | RoHS, TAA, VESA, UL |
| Manufacturer Product Class | Pivot |
| Assembly Required | Yes |
| TAA Compliant | Yes |
| UL Listed | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Warranty | |
|---|---|
| Limited Warranty | 5 Year |
SP850
The SP85 Pull-Out Pivot Mount combines the best features of a wall mount and a pivot arm. In the closed position, the SP85 acts as a flat or tilting wall mount. At only 2.31" from the wall, its unique wall plate and built-in cable management neatly hide all components and cords. Extended, the SP85's sturdy arm construction smoothly glides the display out 1.68" from the wall and allows the flat panel display to pivot up to 45°. This feature not only enables the display to be positioned for an optimal viewing angle, but it also provides easy access to the back of the display for hassle-free maintenance. The SP85 is also ideal in applications where the display needs to be recessed into the wall, custom framed or aligned into a multi-display wall.
No pricing available. Call for Quote.
Product Name
Peerless-AV® Pull-out Pivot Wall Mount For 32"-80" Displays
Peerless-AV® Pull-out Pivot Wall Mount For 32"-80" Displays
Minimum Screen Size Supported
32" (81.28 cm)
32" (81.28 cm)
Maximum Screen Size Supported
80" (203.20 cm)
80" (203.20 cm)
Maximum Load Capacity
68.04 kg
68.04 kg
Mounting Pattern
600 x 400
Features
This display size range is simply a guideline for product selection. Displays larger than the screen size range may still be compatible as long as they fall within the VESA® pattern and max weight of the Peerless-AV® product.
