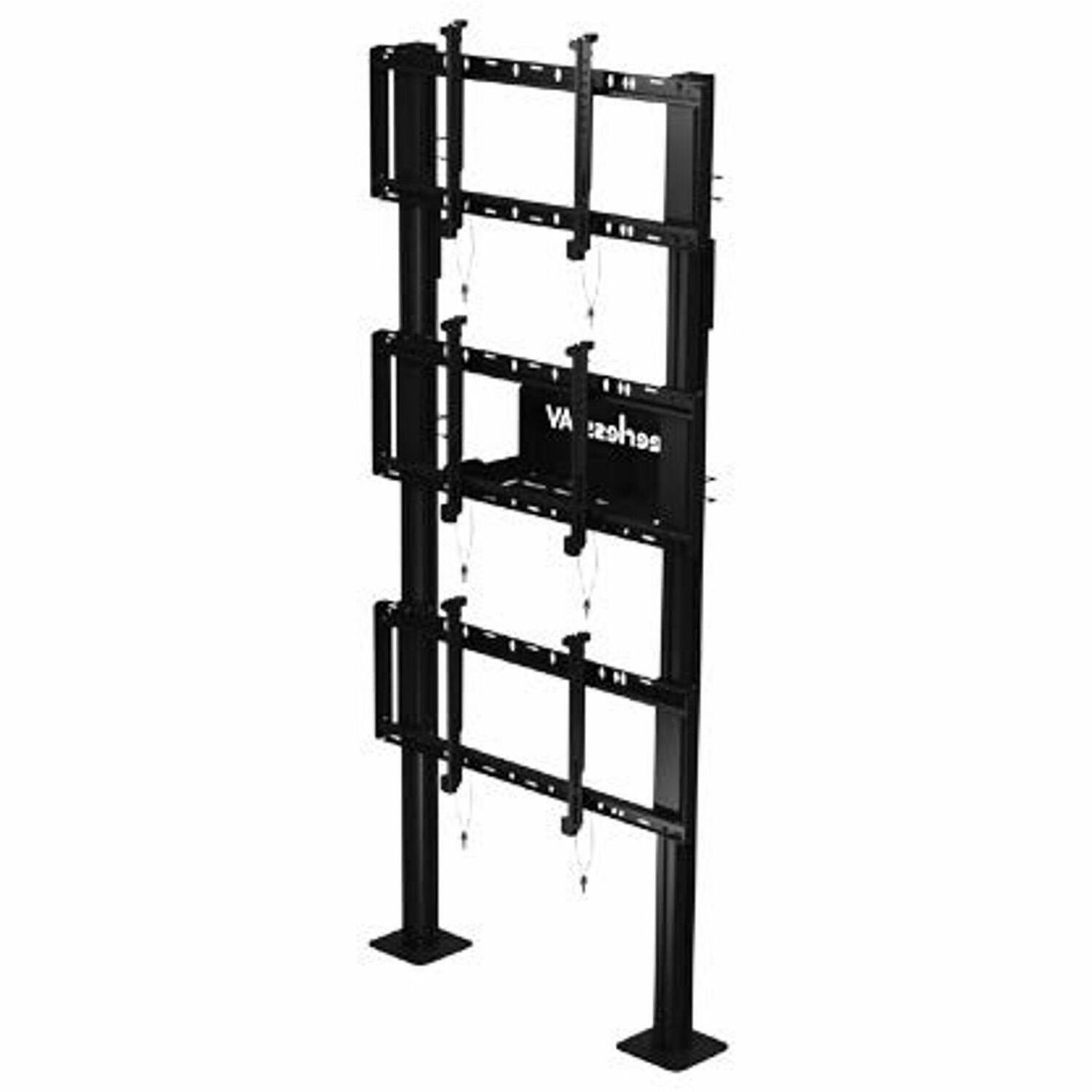

DS-S560-1X3
Peerless-AV®'s Modular Video Wall Pedestal Mount encompasses an assortment of useful features that eliminate the need for extra tools and hardware, all while ensuring your application is secure and looks professional. The DS-S560-1X3's tool-less micro adjustment provides the time saving feature you need for perfect display alignment. The built-in cable management and media storage features provide a safe, central location to house your components, and help create a clean and clutter-free appearance. If you're looking for added stability, this mount will be mounted to concrete structures without additional wall or ceiling supports in any retail, public transportation or any other high traffic location.
No pricing available. Call for Quote.
Product Name
Peerless-AV® SmartMount®Modular Video Wall Pedestal Mount 1x3 Configuration FOR 46˘ TO 60˘ Displays
Peerless-AV® Modular Video Wall Pedestal Mount 2x2 Configuration For 46˘ to 60˘ displays
Peerless-AV® SmartMount® Back-to-Back Modular Video Wall Pedestal Mount 2x2 Configuration FOR 46" TO 60" DISPLAYS
Minimum Screen Size Supported
46" (116.84 cm)
46" (116.84 cm)
-
Maximum Screen Size Supported
60" (152.40 cm)
60" (152.40 cm)
60" (152.40 cm)
Maximum Load Capacity
170.10 kg
226.80 kg
362.87 kg
Mounting Pattern
600 x 400
600 x 400
Features
This display size range is simply a guideline for product selection. Displays larger than the screen size range may still be compatible as long as they fall within the VESA® pattern and max weight of the Peerless-AV® product.
Certifications:
Peerless-AV®'s Modular Video Wall Pedestal Mount encompasses an assortment of useful features that eliminate the need for extra tools and hardware, all while ensuring your application is secure and looks professional. The DS-S560-1X3's tool-less micro adjustment provides the time saving feature you need for perfect display alignment. The built-in cable management and media storage features provide a safe, central location to house your components, and help create a clean and clutter-free appearance. If you're looking for added stability, this mount will be mounted to concrete structures without additional wall or ceiling supports in any retail, public transportation or any other high traffic location.
General Information | |
|---|---|
| Manufacturer | Peerless Industries, Inc |
| Manufacturer Part Number | DS-S560-1X3 |
| Manufacturer Website Address | http://www.peerless-av.eu.com |
| Brand Name | SmartMount® |
| Product Series | DS-S560-1X3 |
| Product Model | DS-S560-1X3 |
| Product Name | Modular Video Wall Pedestal Mount 1x3 Configuration for 46" to 60" Displays |
| Marketing Information | Peerless-AV®'s Modular Video Wall Pedestal Mount encompasses an assortment of useful features that eliminate the need for extra tools and hardware, all while ensuring your application is secure and looks professional. The DS-S560-1X3's tool-less micro adjustment provides the time saving feature you need for perfect display alignment. The built-in cable management and media storage features provide a safe, central location to house your components, and help create a clean and clutter-free appearance. If you're looking for added stability, this mount will be mounted to concrete structures without additional wall or ceiling supports in any retail, public transportation or any other high traffic location. |
| Packaged Quantity | 1 Unit |
| Product Type | Mounting Pedestal |
Product Information | |
|---|---|
| Device Supported |
|
| Number of Displays Supported | 3 |
| Maximum Load Capacity | 170.10 kg |
| Minimum Screen Size Supported | 46" (116.84 cm) |
| Maximum Screen Size Supported | 60" (152.40 cm) |
| Features |
|
| Mount Pattern Compatibility Type | Universal |
| Mount Function |
|
Physical Characteristics | |
|---|---|
| Color Family | Black |
| Product Color | Black |
| Finishing | Powder Coated |
| VESA Mount Compatible | Yes |
| Mounting Pattern | 600 x 400 |
| Minimum Mounting Pattern | 200 x 200 |
| Product Material | Aluminium |
| Height | 237.26 cm (93.41") |
| Width | 105.41 cm (41.50") |
| Depth | 33.78 cm (13.30") |
Miscellaneous | |
|---|---|
| Package Contents |
|
| Application/Usage | Retail |
| Indoor/Outdoor | Indoor |
| Certifications & Standards | RoHS, TAA, VESA |
| Manufacturer Product Class | Pedestal |
| Assembly Required | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Warranty | |
|---|---|
| Limited Warranty | 5 Year |
| Weight (Approximate) |
|---|
| 102.06 kg |
