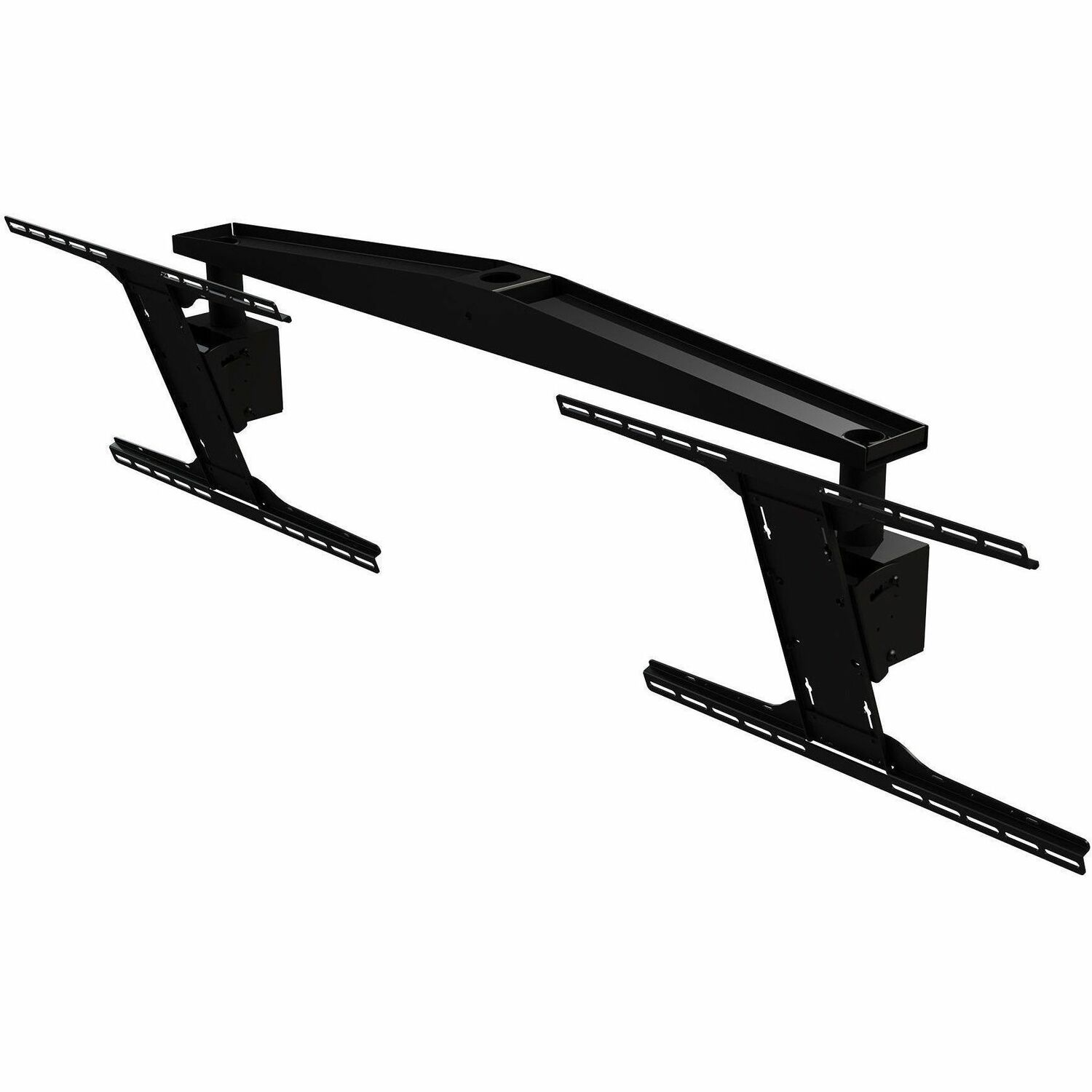

The DST970X2 Dual-Display Ceiling Mount from Peerless-AV® is the ideal mount for a digital signage application where two displays are required. The heavy gauge steel construction has been designed to effortlessly support two displays from a single column. By doing this, installation time is reduced, costs are lowered, and overall aesthetics are increased. With independent swivel and tilt, each display can set to the optimal position to reach the target audience. The universal adaptors, which accommodate mounting hole patterns up to 600 x 400mm, are compatible with most displays in the 40"-70" range.
General Information | |
|---|---|
| Manufacturer | Peerless Industries, Inc |
| Manufacturer Part Number | dst970x2 |
| Manufacturer Website Address | http://www.peerless-av.eu.com |
| Brand Name | Peerless-AV® |
| Product Series | DST970X2 |
| Product Model | DST970X2 |
| Product Name | Dual Display Ceiling Mount for 40" to 70" Displays |
| Marketing Information | The DST970X2 Dual-Display Ceiling Mount from Peerless-AV® is the ideal mount for a digital signage application where two displays are required. The heavy gauge steel construction has been designed to effortlessly support two displays from a single column. By doing this, installation time is reduced, costs are lowered, and overall aesthetics are increased. With independent swivel and tilt, each display can set to the optimal position to reach the target audience. The universal adaptors, which accommodate mounting hole patterns up to 600 x 400mm, are compatible with most displays in the 40"-70" range. |
| Packaged Quantity | 1 Unit |
| Product Type | Ceiling Mount |
Product Information | |
|---|---|
| Device Supported | Digital Signage Display |
| Number of Displays Supported | 2 |
| Minimum Load Capacity | 56.70 kg |
| Maximum Load Capacity | 113.40 kg |
| Minimum Screen Size Supported | 40" (101.60 cm) |
| Maximum Screen Size Supported | 70" (177.80 cm) |
| Features |
|
| Mount Pattern | Universal |
| Mount Function |
|
| Mount Surface | Ceiling |
Physical Characteristics | |
|---|---|
| Color Family | Black |
| Product Color | Black |
| Finishing | Powder Coated |
| VESA Mount Compatible | Yes |
| Mounting Pattern | 600 x 400 |
| Product Material | Steel |
| Form Factor | Ceiling Mountable |
| Height | 42.55 cm (16.75") |
| Width | 171.75 cm (67.62") |
| Depth | 11.23 cm (4.42") |
| Weight (Approximate) | 22.68 kg |
Miscellaneous | |
|---|---|
| Package Contents |
|
| Manufacturer Product Class | Ceiling Mount |
| Assembly Required | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Warranty | |
|---|---|
| Limited Warranty | 5 Year |
DST970X2
The DST970X2 Dual-Display Ceiling Mount from Peerless-AV® is the ideal mount for a digital signage application where two displays are required. The heavy gauge steel construction has been designed to effortlessly support two displays from a single column. By doing this, installation time is reduced, costs are lowered, and overall aesthetics are increased. With independent swivel and tilt, each display can set to the optimal position to reach the target audience. The universal adaptors, which accommodate mounting hole patterns up to 600 x 400mm, are compatible with most displays in the 40"-70" range.
No pricing available. Call for Quote.
Product Name
Peerless-AV® Dual Display Ceiling Mount for 40" to 70" Displays
Peerless-AV® Multi-Display Ceiling Mount with 4 Telescoping Arms For 37" to 75" Displays
Minimum Screen Size Supported
40" (101.60 cm)
37" (93.98 cm)
Maximum Screen Size Supported
70" (177.80 cm)
75" (190.50 cm)
Maximum Load Capacity
113.40 kg
226.80 kg
Mounting Pattern
600 x 400
730 x 405
Features
This display size range is simply a guideline for product selection. Displays larger than the screen size range may still be compatible as long as they fall within the VESA® pattern and max weight of the Peerless-AV® product.
