Peerless-AV® 14"X9" In-Wall Box for Recessed Power and AV Components
IB14X9-W

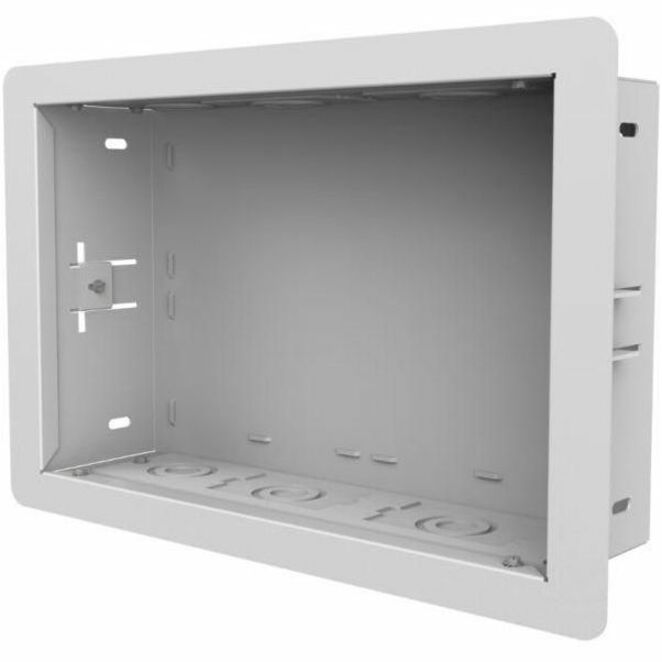

Peerless-AV's new In-Wall Boxes are designed to provide ultimate flexibility for any installation. The removable trim ring allows the installation to take place before or after drywall is installed. Flexible mounting options allow securement by two studs, a single stud or drywall only. Removable mounting plates reduce installation time by allowing an installer to complete wiring terminations outside the In-Wall Box.
No pricing available. Call for Quote.
Certifications:
Product Features
- Installs between 16" (406mm) stud centers, to a single stud or directly into a drywall opening
- Knock-outs for 3/4" , 1.0" , 1.25" and 1.5" conduit
- Cut-Out Dimensions: 14.4" x 9.4" (365 x 238mm)
- Adjustable Trim Ring allows use of 3/8" - 3/4" drywall thickness

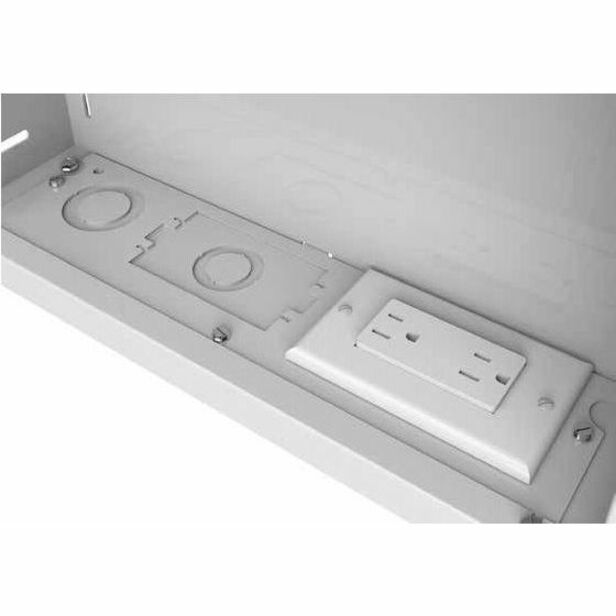

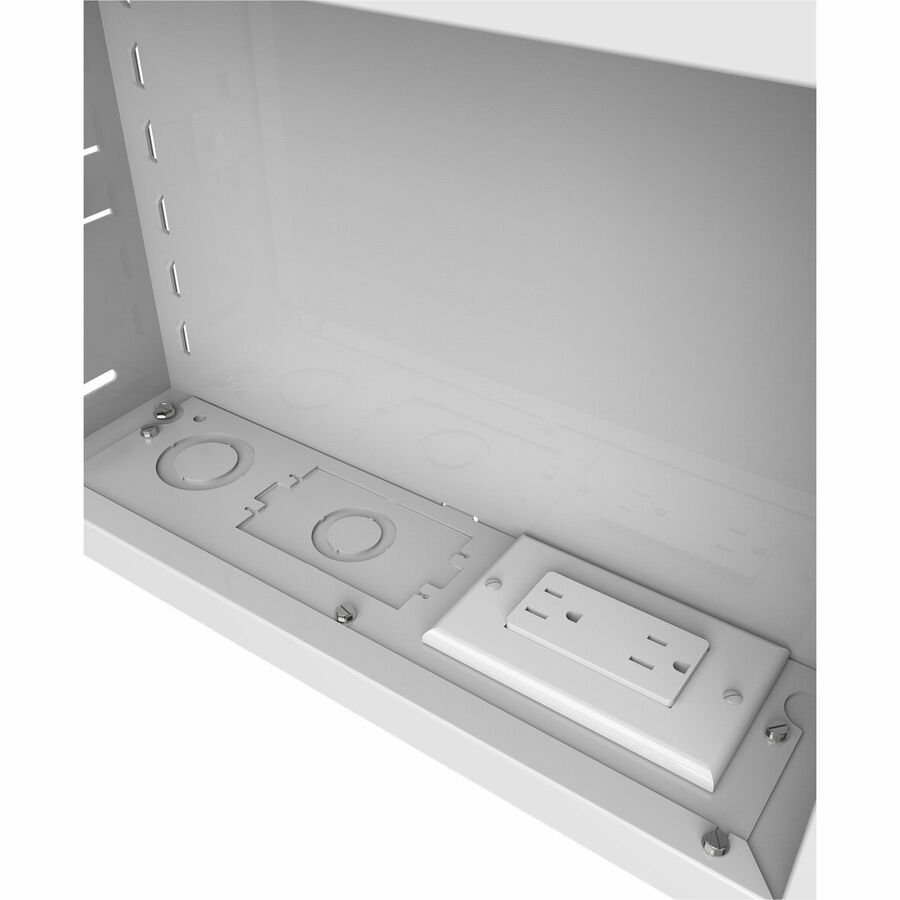

- Knock-outs provide the ability to mount up to four single gang outlets. Compatible with RACO 420 gang box or equivalent.
- Integrated cable tie locations
- UL 2416 listed
Product Specifications
General Information
Peerless-AV's new In-Wall Boxes are designed to provide ultimate flexibility for any installation. The removable trim ring allows the installation to take place before or after drywall is installed. Flexible mounting options allow securement by two studs, a single stud or drywall only. Removable mounting plates reduce installation time by allowing an installer to complete wiring terminations outside the In-Wall Box.
General Information | |
|---|---|
| Manufacturer | Peerless Industries, Inc |
| Manufacturer Part Number | IB14X9W |
| Manufacturer Website Address | http://www.peerless-av.eu.com |
| Brand Name | Peerless-AV® |
| Product Series | IB14X9-W |
| Product Model | IB14X9-W |
| Product Name | 14"x9" In-Wall Box for Recessed Power and AV Components |
| Marketing Information | Peerless-AV's new In-Wall Boxes are designed to provide ultimate flexibility for any installation. The removable trim ring allows the installation to take place before or after drywall is installed. Flexible mounting options allow securement by two studs, a single stud or drywall only. Removable mounting plates reduce installation time by allowing an installer to complete wiring terminations outside the In-Wall Box. |
| Packaged Quantity | 1 Unit |
| Product Type | Mounting Box |
Product Information
- A/V Equipment
- Power Equipment
- Knockout
- Adjustable
- Cable Tie Slot
Product Information | |
|---|---|
| Device Supported |
|
| Maximum Load Capacity | 11.34 kg |
| Features |
|
| Mount Profile | Recessed |
| Mount Function | Wall Mount |
| Mount Surface | Wall |
| Durability | Scratch Resistant |
Physical Characteristics
- Fused Epoxy
- Powder Coated
Physical Characteristics | |
|---|---|
| Color Family | White |
| Product Color | White |
| Finishing |
|
| Form Factor | Wall Mountable |
| Height | 26.82 cm (10.56") |
| Width | 40.01 cm (15.75") |
| Depth | 9.91 cm (3.90") |
| Weight (Approximate) | 2.49 kg |
Miscellaneous
- 14"x9" In-Wall Box for Recessed Power and AV Components
- Trim Ring
- 2 x Drywall Clamps
- 2 x Mounting Plates
- Wood Stud Mounting Hardware
- In-wall
- Drywall
- Stud
RACO 420 gang box or equivalent
Miscellaneous | |
|---|---|
| Package Contents |
|
| Application/Usage |
|
| Compatibility | RACO 420 gang box or equivalent |
| Certifications & Standards | RoHS, TAA, UL |
| Manufacturer Product Class | In wall box |
| Assembly Required | Yes |
| TAA Compliant | Yes |
| UL Listed | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Warranty
Warranty | |
|---|---|
| Limited Warranty | 5 Year |
