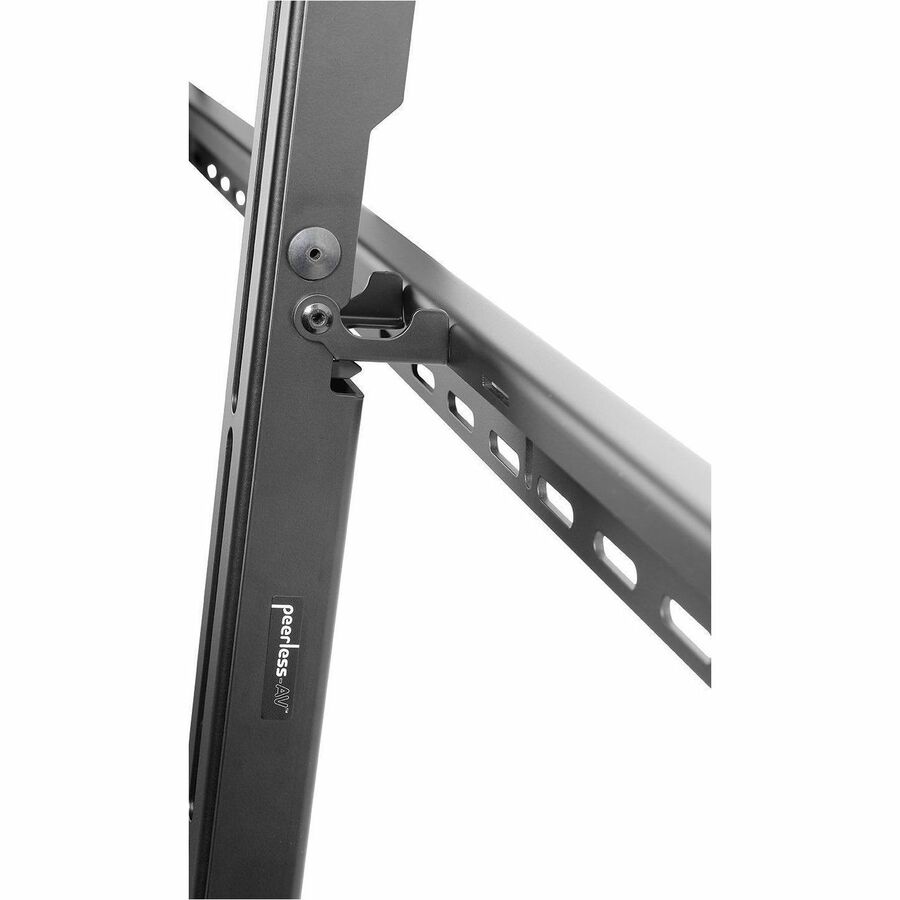

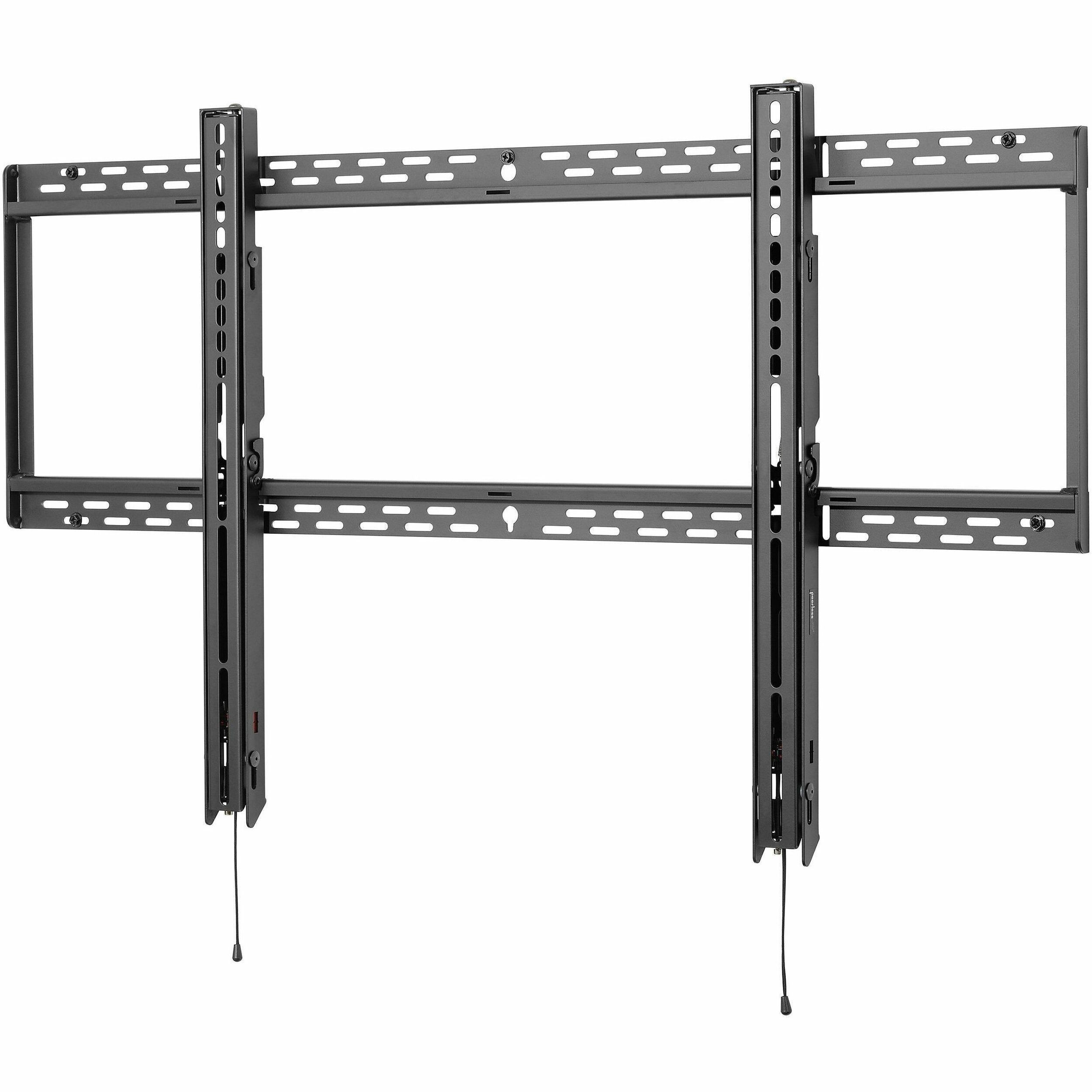

Peerless-AV's SmartMountTM Universal Flat Wall Mount delivers an ultra-slim profile designed to hold large displays up to 350lb. Installation and maintenance are made easy with the SF680's robust feature set. Auto-latching adaptor rails automatically secure the display without the use of a tool. The mount's built-in kickstand holds the display safely from the wall during cable routing, while the open wall plate allows for increased electrical and cable management options. Horizontal and vertical display adjustment allow for quick fine-tuning to display size of the mounted display.
General Information | |
|---|---|
| Manufacturer | Peerless Industries, Inc |
| Manufacturer Part Number | SF680P |
| Manufacturer Website Address | http://www.peerless-av.eu.com |
| Brand Name | SmartMount® |
| Product Series | SF680P |
| Product Model | SF680P |
| Product Name | Universal Flat Wall Mount for 60" to 98" Displays |
| Marketing Information | Peerless-AV's SmartMountTM Universal Flat Wall Mount delivers an ultra-slim profile designed to hold large displays up to 350lb. Installation and maintenance are made easy with the SF680's robust feature set. Auto-latching adaptor rails automatically secure the display without the use of a tool. The mount's built-in kickstand holds the display safely from the wall during cable routing, while the open wall plate allows for increased electrical and cable management options. Horizontal and vertical display adjustment allow for quick fine-tuning to display size of the mounted display. |
| Packaged Quantity | 1 Unit |
| Product Type | Wall Mount |
Product Information | |
|---|---|
| Device Supported | Display |
| Maximum Load Capacity | 158.76 kg |
| Minimum Screen Size Supported | 60" (152.40 cm) |
| Maximum Screen Size Supported | 98" (248.92 cm) |
| Features |
|
| Mount Pattern | Universal |
| Mount Profile | Low Profile |
| Mount Function |
|
| Mount Surface | Wall |
| Durability | Scratch Resistant |
Physical Characteristics | |
|---|---|
| Color Family | Black |
| Product Color | Semi-gloss Black |
| Finishing |
|
| VESA Mount Compatible | Yes |
| Mounting Pattern |
|
| Form Factor | Wall Mountable |
| Height | 69.80 cm (27.48") |
| Width | 116.21 cm (45.75") |
| Depth | 4.39 cm (1.73") |
| Weight (Approximate) | 7.85 kg |
Miscellaneous | |
|---|---|
| Package Contents |
|
| Indoor/Outdoor | Indoor |
| Certifications & Standards | RoHS, TAA, VESA, UL, OSHPD |
| Manufacturer Product Class | Flat |
| Assembly Required | Yes |
| TAA Compliant | Yes |
| UL Listed | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Warranty | |
|---|---|
| Limited Warranty | 5 Year |
SF680P
Peerless-AV's SmartMountTM Universal Flat Wall Mount delivers an ultra-slim profile designed to hold large displays up to 350lb. Installation and maintenance are made easy with the SF680's robust feature set. Auto-latching adaptor rails automatically secure the display without the use of a tool. The mount's built-in kickstand holds the display safely from the wall during cable routing, while the open wall plate allows for increased electrical and cable management options. Horizontal and vertical display adjustment allow for quick fine-tuning to display size of the mounted display.
No pricing available. Call for Quote.
Product Name
Peerless-AV® SmartMount Universal Flat Wall Mount for 60" to 98" displays
Peerless-AV® SmartMount Universal Tilt Wall Mount for 60" to 98" Flat Panel Displays
Peerless-AV® Universal Portrait Tilt Wall Mount for 46" to 90" displays
Minimum Screen Size Supported
60" (152.40 cm)
60" (152.40 cm)
46" (116.84 cm)
Maximum Screen Size Supported
98" (248.92 cm)
98" (248.92 cm)
90" (228.60 cm)
Maximum Load Capacity
158.76 kg
158.76 kg
158.76 kg
Mounting Pattern
Features
This display size range is simply a guideline for product selection. Displays larger than the screen size range may still be compatible as long as they fall within the VESA® pattern and max weight of the Peerless-AV® product.
Certifications:
