SA771PU

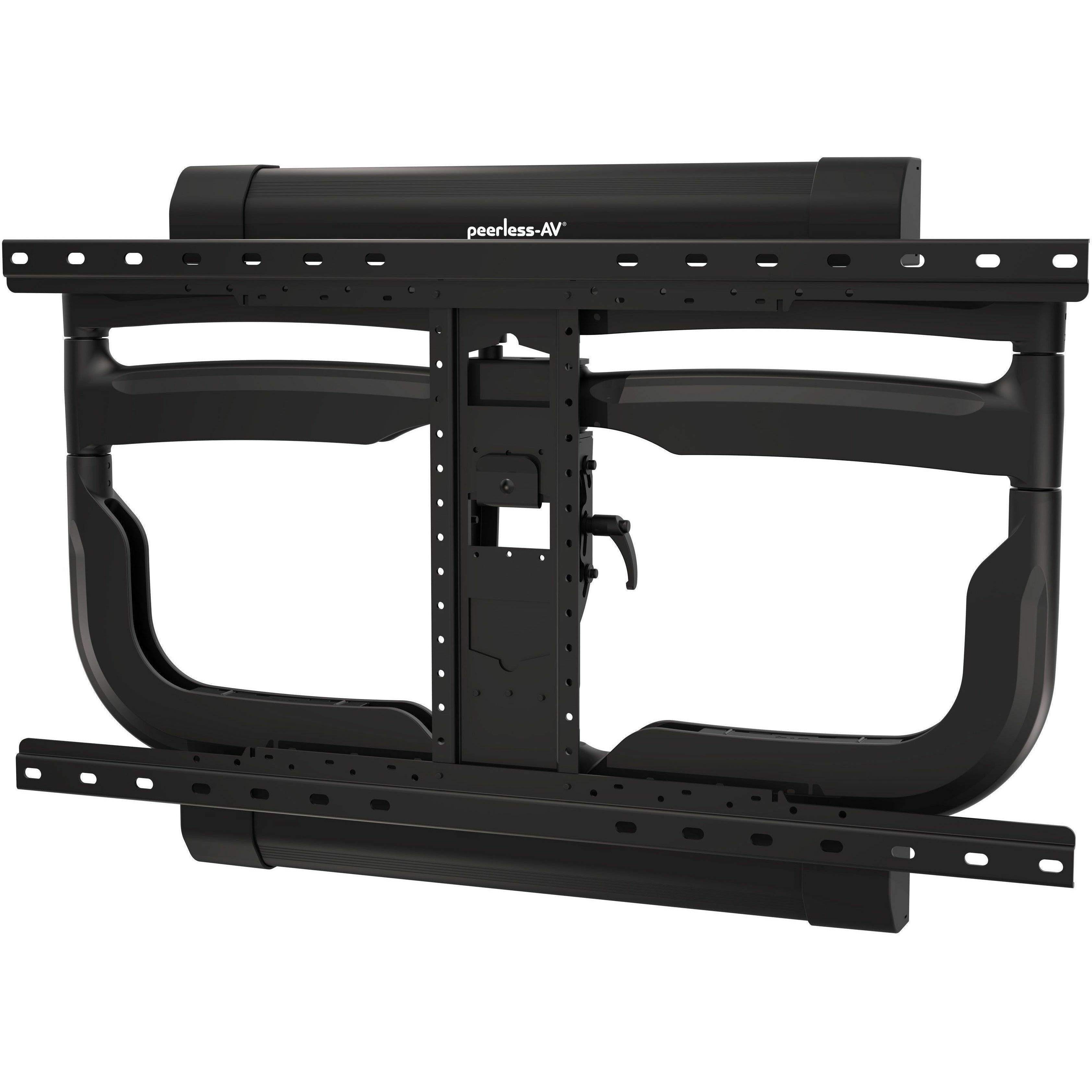

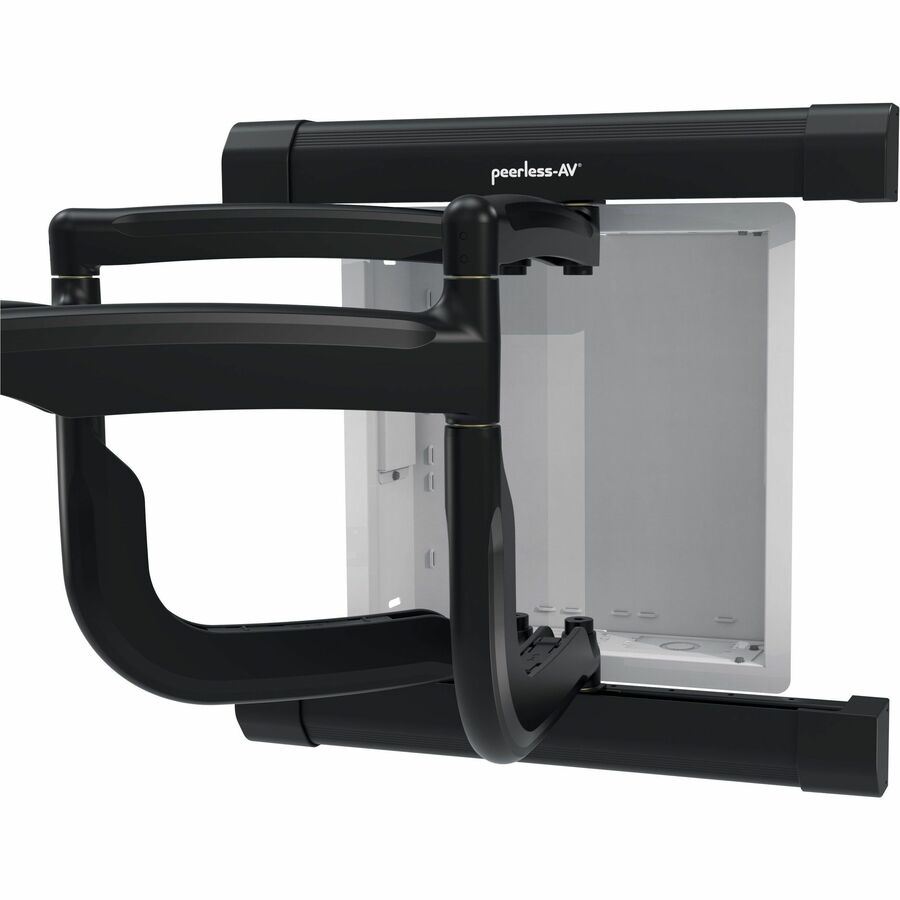

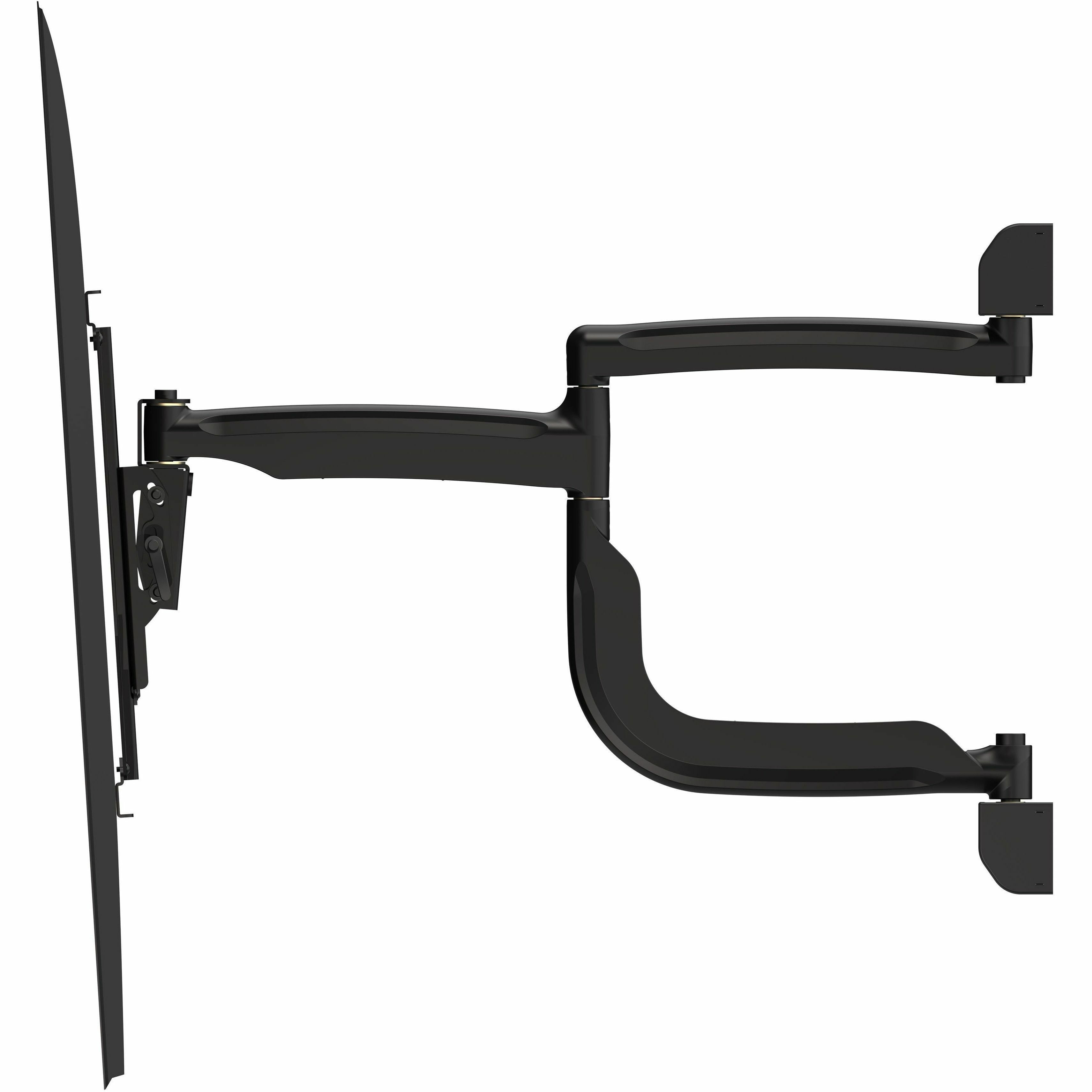

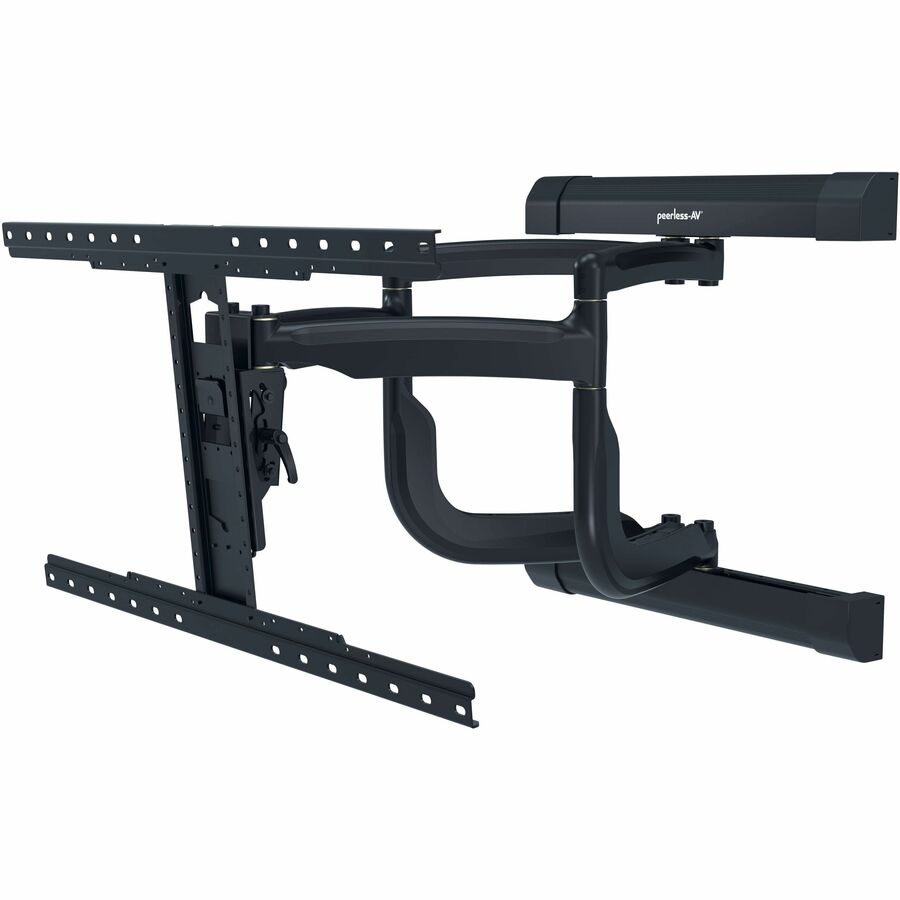

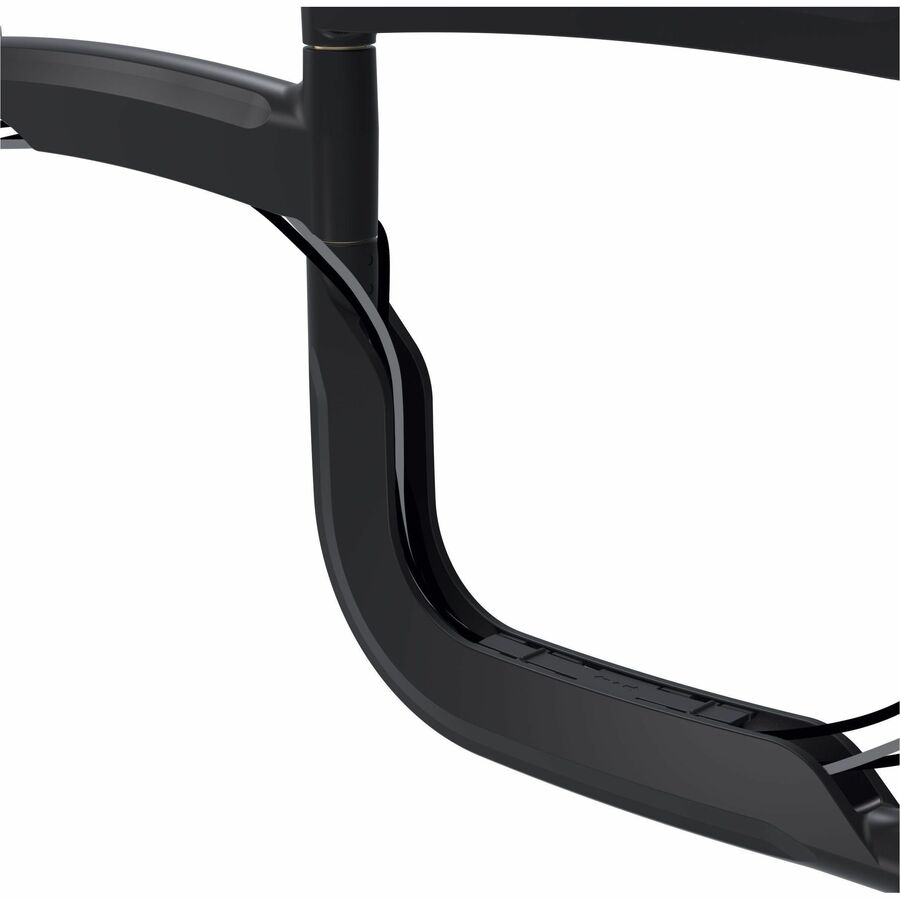

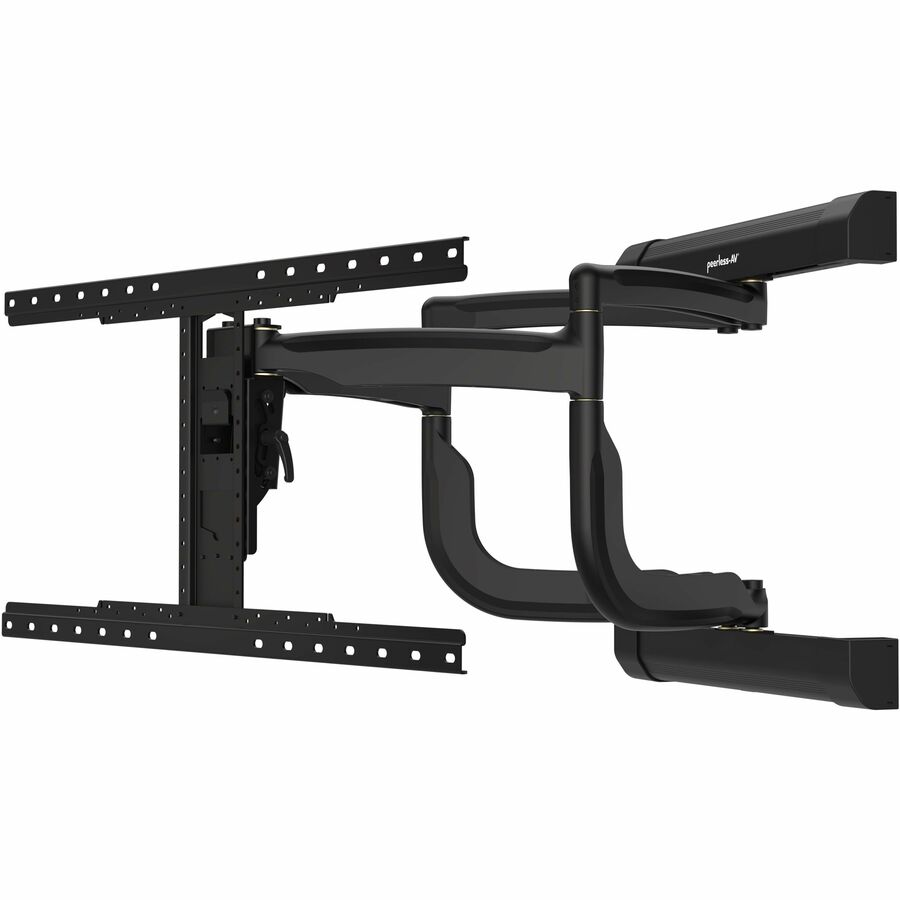

Peerless-AV's SmartMount® Articulating Wall Mount series has been redesigned to accommodate larger displays, offering enhanced versatility and mounting options. The I-shaped adaptor centers displays, regardless of the VESA® pattern on the back, which eliminates hassle and extra costs when upgrading displays. The SA771PU extends displays up to 30.5" (774mm) or retracts to 3.0" (76mm) from the wall, granting increased swivel for large displays. Compatibility with In-Wall Box accessories (IB14X9-W, IB14X14-W) offers easier access to power or AV devices. Horizontal adjustment range is ±8" to center a display on a 16" stud-spaced wall. Meanwhile, the Hook-and-Hang™ feature produces simplified installation and One-Touch™ tilt technology provides an optimal viewing angle. Integrated cable management ensures a clean and professional installation.
No pricing available. Call for Quote.
This display size range is simply a guideline for product selection. Displays larger than the screen size range may still be compatible as long as they fall within the VESA® pattern and max weight of the Peerless-AV® product.
Certifications:
Peerless-AV's SmartMount® Articulating Wall Mount series has been redesigned to accommodate larger displays, offering enhanced versatility and mounting options. The I-shaped adaptor centers displays, regardless of the VESA® pattern on the back, which eliminates hassle and extra costs when upgrading displays. The SA771PU extends displays up to 30.5" (774mm) or retracts to 3.0" (76mm) from the wall, granting increased swivel for large displays. Compatibility with In-Wall Box accessories (IB14X9-W, IB14X14-W) offers easier access to power or AV devices. Horizontal adjustment range is ±8" to center a display on a 16" stud-spaced wall. Meanwhile, the Hook-and-Hang™ feature produces simplified installation and One-Touch™ tilt technology provides an optimal viewing angle. Integrated cable management ensures a clean and professional installation.
General Information | |
|---|---|
| Manufacturer | Peerless Industries, Inc |
| Manufacturer Part Number | SA771PU |
| Manufacturer Website Address | http://www.peerless-av.eu.com |
| Brand Name | SmartMount® |
| Product Series | SA771PU |
| Product Model | SA771PU |
| Product Name | Articulating Wall Mount for 50" to 90"+ Displays |
| Marketing Information | Peerless-AV's SmartMount® Articulating Wall Mount series has been redesigned to accommodate larger displays, offering enhanced versatility and mounting options. The I-shaped adaptor centers displays, regardless of the VESA® pattern on the back, which eliminates hassle and extra costs when upgrading displays. The SA771PU extends displays up to 30.5" (774mm) or retracts to 3.0" (76mm) from the wall, granting increased swivel for large displays. Compatibility with In-Wall Box accessories (IB14X9-W, IB14X14-W) offers easier access to power or AV devices. Horizontal adjustment range is ±8" to center a display on a 16" stud-spaced wall. Meanwhile, the Hook-and-Hang™ feature produces simplified installation and One-Touch™ tilt technology provides an optimal viewing angle. Integrated cable management ensures a clean and professional installation. |
| Packaged Quantity | 1 Unit |
| Product Type | Wall Mount |
Product Information | |
|---|---|
| Device Supported | Display |
| Maximum Load Capacity | 90.72 kg |
| Minimum Screen Size Supported | 50" (127 cm) |
| Maximum Screen Size Supported | 90" (228.60 cm) |

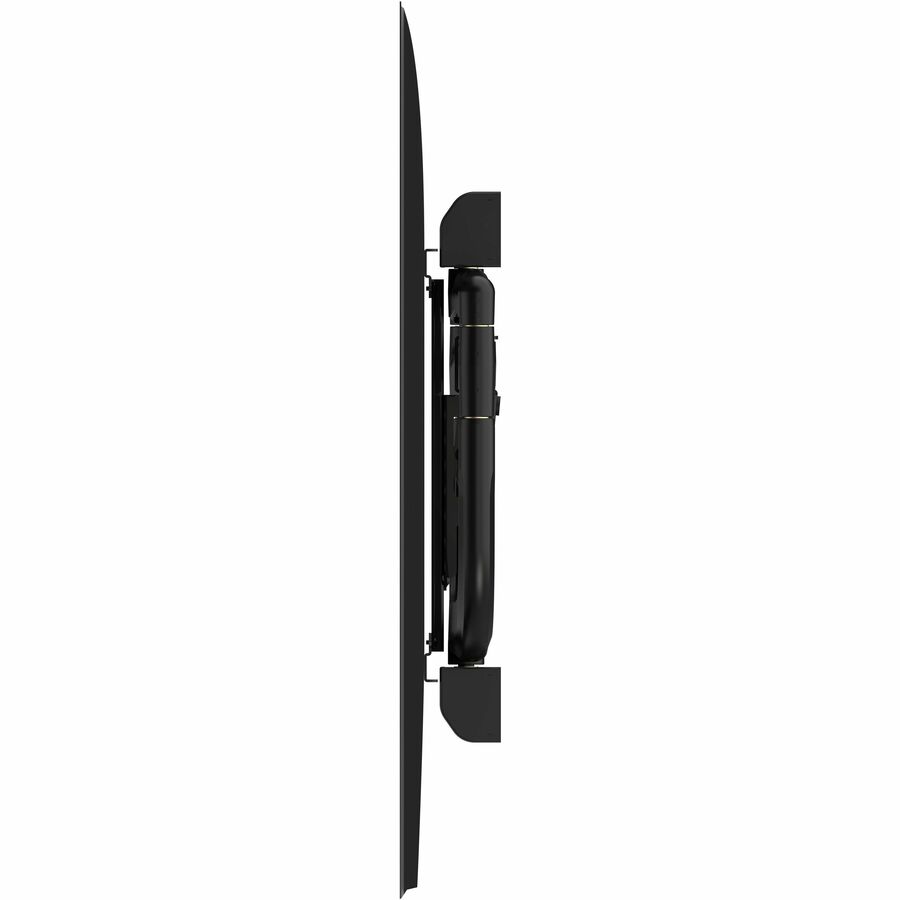

| Minimum Adjustable Depth | 7.62 cm (3") |
| Maximum Adjustable Depth | 77.47 cm (30.50") |
| Features |
|
| Minimum Tilt Angle | 5° |
| Maximum Tilt Angle | 15° |
Physical Characteristics | |
|---|---|
| Color Family | Black |
| Product Color | Semi-gloss Black |
| Finishing | Fused Epoxy |
| VESA Mount Compatible | Yes |
| Mounting Pattern | 800 x 400 |
| Minimum Mounting Pattern | 200 x 100 |
| Form Factor | Wall Mountable |
| Height | 53.49 cm (21.06") |
| Width | 82.19 cm (32.36") |
| Depth | 77.47 cm (30.50") |
Miscellaneous | |
|---|---|
| Package Contents |
|
| Application/Usage |
|
| Certifications & Standards | RoHS, TAA, VESA, UL |
| Manufacturer Product Class | Articulating |
| Assembly Required | Yes |
| TAA Compliant | Yes |
| UL Listed | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Warranty | |
|---|---|
| Limited Warranty | Lifetime |
| Maximum Swivel Angle |
|---|
| 90° |
| Mount Function |
|
|---|
| Mount Surface |
|
|---|
| Durability | Scratch Resistant |
|---|
| Weight (Approximate) |
|---|
| 16.51 kg |
