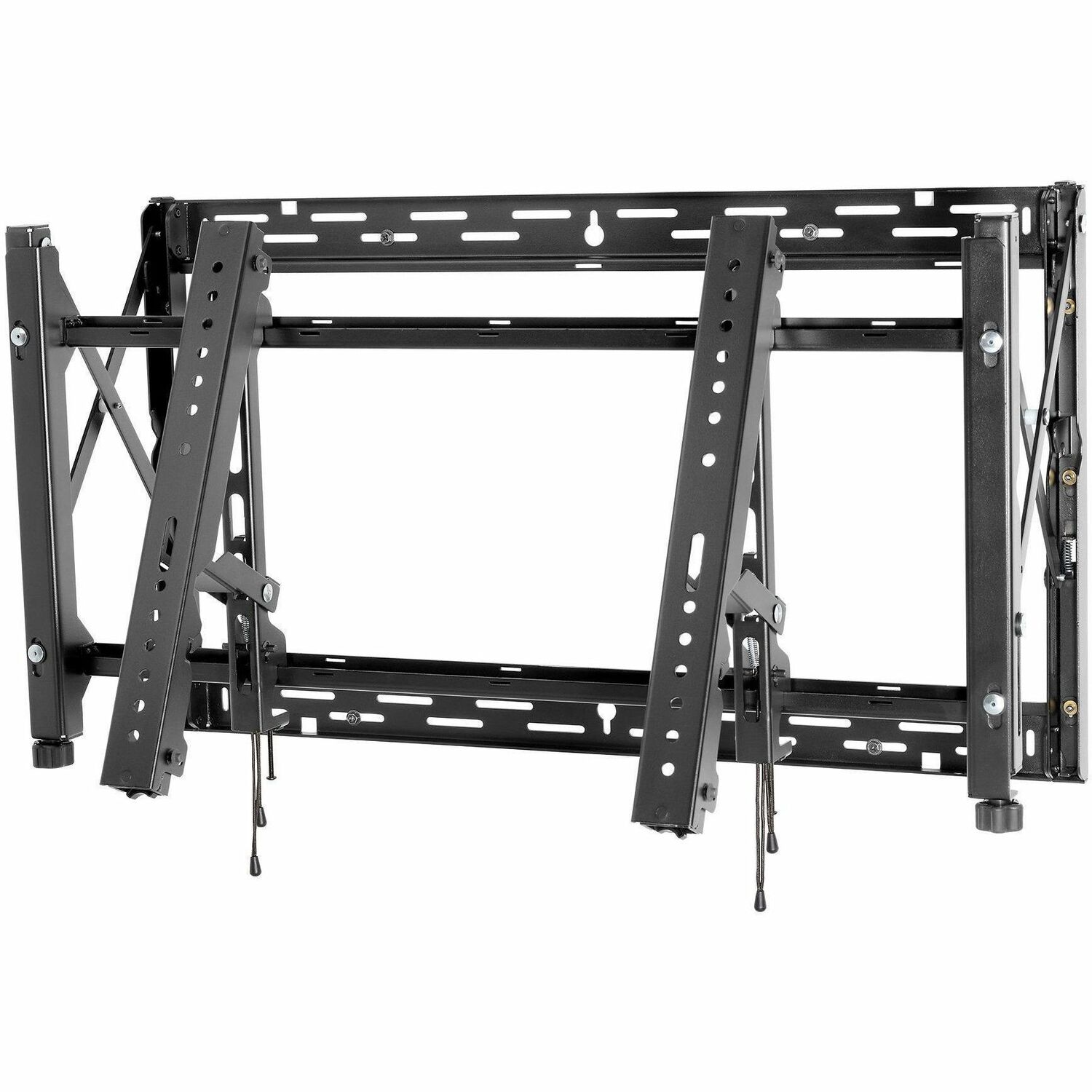

DS-VW765-LAND
Video walls should be easy to configure, quick to install, and a snap to maintain. No, it's not a dream, it's the DS-VW765-LAND Full-Service Video Wall Mount from Peerless-AV. Create any configuration imaginable, but leave the tedious calculations to the custom wall plate spacers. Just install the first mount. Then use the custom wall plate spacers to perfectly place each additional mount on the wall. No measuring, no guessing, no mistakes. It couldn't be simpler. The innovative design combined with a mount that is ready-to-install right out of the box makes this the fastest installing video wall system ever. Now in a design that is 2% lighter than previous models and loaded with time saving features like no-tool-required micro-adjustments and easy-access to any display for quick serviceability it's the ultimate video wall mounting solution.
Product Datasheet
Product Name
Peerless-AV® SmartMount™ Full-Service Video Wall Mount- Landscape For 40" to 65" Displays
Peerless-AV® Full Service Thin Video Wall Mount with Quick Release For 46'' to 65'' Displays
Peerless-AV® SmartMount®Portable Video Wall Cart 2x2, 3x2 or 3x3 Configuration For 46" to 55" Displays
Peerless-AV® Modular Video Wall Pedestal Mount 3x3 Configuration For 46" to 55" displays
Peerless-AV® SmartMount™ Flat Video Wall Mount 2X2 Kit FOR 46" TO 55" DISPLAYS
Peerless-AV® SmartMount™ Supreme Full Service Video Wall Mount for 46" to 60" displays
Peerless-AV® Multi-Display Ceiling Mount with 4 Telescoping Arms For 37" to 75" Displays
Minimum Screen Size Supported
40" (101.60 cm)
46" (116.84 cm)
46" (116.84 cm)
-
46" (116.84 cm)
46" (116.84 cm)
37" (93.98 cm)
Maximum Screen Size Supported
65" (165.10 cm)
65" (165.10 cm)
55" (139.70 cm)
55" (139.70 cm)
55" (139.70 cm)
60" (152.40 cm)
75" (190.50 cm)
Maximum Load Capacity
56.70 kg
36.29 kg
408.23 kg
408.23 kg
272.16 kg
56.70 kg
226.80 kg
Mounting Pattern
600 x 400
730 x 405
Features
No pricing available. Call for Quote.
This display size range is simply a guideline for product selection. Displays larger than the screen size range may still be compatible as long as they fall within the VESA® pattern and max weight of the Peerless-AV® product.
Certifications:
Video walls should be easy to configure, quick to install, and a snap to maintain. No, it's not a dream, it's the DS-VW765-LAND Full-Service Video Wall Mount from Peerless-AV. Create any configuration imaginable, but leave the tedious calculations to the custom wall plate spacers. Just install the first mount. Then use the custom wall plate spacers to perfectly place each additional mount on the wall. No measuring, no guessing, no mistakes. It couldn't be simpler. The innovative design combined with a mount that is ready-to-install right out of the box makes this the fastest installing video wall system ever. Now in a design that is 2% lighter than previous models and loaded with time saving features like no-tool-required micro-adjustments and easy-access to any display for quick serviceability it's the ultimate video wall mounting solution.
General Information | |
|---|---|
| Manufacturer | Peerless Industries, Inc |
| Manufacturer Part Number | DS-VW765LAND |
| Manufacturer Website Address | http://www.peerless-av.eu.com |
| Brand Name | SmartMount® |
| Product Series | DS-VW765-LAND |
| Product Model | DS-VW765-LAND |
| Product Name | Full-Service Video Wall Mount- Landscape for 40" to 65" Displays |
| Marketing Information | Video walls should be easy to configure, quick to install, and a snap to maintain. No, it's not a dream, it's the DS-VW765-LAND Full-Service Video Wall Mount from Peerless-AV. Create any configuration imaginable, but leave the tedious calculations to the custom wall plate spacers. Just install the first mount. Then use the custom wall plate spacers to perfectly place each additional mount on the wall. No measuring, no guessing, no mistakes. It couldn't be simpler. The innovative design combined with a mount that is ready-to-install right out of the box makes this the fastest installing video wall system ever. Now in a design that is 2% lighter than previous models and loaded with time saving features like no-tool-required micro-adjustments and easy-access to any display for quick serviceability it's the ultimate video wall mounting solution. |
| Packaged Quantity | 1 Unit |
| Product Type | Wall Mount |
Product Information | |
|---|---|
| Device Supported | Video Wall |
| Maximum Load Capacity | 56.70 kg |
| Minimum Screen Size Supported | 40" (101.60 cm) |
| Maximum Screen Size Supported | 65" (165.10 cm) |
| Minimum Adjustable Depth | 7.62 cm (3") |
| Maximum Adjustable Depth | 9.73 cm (3.83") |
| Features |
|
| Orientation | Landscape |
| Mount Profile | Flush |
| Mount Function | |
Physical Characteristics | |
|---|---|
| Color Family | Black |
| Product Color | Black |
| Finishing |
|
| VESA Mount Compatible | Yes |
| Mounting Pattern |
|
| Product Material | Steel |
| Form Factor | Wall Mountable |
| Height | 50.80 cm (20") |
| Width | 88.90 cm (35") |
| Depth | 9.73 cm (3.83") |
Miscellaneous | |
|---|---|
| Package Contents |
|
| Certifications & Standards | RoHS, TAA, VESA, UL, OSHPD |
| Manufacturer Product Class | Wall, Manual Pop-out |
| Assembly Required | Yes |
| TAA Compliant | Yes |
| UL Listed | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Warranty | |
|---|---|
| Limited Warranty | 5 Year |
| Video Wall |
| Mount Surface | Wall |
|---|
| Durability | Scratch Resistant |
|---|
| Weight (Approximate) | 14.97 kg |
|---|
