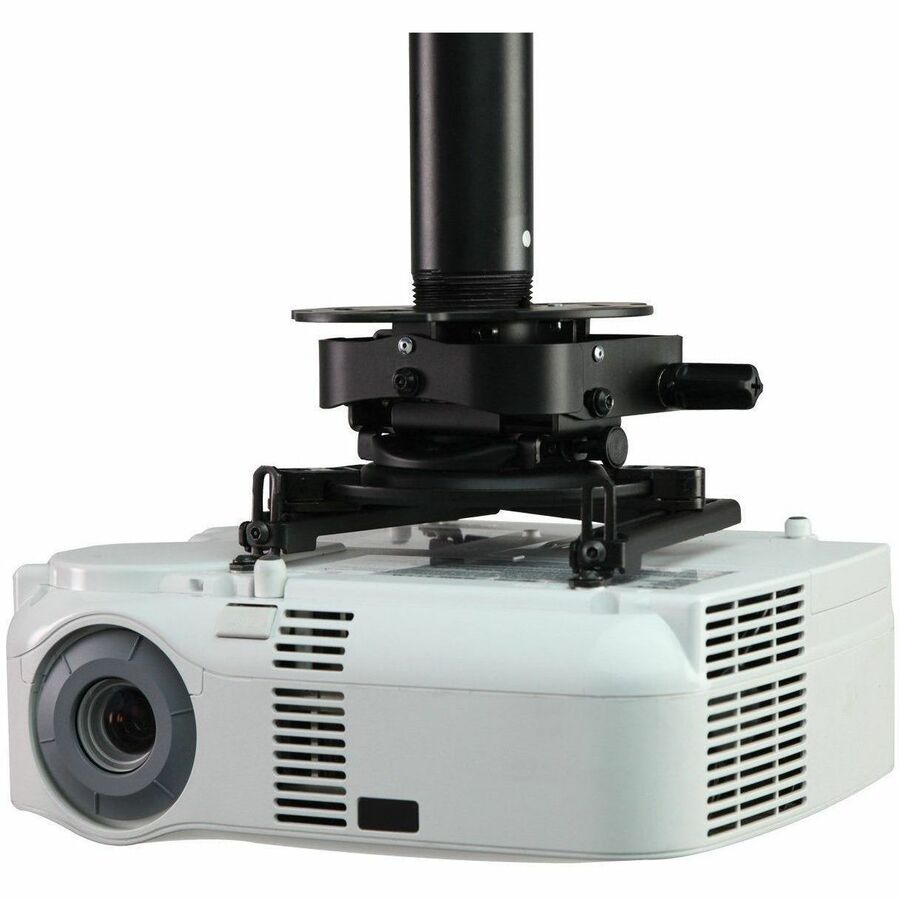

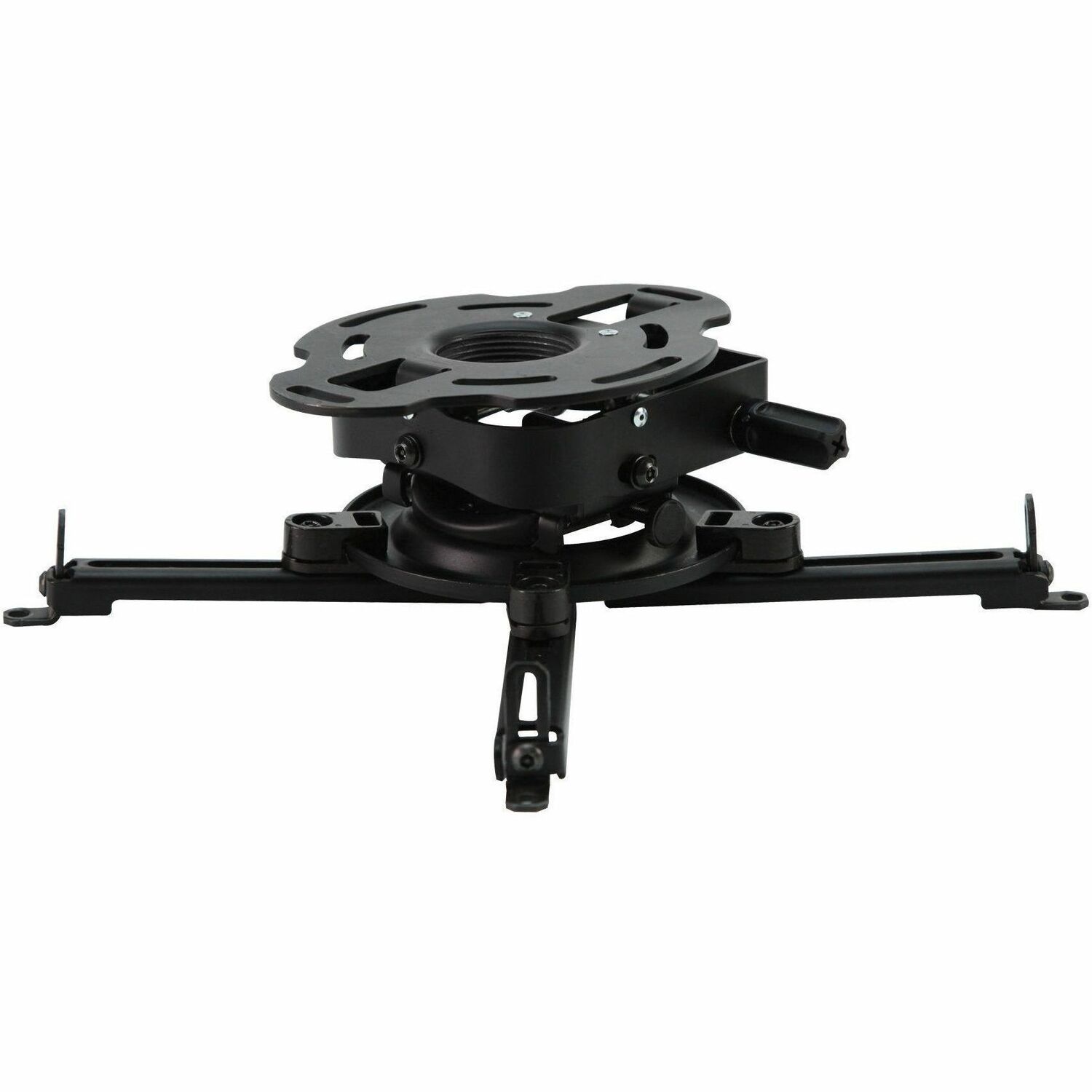

The PRGS Projector Mount simplifies the way image alignment is done. The precision gear design allows exact pitch and roll image positioning by either simply turning two adjustment knobs with a Phillips screw driver, or using the tool-less option by extending the knobs to adjust by hand. Just set the precision gear to the desired position to secure it in place. It will hold its position even during projector maintenance. With Peerless-AV® PRGS Projector Mount, just set it and forget it. No more adjustment screws. No more micro adjustments. No more hassles.
General Information | |
|---|---|
| Manufacturer | Peerless Industries, Inc |
| Manufacturer Part Number | PRGS-UNV |
| Manufacturer Website Address | http://www.peerless-av.eu.com |
| Brand Name | Peerless-AV® |
| Product Series | PRGS-UNV |
| Product Model | PRGS-UNV |
| Product Name | PRGS Projector Mount for Projectors up to 50lb (22kg) |
| Marketing Information | The PRGS Projector Mount simplifies the way image alignment is done. The precision gear design allows exact pitch and roll image positioning by either simply turning two adjustment knobs with a Phillips screw driver, or using the tool-less option by extending the knobs to adjust by hand. Just set the precision gear to the desired position to secure it in place. It will hold its position even during projector maintenance. With Peerless-AV® PRGS Projector Mount, just set it and forget it. No more adjustment screws. No more micro adjustments. No more hassles. |
| Packaged Quantity | 1 Unit |
| Product Type | Ceiling Mount |
Product Information | |
|---|---|
| Device Supported | Projector |
| Maximum Load Capacity | 22.68 kg |
| Maximum Adjustable Height | 44.78 cm (17.63") |
| Maximum Adjustable Width | 11.76 cm (4.63") |
| Minimum Adjustable Depth | 21.59 cm (8.50") |
| Maximum Adjustable Depth | 44.78 cm (17.63") |
| Features |
|
| Mount Pattern | Universal |
| Mount Profile | Low Profile |
| Height Adjustable | Yes |
| Minimum Tilt Angle | -5° |
| Maximum Tilt Angle | 5° |
| Maximum Swivel Angle | 360° |
| Mount Function |
|
| Mount Surface | Ceiling |
| Durability | Tamper Resistant |
Physical Characteristics | |
|---|---|
| Color Family | Black |
| Product Color | Black |
| Finishing | Powder Coated |
| VESA Mount Compatible | Yes |
| Mounting Pattern | 448 x 448 |
| Height | 11.76 cm (4.63") |
| Width | 44.78 cm (17.63") |
| Depth | 44.78 cm (17.63") |
| Weight (Approximate) | 1.94 kg |
Miscellaneous | |
|---|---|
| Package Contents |
|
| Application/Usage |
|
| Indoor/Outdoor | Indoor |
| Certifications & Standards | RoHS, TAA, UL |
| Manufacturer Product Class | Projector Mount Universal |
| Assembly Required | Yes |
| TAA Compliant | Yes |
| UL Listed | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Warranty | |
|---|---|
| Limited Warranty | 5 Year |
PRGS-UNV
The PRGS Projector Mount simplifies the way image alignment is done. The precision gear design allows exact pitch and roll image positioning by either simply turning two adjustment knobs with a Phillips screw driver, or using the tool-less option by extending the knobs to adjust by hand. Just set the precision gear to the desired position to secure it in place. It will hold its position even during projector maintenance. With Peerless-AV® PRGS Projector Mount, just set it and forget it. No more adjustment screws. No more micro adjustments. No more hassles.
No pricing available. Call for Quote.
Product Name
Peerless-AV® PRGS Projector Mount for Projectors up to 50lb (22kg)
Peerless-AV® PRG Precision Projector Mount with Spider® Universal Adaptor Plate For Multimedia Projectors up to 50 lb (22 kg)
Peerless-AV® Heavy Duty Projector Mount
Maximum Load Capacity
22.68 kg
22.68 kg
113.40 kg
Mounting Pattern
448 x 448
-
-
Features
This display size range is simply a guideline for product selection. Displays larger than the screen size range may still be compatible as long as they fall within the VESA® pattern and max weight of the Peerless-AV® product.
Certifications:
