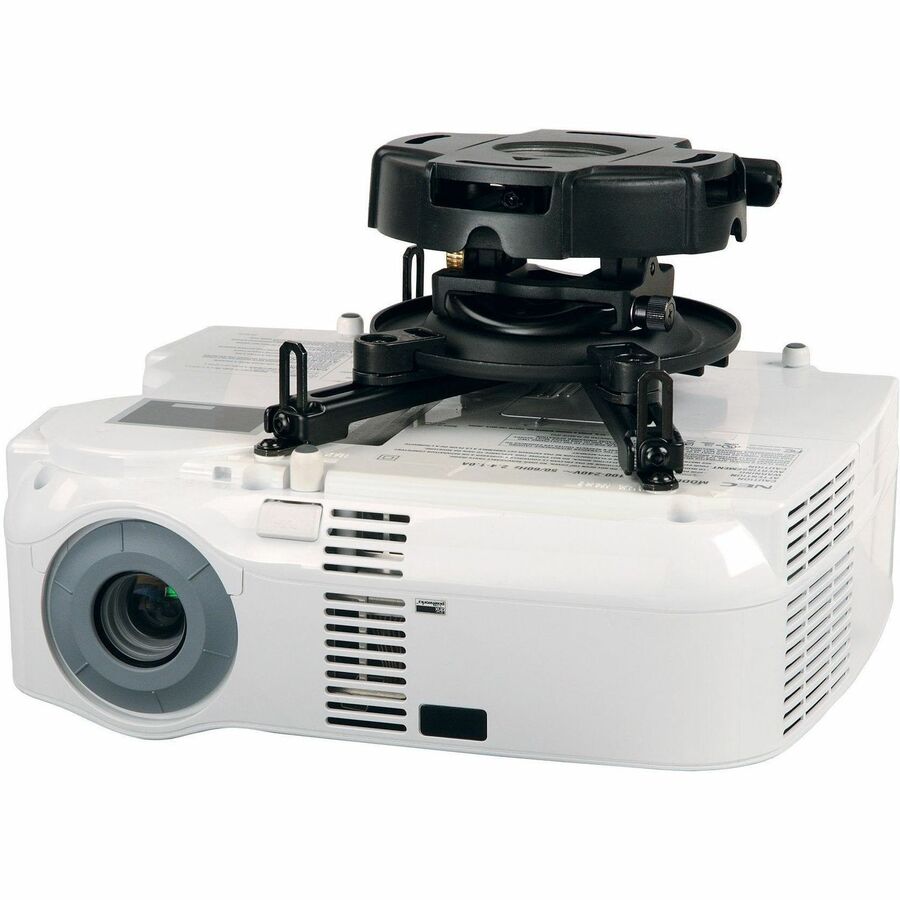

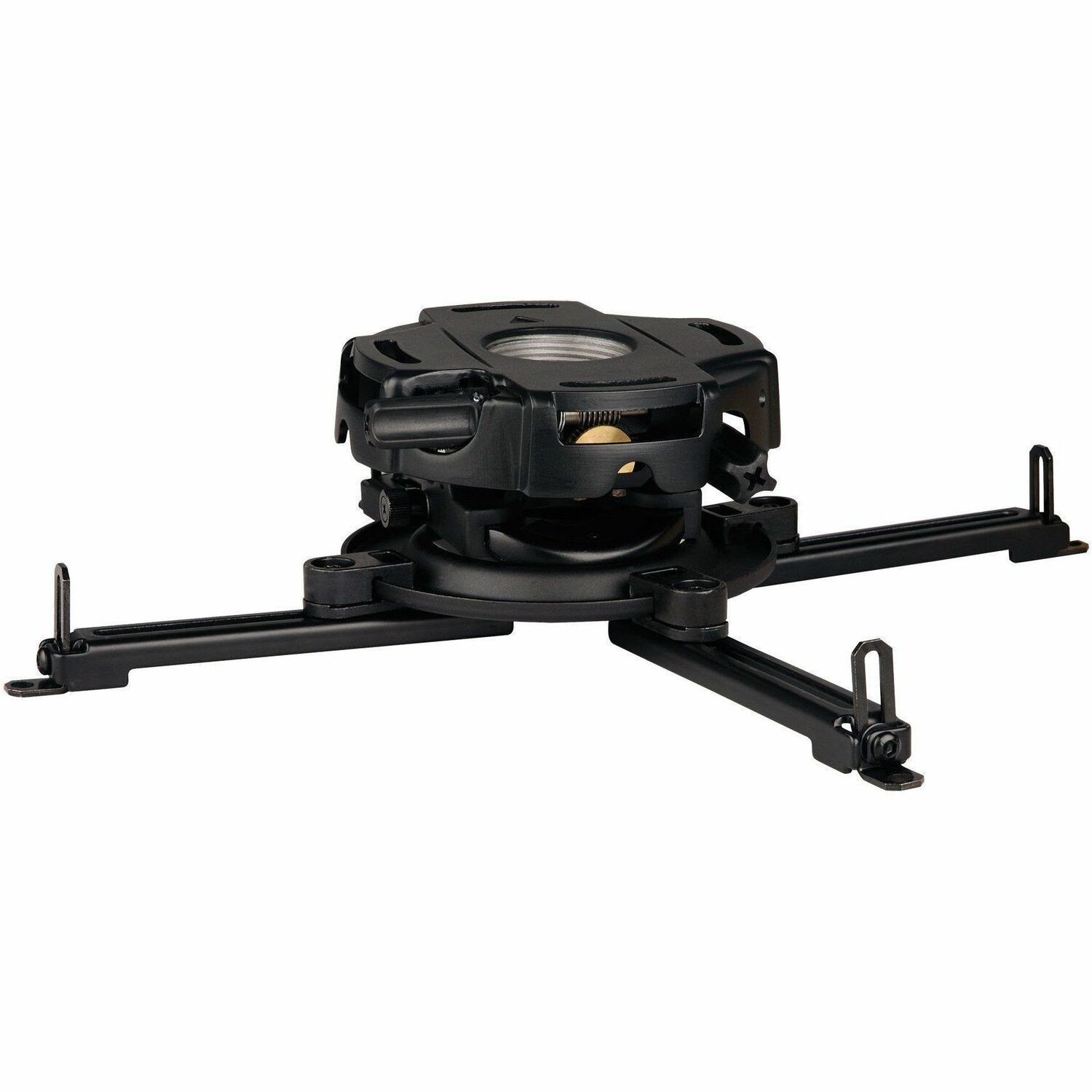

Peerless-AV® PRG Precision Projector Mount with Spider® Universal Adaptor Plate For Multimedia Projectors up to 50 lb (22 kg)
PRG-UNV
Peerless-AV's PRG Precision Gear Projector Mount is simplifying the way image alignment is done. The patent-pending precision gear design allows exact tilt and roll image positioning by either simply turning two adjustment knobs with a Phillips screw driver, or use the tool-less option by extending the knobs to adjust by hand. Just set the precision gear to the desired position to secure it in place - it will hold its position even during projector maintenance. With Peerless-AV' PRG Precision Gear Projector Mount, just set it and forget it. No more adjustment screws. No more micro adjustments. No more hassles. All projectors with M8 mounting screws require ACC-M8RI inserts for compatibility with any Peerless-AV projector mount, please refer to the Recommended Accessories.
No pricing available. Call for Quote.
Certifications:
Product Features
- Specifications: Tilt: ±20°, Roll: ±10°, Swivel: 360° when mounted on extension column ±15° when flush mounted on ceilings
- Pre-installed security screws provide optional tilt and roll lock to prevent tampering with adjustment knobs
- Spider® Universal Adapter Plate extends up to 17.63" (448 mm) to fit most projector models
- Quick-release mechanism to easily service projector
- "U" shaped pitch bracket allows for hassle free cable routing
- Cable management allows cables to be routed through projector mount out of sight
- Horizontal wrench access slots make flush mounting installations fast and easy
- Pre-assembled design reduces installation time
- Two adjustment knobs control projector image alignment
- Patent-pending precision gears provides exact projector image alignment
Product Specifications
General Information
Peerless-AV's PRG Precision Gear Projector Mount is simplifying the way image alignment is done. The patent-pending precision gear design allows exact tilt and roll image positioning by either simply turning two adjustment knobs with a Phillips screw driver, or use the tool-less option by extending the knobs to adjust by hand. Just set the precision gear to the desired position to secure it in place - it will hold its position even during projector maintenance. With Peerless-AV' PRG Precision Gear Projector Mount, just set it and forget it. No more adjustment screws. No more micro adjustments. No more hassles. All projectors with M8 mounting screws require ACC-M8RI inserts for compatibility with any Peerless-AV projector mount, please refer to the Recommended Accessories.
General Information | |
|---|---|
| Manufacturer | Peerless Industries, Inc |
| Manufacturer Part Number | PRG-UNV |
| Manufacturer Website Address | http://www.peerless-av.eu.com |
| Brand Name | Peerless-AV® |
| Product Line | Precision Gear |
| Product Series | PRG-UNV |
| Product Model | PRG-UNV |
| Product Name | PRG Precision Gear Projector Mount |
| Marketing Information | Peerless-AV's PRG Precision Gear Projector Mount is simplifying the way image alignment is done. The patent-pending precision gear design allows exact tilt and roll image positioning by either simply turning two adjustment knobs with a Phillips screw driver, or use the tool-less option by extending the knobs to adjust by hand. Just set the precision gear to the desired position to secure it in place - it will hold its position even during projector maintenance. With Peerless-AV' PRG Precision Gear Projector Mount, just set it and forget it. No more adjustment screws. No more micro adjustments. No more hassles. All projectors with M8 mounting screws require ACC-M8RI inserts for compatibility with any Peerless-AV projector mount, please refer to the Recommended Accessories. |
| Packaged Quantity | 1 Unit |
| Product Type | Ceiling Mount |
Product Information
- Tilt
- 360° Swivel
- Lockable
- Cable Management
- Quick Release Mechanism
- Extendable
- Swivel
- Tilt
- Lockable
- Cable Management
- Extendable
- Tamper Resistant
- Scratch Resistant
Product Information | |
|---|---|
| Device Supported | Projector |
| Maximum Load Capacity | 22.68 kg |
| Maximum Adjustable Height | 5.44 cm (2.14") |
| Minimum Adjustable Depth | 21.59 cm (8.50") |
| Maximum Adjustable Depth | 44.78 cm (17.63") |
| Features |
|
| Mount Pattern | Universal |
| Height Adjustable | Yes |
| Minimum Tilt Angle | -20° |
| Maximum Tilt Angle | 20° |
| Maximum Swivel Angle | 360° |
| Mount Function |
|
| Mount Surface | Ceiling |
| Durability |
|
Physical Characteristics
- Powder Coated
- Fused Epoxy
Physical Characteristics | |
|---|---|
| Color Family | Black |
| Product Color | Black |
| Finishing |
|
| Form Factor | Ceiling Mountable |
| Height | 12.22 cm (4.81") |
| Width | 44.78 cm (17.63") |
| Depth | 44.78 cm (17.63") |
| Weight (Approximate) | 1.40 kg |
Miscellaneous
- PRG Precision Gear Projector Mount
- Spider Universal Adaptor Plate
- Mounting and Projector Attachment Hardware
- Assembly Instructions
- Ceiling
- Flush
Miscellaneous | |
|---|---|
| Package Contents |
|
| Application/Usage |
|
| Indoor/Outdoor | Indoor |
| Certifications & Standards | RoHS, TAA, UL |
| Manufacturer Product Class | Projector Mount Universal |
| Assembly Required | Yes |
| TAA Compliant | Yes |
| UL Listed | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Warranty
Warranty | |
|---|---|
| Limited Warranty | 5 Year |
