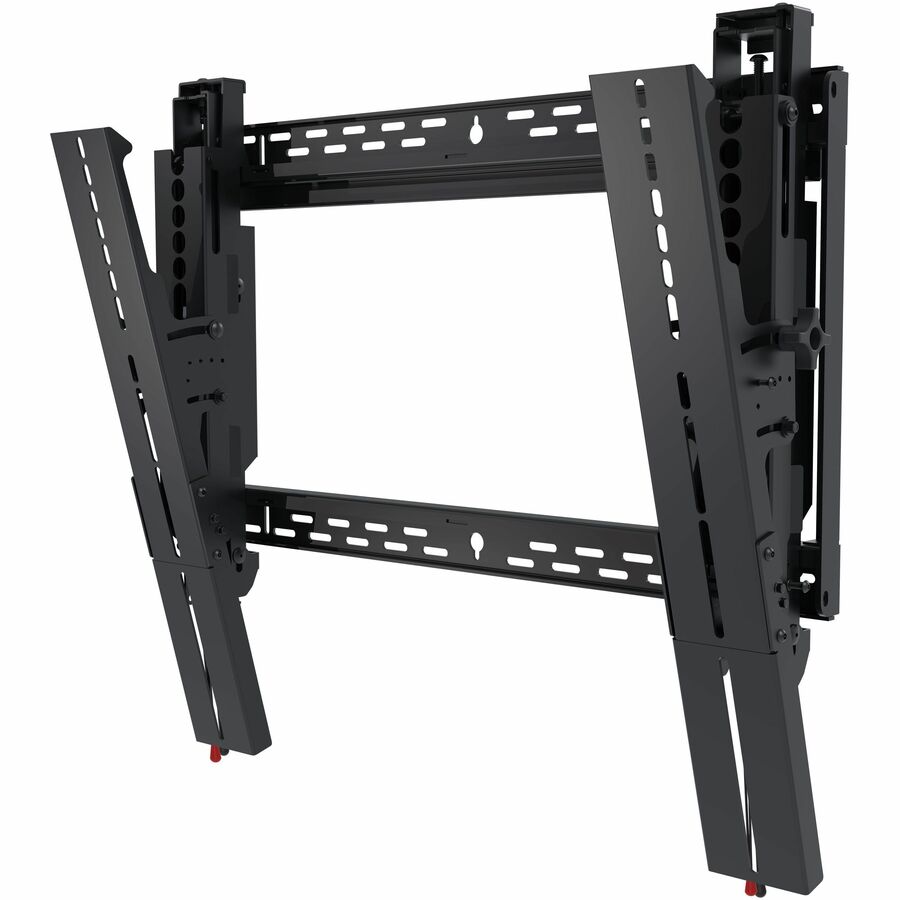

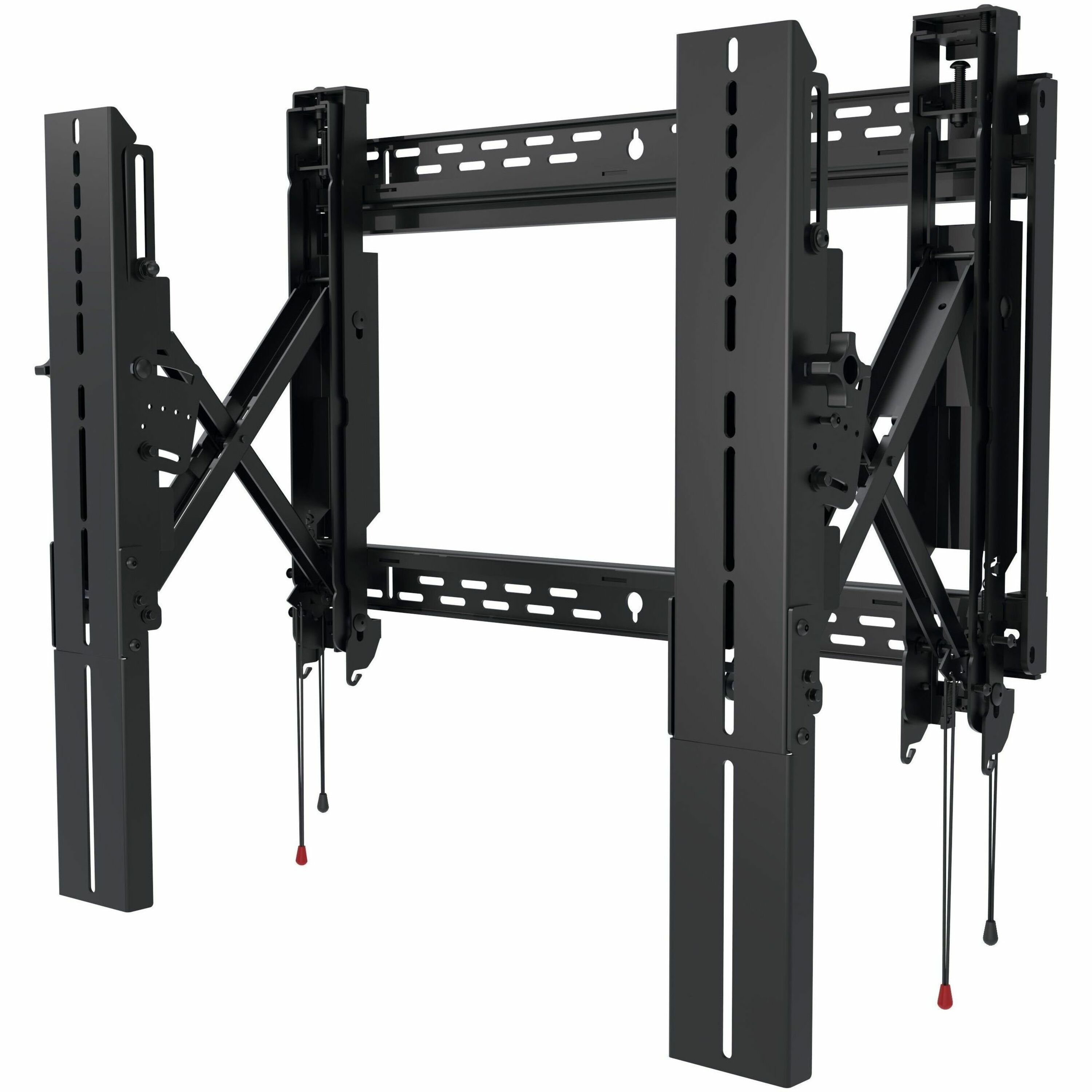

Peerless-AV® SmartMount® Universal Scissor Wall Mount for 39" to 85"+ Displays

STS650

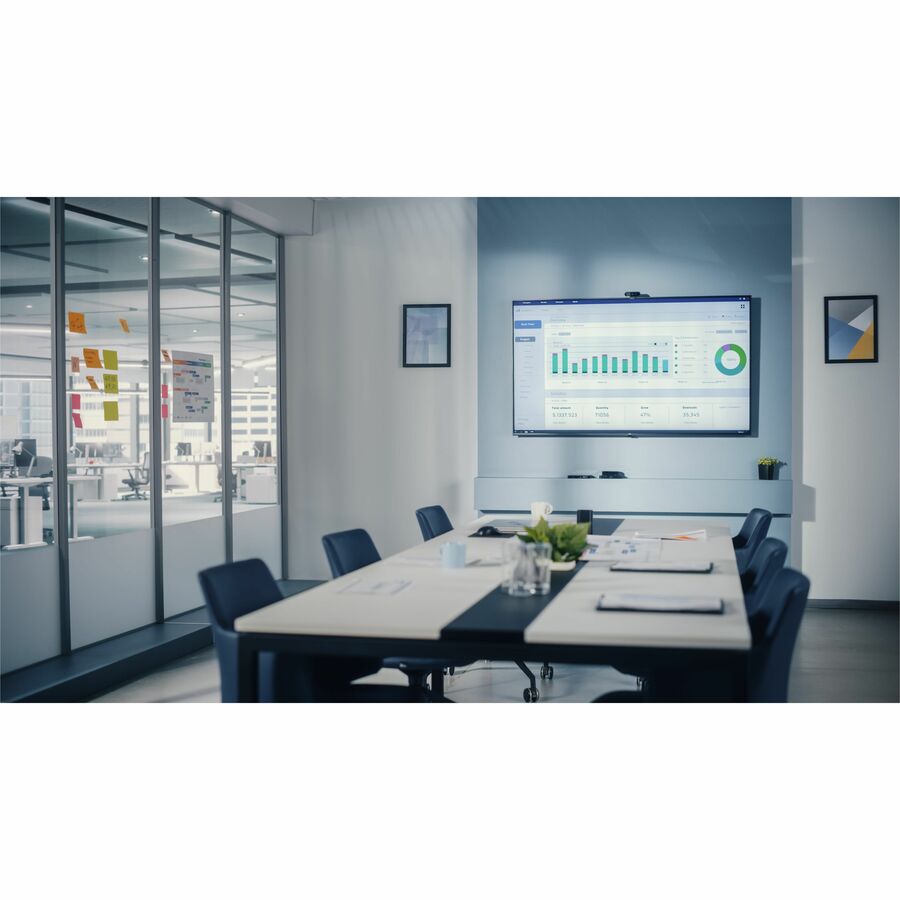

Peerless-AV's SmartMount® Universal Scissor Wall Mount is the optimal mounting solution for UC/VC applications and recessed walls as the STS650 allows for convenient access to components stored behind the display. The STS650's extendable adaptors allow the display to be pulled 12" (305 mm) from the wall to easily access the back of the display, and can be locked into place when the installation or maintenance is completed. Installation of the display is a breeze with the Hook-and-Hang™ feature, and the mount's open access design provides the maximum open area on the wall to allow flexible placement for outlets and/or in-wall boxes. Post-installation leveling and side-to-side adjustability features allow for fine tuning of the mounted display for the perfect position in any corporate conference room, digital signage application or hospitality setting.

Check if your display is compatible

Powered by MountFinder™

Product Features

Display is easily installed by a single person with the Hook-and-Hang™ feature
Open access provides the maximum open area on the wall to allow flexible placement for outlets and/or in-wall boxes (IB14X9-W)
Post-installation leveling and side-to-side adjustability features allow fine tuning of the mounted display for the perfect display positioning
IncreLok™ tilt technology allows the user to lock the tilt angle for the perfect view and prevent tampering or undesired adjustment
Automatic spring locks with quick release cords simplify the installation and removal of the display
Display can be pulled 12" (305mm) from the wall to access components and the back of the display with the extendable adaptors
3.82"-12.00" (97-305mm) display extension allows for post-installation servicing and component storage behind display
Universal mount fits displays with mounting patterns 200 x 100 to 600 x 400mm (600 x 600mm with included bolt-on extenders)
Adjustable up to 15° of forward tilt and -2° of backward tilt for the optimal viewing angle

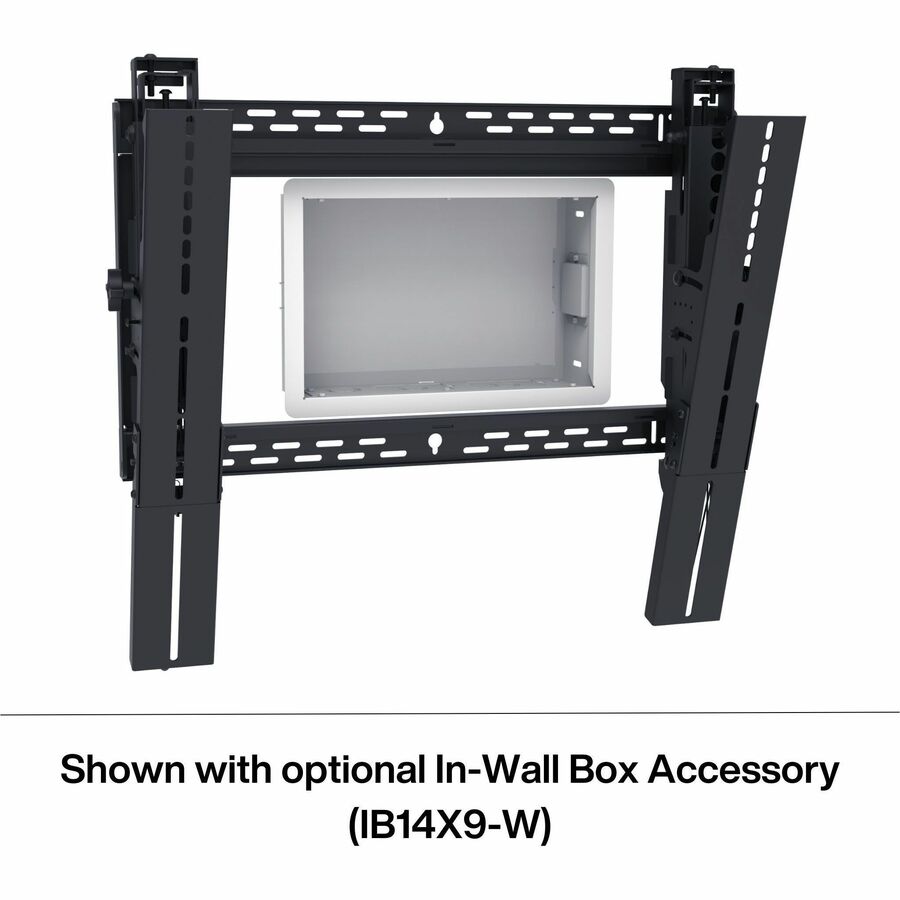

Menu board style wall plate with open frame design (compatible with IB14X9-W In-Wall Box)
Center keyhole for easy leveling and installation

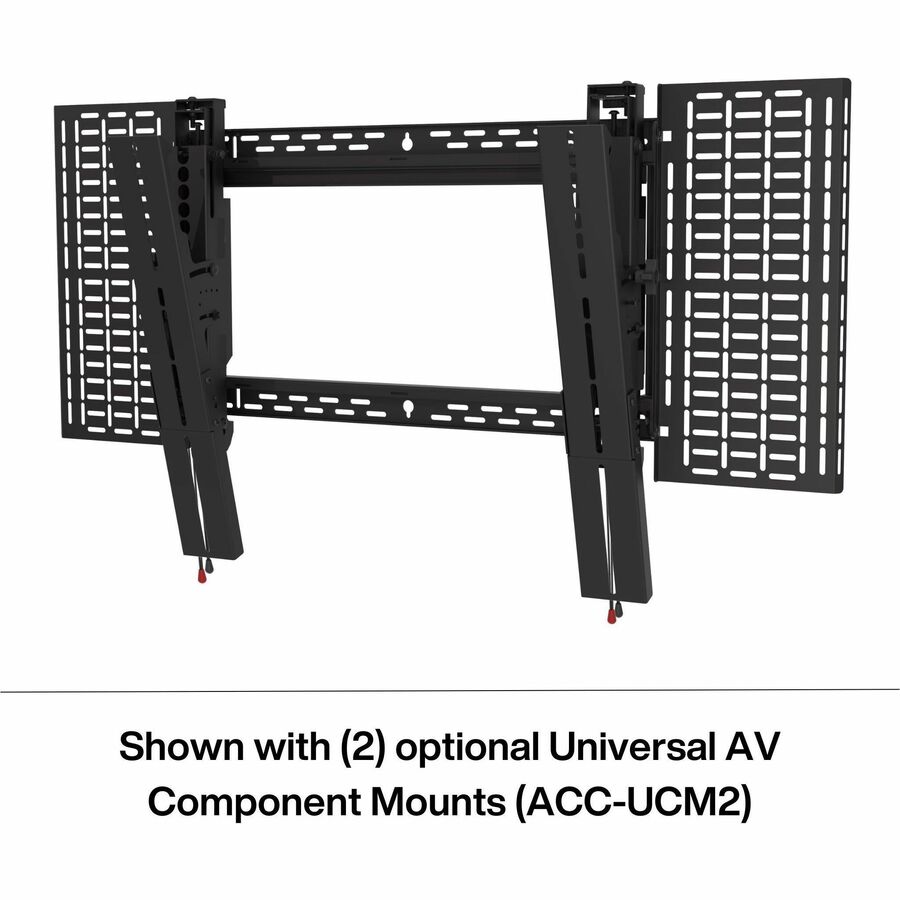

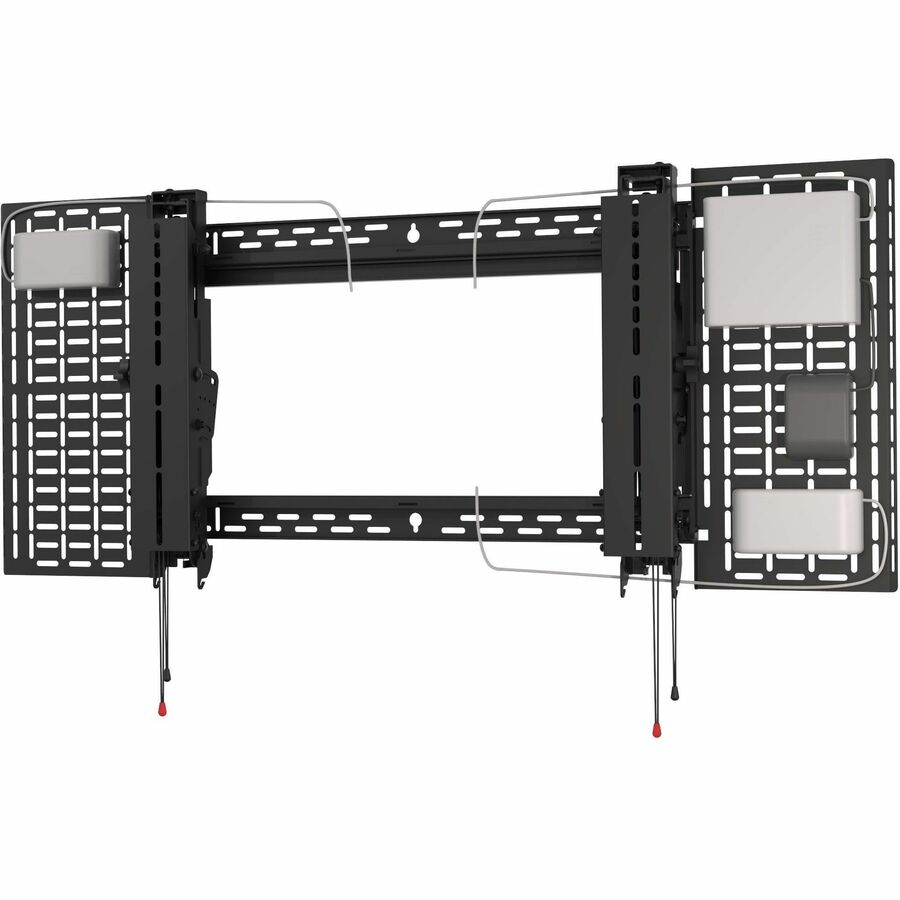

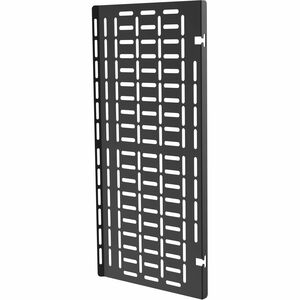

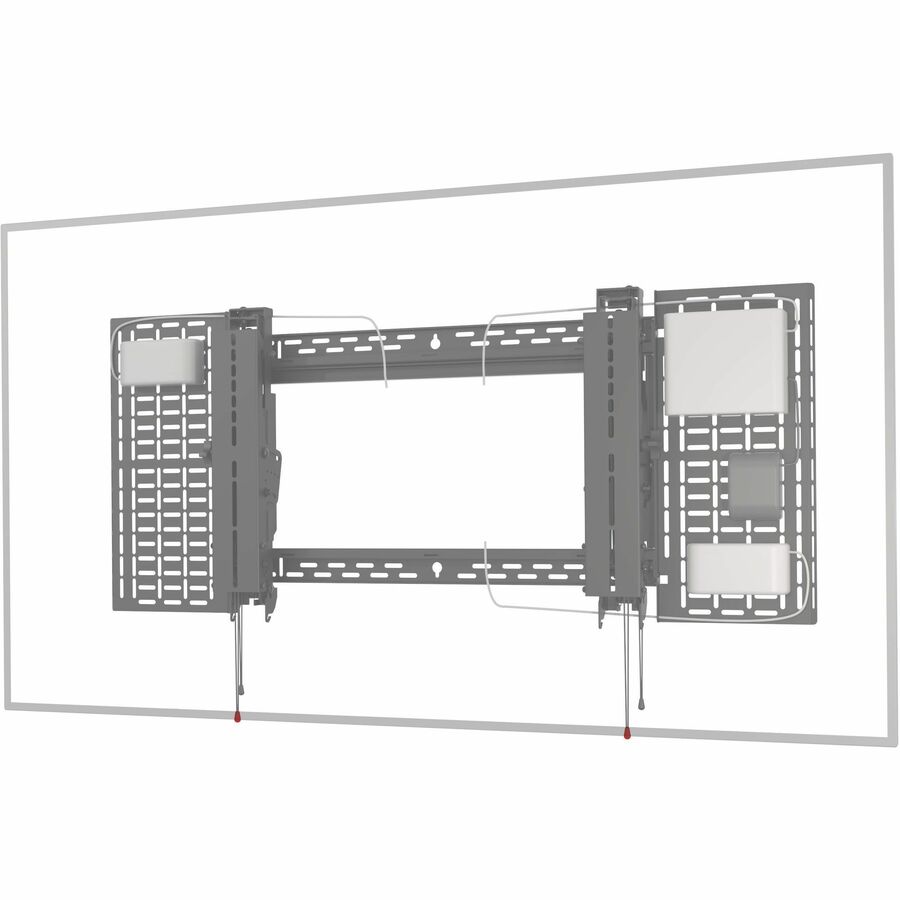

Optional Accessory: Universal AV Component Mount (ACC-UCM2) allows components to be installed, configured and cabled off-site, and quickly attaches to the mount which reduces on-site installation time

Product Specifications

General Information

Manufacturer

Peerless Industries, Inc

Manufacturer Part Number

STS650

Manufacturer Website Address

http://www.peerless-av.eu.com

Brand Name

SmartMount®

Product Series

STS650

Product Model

STS650

Product Name

Universal Scissor Wall Mount for 39" to 85"+ Displays

Marketing Information

Peerless-AV's SmartMount® Universal Scissor Wall Mount is the optimal mounting solution for UC/VC applications and recessed walls as the STS650 allows for convenient access to components stored behind the display. The STS650's extendable adaptors allow the display to be pulled 12" (305 mm) from the wall to easily access the back of the display, and can be locked into place when the installation or maintenance is completed. Installation of the display is a breeze with the Hook-and-Hang™ feature, and the mount's open access design provides the maximum open area on the wall to allow flexible placement for outlets and/or in-wall boxes. Post-installation leveling and side-to-side adjustability features allow for fine tuning of the mounted display for the perfect position in any corporate conference room, digital signage application or hospitality setting.

General Information
Manufacturer	Peerless Industries, Inc
Manufacturer Part Number	STS650
Manufacturer Website Address	http://www.peerless-av.eu.com
Brand Name	SmartMount®
Product Series	STS650
Product Model	STS650
Product Name	Universal Scissor Wall Mount for 39" to 85"+ Displays
Marketing Information	Peerless-AV's SmartMount® Universal Scissor Wall Mount is the optimal mounting solution for UC/VC applications and recessed walls as the STS650 allows for convenient access to components stored behind the display. The STS650's extendable adaptors allow the display to be pulled 12" (305 mm) from the wall to easily access the back of the display, and can be locked into place when the installation or maintenance is completed. Installation of the display is a breeze with the Hook-and-Hang™ feature, and the mount's open access design provides the maximum open area on the wall to allow flexible placement for outlets and/or in-wall boxes. Post-installation leveling and side-to-side adjustability features allow for fine tuning of the mounted display for the perfect position in any corporate conference room, digital signage application or hospitality setting. More from the Manufacturer
Packaged Quantity	1 Unit
Product Type	Wall Mount

Product Information

Device Supported

Electrical Outlet
In-Wall Storage Box
Display

Maximum Load Capacity

90.72 kg

Minimum Screen Size Supported

39" (99.06 cm)

Maximum Screen Size Supported

85" (215.90 cm)

Minimum Adjustable Depth

9.70 cm (3.82")

Maximum Adjustable Depth

30.48 cm (12")

Features

Hook-and-Hang Design
Interlocking
Spring Lock
Easy to Install
Leveling System
15° Forward Tilt
Adjustable Depth
Extendable
Increlock

Mount Pattern

Universal

Mount Profile

Recessed

Height Adjustable

Yes

Minimum Tilt Angle

-2°

Maximum Tilt Angle

15°

Mount Function

Adjustable
Tilt
Wall Mount

Mount Surface

Wall

Durability

Tamper Resistant
Scratch Resistant

Product Information
Device Supported	Electrical Outlet In-Wall Storage Box Display
Maximum Load Capacity	90.72 kg
Minimum Screen Size Supported	39" (99.06 cm)
Maximum Screen Size Supported	85" (215.90 cm)
Minimum Adjustable Depth	9.70 cm (3.82")
Maximum Adjustable Depth	30.48 cm (12")
Features	Hook-and-Hang Design Interlocking Spring Lock Easy to Install Leveling System 15° Forward Tilt Adjustable Depth Extendable Increlock
Mount Pattern	Universal
Mount Profile	Recessed
Height Adjustable	Yes
Minimum Tilt Angle	-2°
Maximum Tilt Angle	15°
Mount Function	Adjustable Tilt Wall Mount
Mount Surface	Wall
Durability	Tamper Resistant Scratch Resistant

Physical Characteristics

Color Family

Black

Product Color

Semi-gloss Black

Finishing

Fused Epoxy

VESA Mount Compatible

Yes

Mounting Pattern

200 x 100
200 x 200
300 x 200
300 x 300
400 x 200
400 x 300
400 x 400
600 x 400
600 x 600

Form Factor

Wall Mountable

Height

68.33 cm (26.90")

Width

73.25 cm (28.84")

Depth

30.48 cm (12")

Weight (Approximate)

16.10 kg

Physical Characteristics
Color Family	Black
Product Color	Semi-gloss Black
Finishing	Fused Epoxy
VESA Mount Compatible	Yes
Mounting Pattern	200 x 100 200 x 200 300 x 200 300 x 300 400 x 200 400 x 300 400 x 400 600 x 400 600 x 600
Form Factor	Wall Mountable
Height	68.33 cm (26.90")
Width	73.25 cm (28.84")
Depth	30.48 cm (12")
Weight (Approximate)	16.10 kg

Miscellaneous

Package Contents

Universal Scissor Wall Mount for 39" to 85"+ Displays
Wall Installation Hardware
Display Installation Hardware
Installation Instructions

Application/Usage

Conference Room
Hospitality
Display
Digital Signage
Wall

Compatibility

Peerless-AV IB14X9-W 14 x 9" In-Wall Box

Certifications & Standards

RoHS, TAA, VESA, UL

Manufacturer Product Class

Tilt

Assembly Required

Yes

TAA Compliant

Yes

UL Listed

Yes

Environmental Compliance

Restriction of Hazardous Substances (RoHS)

Miscellaneous
Package Contents	Universal Scissor Wall Mount for 39" to 85"+ Displays Wall Installation Hardware Display Installation Hardware Installation Instructions
Application/Usage	Conference Room Hospitality Display Digital Signage Wall
Compatibility	Peerless-AV IB14X9-W 14 x 9" In-Wall Box
Certifications & Standards	RoHS, TAA, VESA, UL
Manufacturer Product Class	Tilt
Assembly Required	Yes
TAA Compliant	Yes
UL Listed	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
