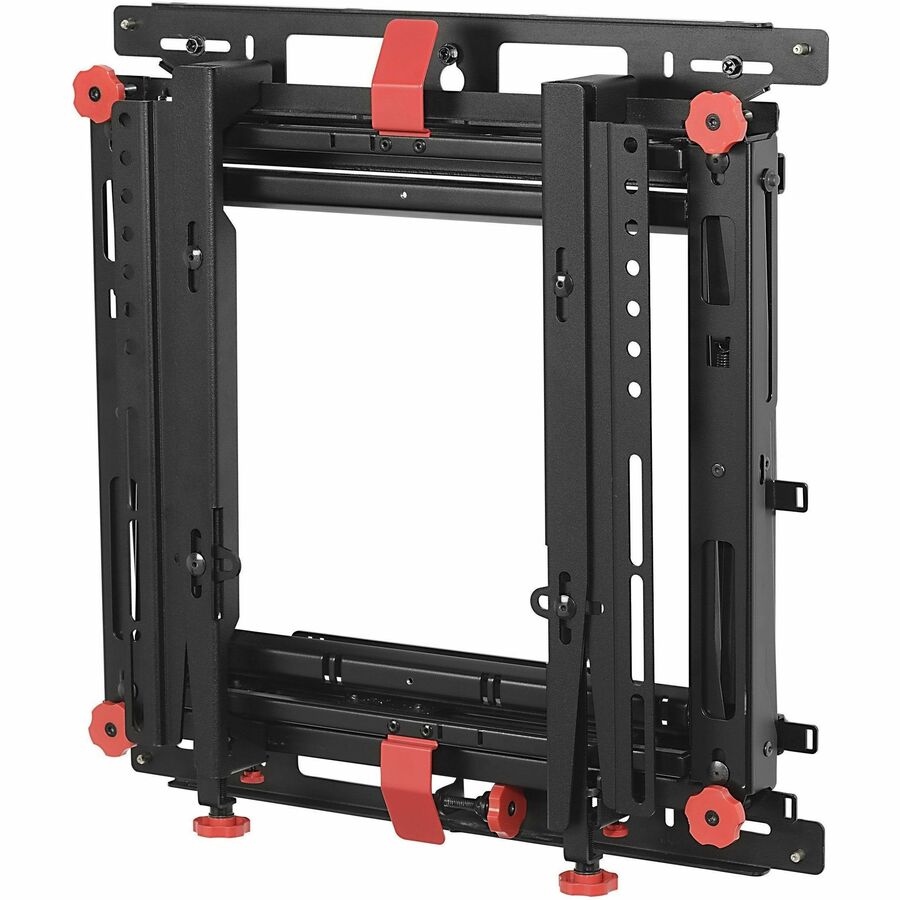

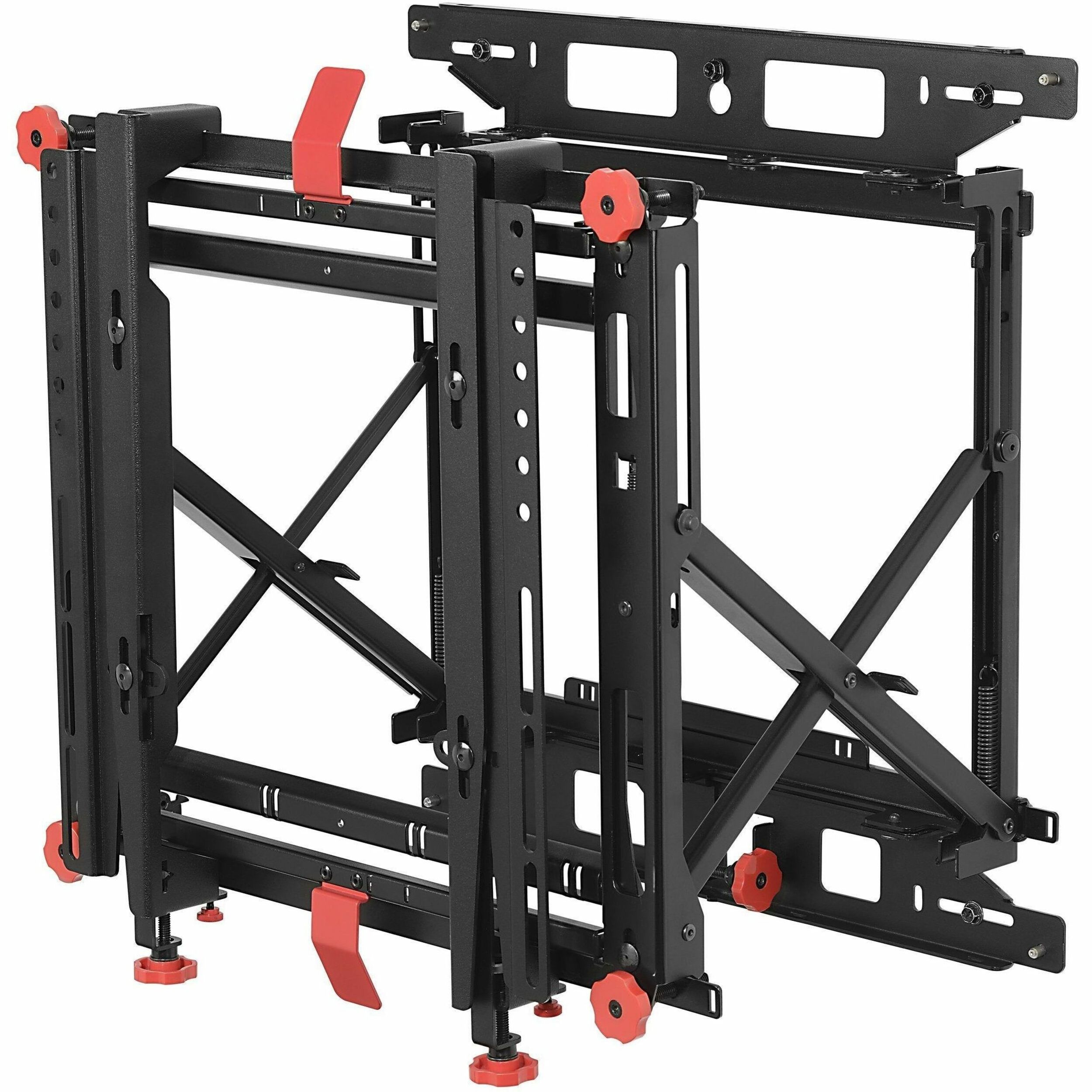

Peerless-AV® SmartMount™ Supreme Full Service Video Wall Mount for 46" to 60" displays
DS-VW775

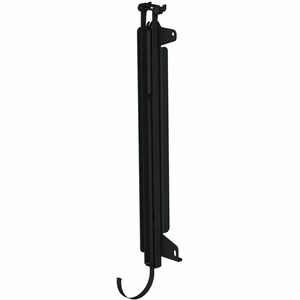

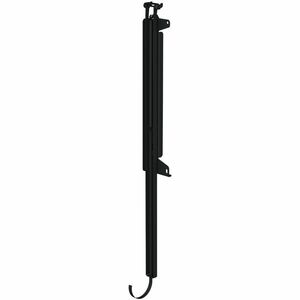

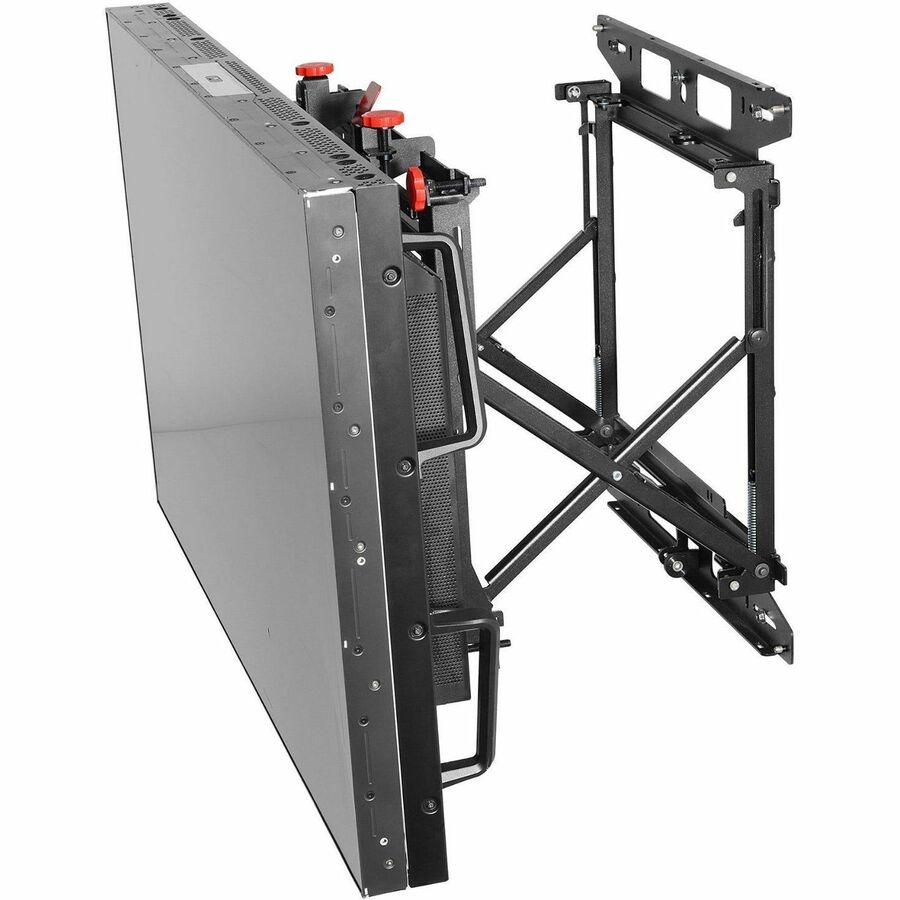

Peerless-AV's Supreme Full Service Video Wall Mount raises the bar of excellence with anenhanced feature set centered on ease of install and display alignment. With the additionof tool-less lateral micro-adjustment, the Supreme offers 1.5" of fine tune adjustmenton each of the X, Y and Z axis. Serviceability is easier than ever before with single handpop-out release features on the top and bottom of the mount. Reusable spacers can beused for both portrait and landscape applications resulting in a faster install and lowercost. Enhanced cable management allows the cables to effortlessly travel in and outwith the display, while the quick release accessory provides quick access in recessedapplications without risking display damage or searching for hidden pull strings.
This display size range is simply a guideline for product selection. Displays larger than the screen size range may still be compatible as long as they fall within the VESA® pattern and max weight of the Peerless-AV® product.
No pricing available. Call for Quote.
Certifications:
Check if your display is compatible
Powered by MountFinder™
Product Features
- Accommodates displays in Landscape and Portrait orientation
- Integrated cable management allow cables to move in and out with the display

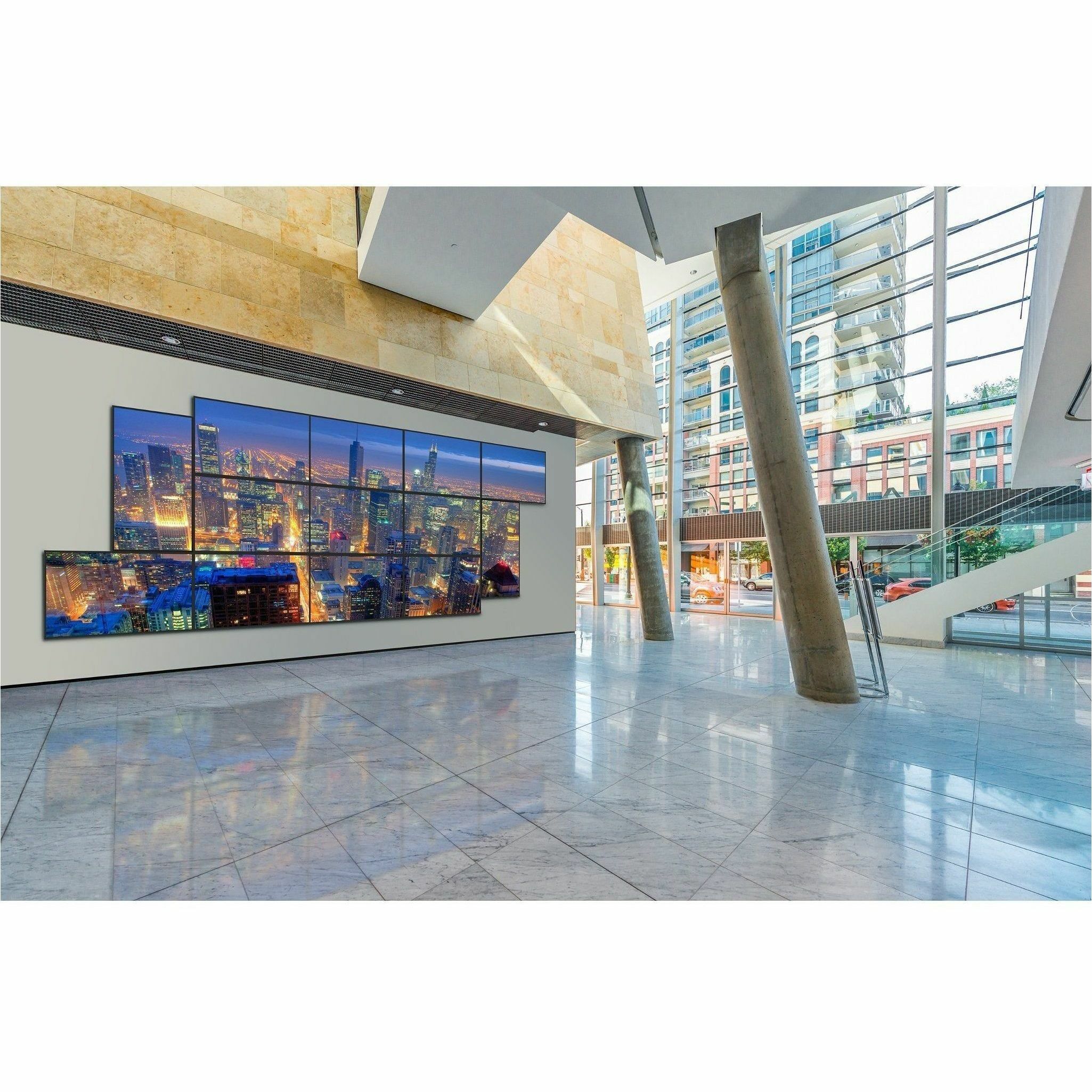

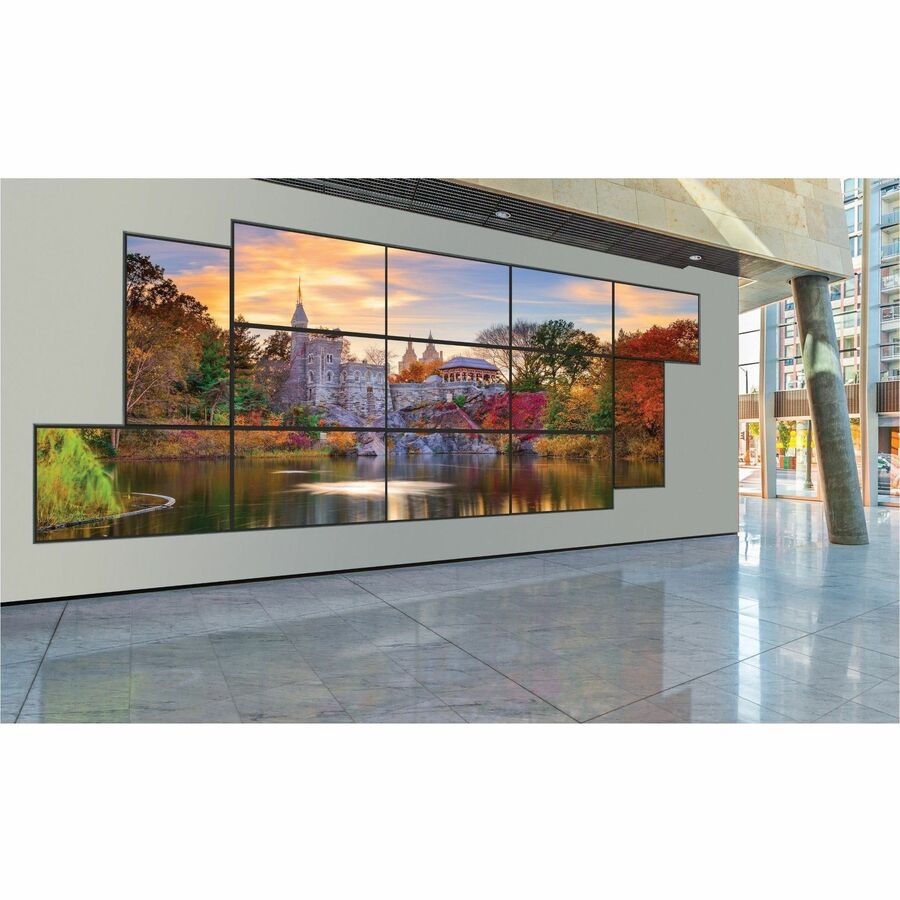

- Modular mount for unlimited video wall display configurations
- Security hardware option deters tapering and theft
- Compatible up to VESA 600 x400mm
Product Specifications
General Information
Peerless-AV's Supreme Full Service Video Wall Mount raises the bar of excellence with anenhanced feature set centered on ease of install and display alignment. With the additionof tool-less lateral micro-adjustment, the Supreme offers 1.5" of fine tune adjustmenton each of the X, Y and Z axis. Serviceability is easier than ever before with single handpop-out release features on the top and bottom of the mount. Reusable spacers can beused for both portrait and landscape applications resulting in a faster install and lowercost. Enhanced cable management allows the cables to effortlessly travel in and outwith the display, while the quick release accessory provides quick access in recessedapplications without risking display damage or searching for hidden pull strings.
General Information | |
|---|---|
| Manufacturer | Peerless Industries, Inc |
| Manufacturer Part Number | DS-VW775 |
| Manufacturer Website Address | http://www.peerless-av.eu.com |
| Brand Name | SmartMount® |
| Product Series | DS-VW775 |
| Product Model | DS-VW775 |
| Product Name | Supreme Full Service Video Wall Mount for 46" to 60" displays |
| Marketing Information | Peerless-AV's Supreme Full Service Video Wall Mount raises the bar of excellence with anenhanced feature set centered on ease of install and display alignment. With the additionof tool-less lateral micro-adjustment, the Supreme offers 1.5" of fine tune adjustmenton each of the X, Y and Z axis. Serviceability is easier than ever before with single handpop-out release features on the top and bottom of the mount. Reusable spacers can beused for both portrait and landscape applications resulting in a faster install and lowercost. Enhanced cable management allows the cables to effortlessly travel in and outwith the display, while the quick release accessory provides quick access in recessedapplications without risking display damage or searching for hidden pull strings. |
| Packaged Quantity | 1 Unit |
| Product Type | Wall Mount |
Product Information
- Video Wall
- Display
- Cable Management
- Quick Release Mechanism
- Tool-less Micro-Adjustment
- 3-axis
- Easy to Install
- Tamper Resistant
- Theft Resistant
Product Information | |
|---|---|
| Device Supported |
|
| Maximum Load Capacity | 56.70 kg |
| Minimum Screen Size Supported | 46" (116.84 cm) |
| Maximum Screen Size Supported | 60" (152.40 cm) |
| Minimum Adjustable Depth | 7.87 cm (3.10") |
| Maximum Adjustable Depth | 37.34 cm (14.70") |
| Features |
|
| Orientation | Landscape/Portrait |
| Mount Profile | Recessed |
| Mount Function | Cable Management |
| Mount Surface | Wall |
| Durability |
|
Physical Characteristics
- 400 x 400
- 300 x 200
- 300 x 300
- 400 x 300
- 200 x 200
- 600 x 400
Physical Characteristics | |
|---|---|
| Color Family | Black |
| Product Color | Black |
| Finishing | Textured Powder Coated |
| VESA Mount Compatible | Yes |
| Mounting Pattern |
|
| Form Factor | Wall Mountable |
| Height | 54.51 cm (21.46") |
| Width | 53.98 cm (21.25") |
| Depth | 37.52 cm (14.77") |
| Weight (Approximate) | 13.74 kg |
Miscellaneous
- Supreme Full Service Video Wall Mount for 46" to 60" Displays

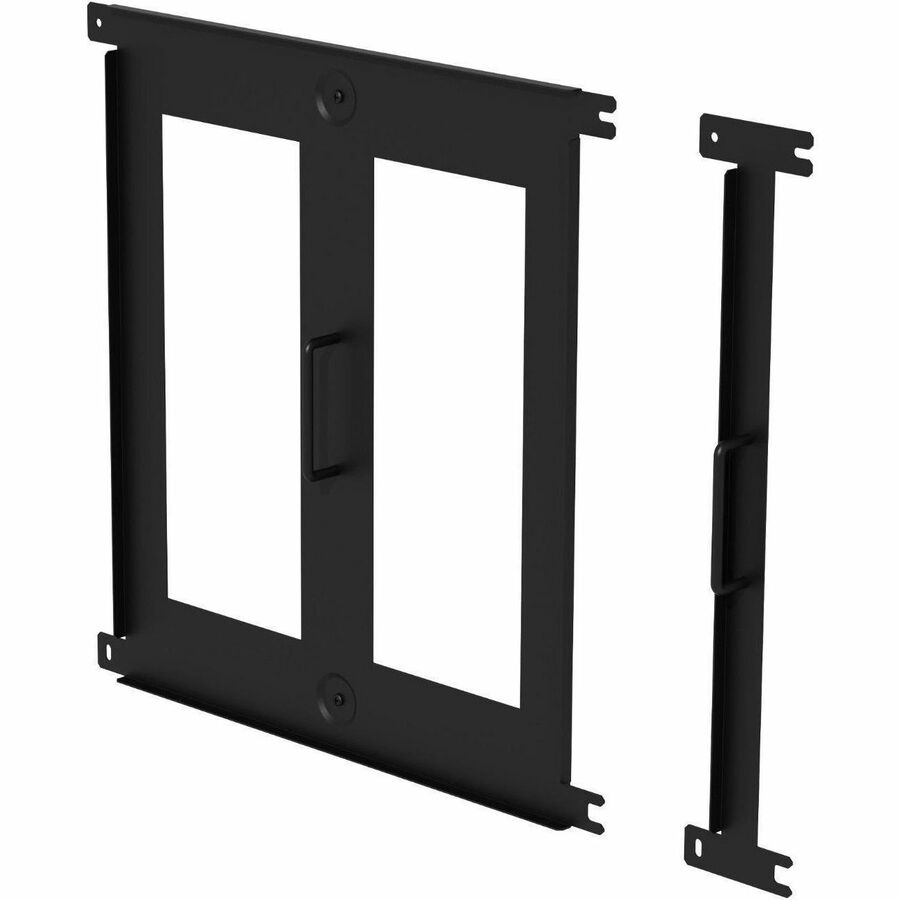

- Adaptor Rails
- Mounting Hardware
Miscellaneous | |
|---|---|
| Package Contents |
|
| Indoor/Outdoor | Indoor |
| Certifications & Standards | RoHS, TAA, VESA, UL |
| Manufacturer Product Class | Wall, Manual Pop-out |
| Assembly Required | Yes |
| TAA Compliant | Yes |
| UL Listed | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Warranty
Warranty | |
|---|---|
| Limited Warranty | 5 Year |
